Murr elektronik 7000123816330500 m12 female angle with cable

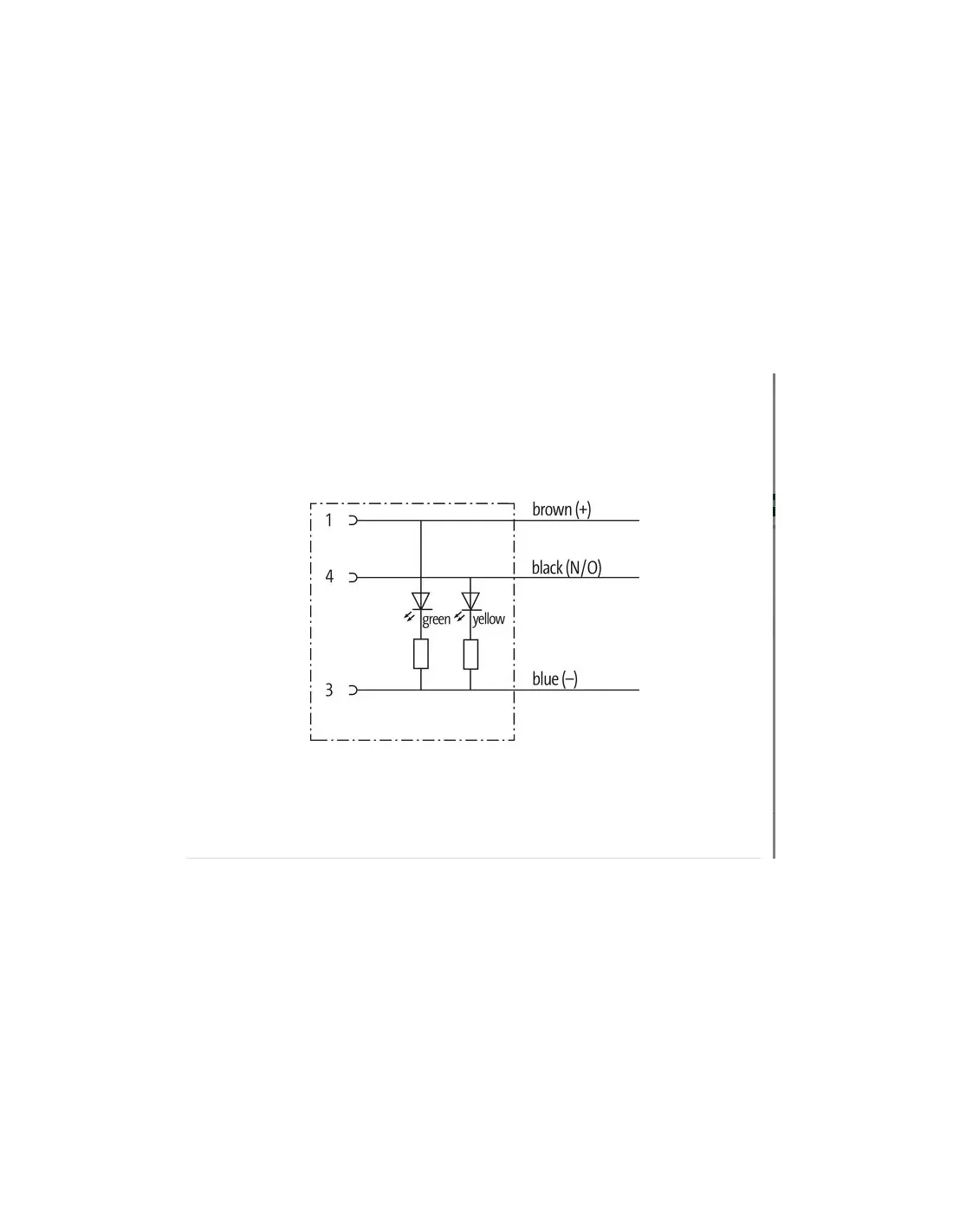

TECHNICAL DATA Operating voltage 24 V DC ±25% Operating voltage (UL listed only) 30 V DC Rated peak voltage 0 8 kV Operating current per contact max 4 A Material group IEC 60664-1, category I Coding A-code LED indicator (yellow//green) Connector locking Thread (M12×1 mm) tightening torque 0 6 Nm) self-locking M12 cable gland (SW13) Degree of protection IP65, IP66K, IP67 with connector inserted and locked (EN 60529) Material PUR Clamping device material Die-cast zinc, matt nickel-plated Suitable for conduit (internal Ø) 10 mm GENERAL DATA Standards DIN EN 61076-2-101 (M12) Type of fastening inserted, locked Material (clamps) Copper alloy Material (surface contact) Au Material (seal) FKM Pollution degree 3 Stripping length (jacket) 20 mm Temperature range -25 85 °C, depending on cable quality CABLES Cable identification 633 Cable type 3 (PUR) Certifications (cable) cURus (AWM-Style 20549//10493); CE compliant Cable weight [G//m] 29.7 g Material (cable) Copper cable, exposed Resistance (conductor) max 57 O//km (20 °C) Ø rigid wire (conductor) 0 1 mm Structure (conductor) 42× 0 1 mm (class 6 multi-core wire) Diameter (conductor) 3× 0 34 mm² AWG similar to AWG 22 Material (wire insulation) PP Material properties (wire insulation) Free of CFCs, halogens, cadmium, silicone and lead Shore hardness (wire insulation) 70 ±5 D Wire Ø incl. insulation 1 25 mm ±5% Color//number of wires ma, ne, bl Wire combination 3 twisted wires Shielding no Material (jacket) PUR Material properties (jacket) Free CFC, halogens, cadmium, silicone and lead, opaque, low tack, easy to process, abrasion resistant, resistant to hydrolysis and microbes Hardness (coating) 90 ±5 A External Ø (coating) 4 1 mm ±5% Color ( coating) black Chemical resistance good resistance to oils, petrol and chemicals (EN 60811-404) Nominal voltage 300 V AC Test voltage 2500 V AC Current load according to DIN VDE 0298-4 Temperature range (fixed) -40 80 ° C, ( 90 °C at max 10 000 operating hours) Temperature range (mobile) -25 80 °C, ( 90 °C at max 10 000 operating hours) bending radius (fixed) 5× external Ø Bending radius (cabinet) 10× external Ø N of cycles (cable carrier) max 10 Mio (25 °C) Speed (c cable carrier) max 3 m//s Acceleration (c cable carrier) max 10 m//s² Torsional stresses ±180° //m N of cycles max 2 Mio (25 °C) Torsion speed 35 cycles//min
