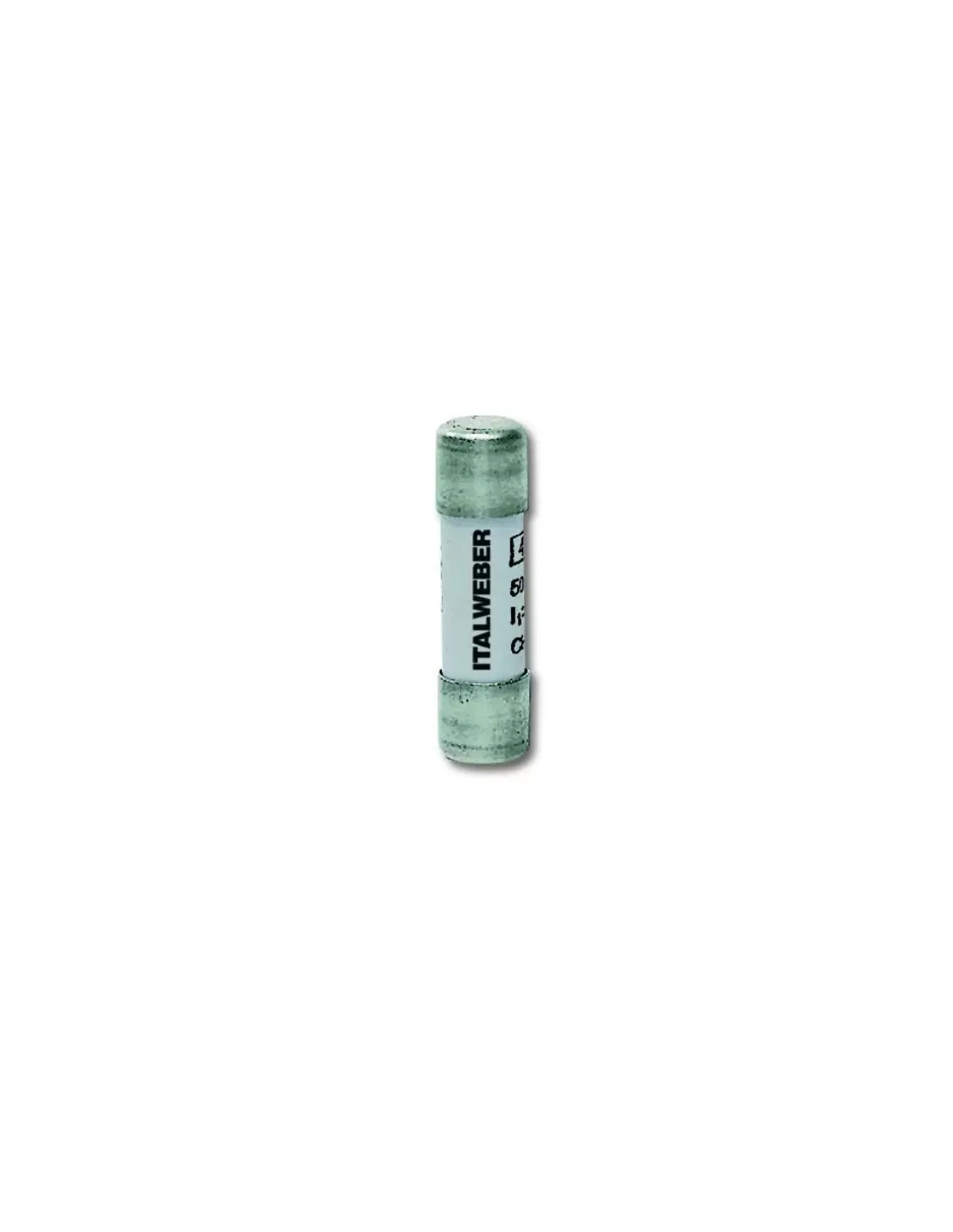

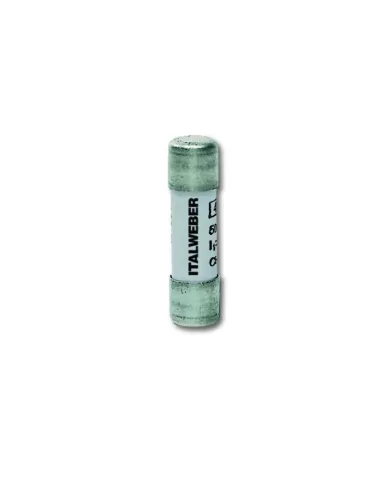

Italweber 1431940 fuses sch14 gg 40a 500v

Cylindrical fuse 14 x 51 mm - Type: SCH14 - Curve: gG - Current 40A - Voltage 500V - With melting indicator CH FUSES 14x51 gG General characteristics: • Product type: CH series cylindrical fuses; • Families: standard (CH), with fusion indicator (SCH) and with striker (CH//P); • Dimensions: 14 x 51 mm; • Intervention characteristic: gG; • Complies with the standards: CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-4; • Steatite body; • Silver-plated copper contacts; • Rated current: from 1A to 50A; • Rated voltage: 690V (1A to 25A), 500V (32A to 40A), 400V (50A); model with striker: 500V up to 40A and 400V for 50A; • Breaking capacity Ik: see page 2; • Storage temperature: -40°C // 80°C;
