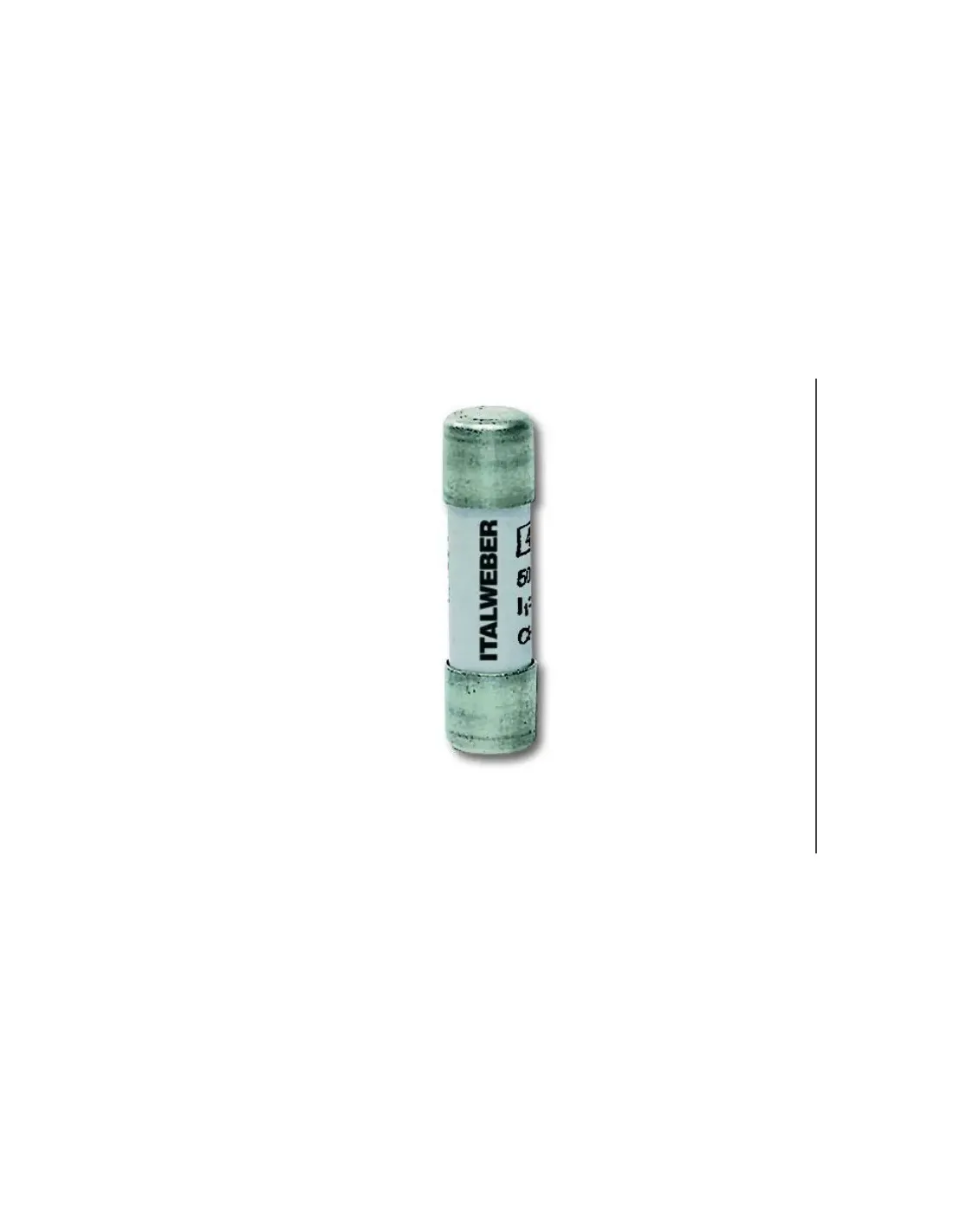

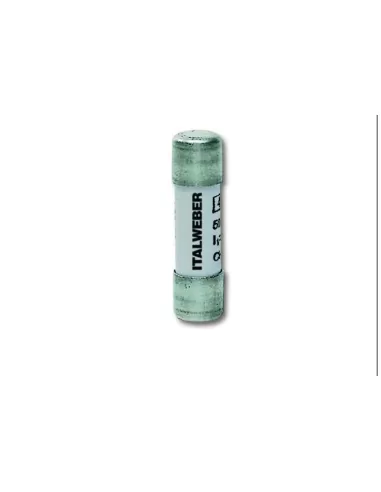

Italweber 1433025 fuse ch//p14 gg 25a 500v

Cylindrical fuse 14 x 51 mm - Type: CH14//P - Curve: gG - Current 25A - Voltage 500V - With striker CH FUSES 14x51 aM General characteristics: • Product type: CH series cylindrical fuses; • Families: standard (CH), with fusion indicator (SCH) and with striker (CH//P); • Dimensions: 14 x 51 mm; • Trip characteristic: aM; • Complies with the standards: CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-4; • Steatite body; • Silver-plated copper contacts; • Rated current: from 2A to 50A; • Rated voltage: 690V (2A to 25A), 500V (32A to 40A), 400V (50A); model with striker: 500V up to 40A and 400V for 50A; • Breaking capacity: 80kA (from 2A to 25A), 120kA (from 32A to 50A);
