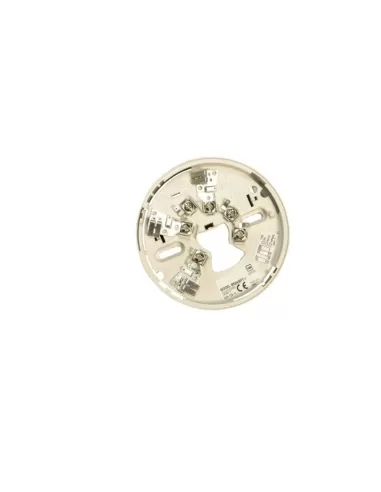

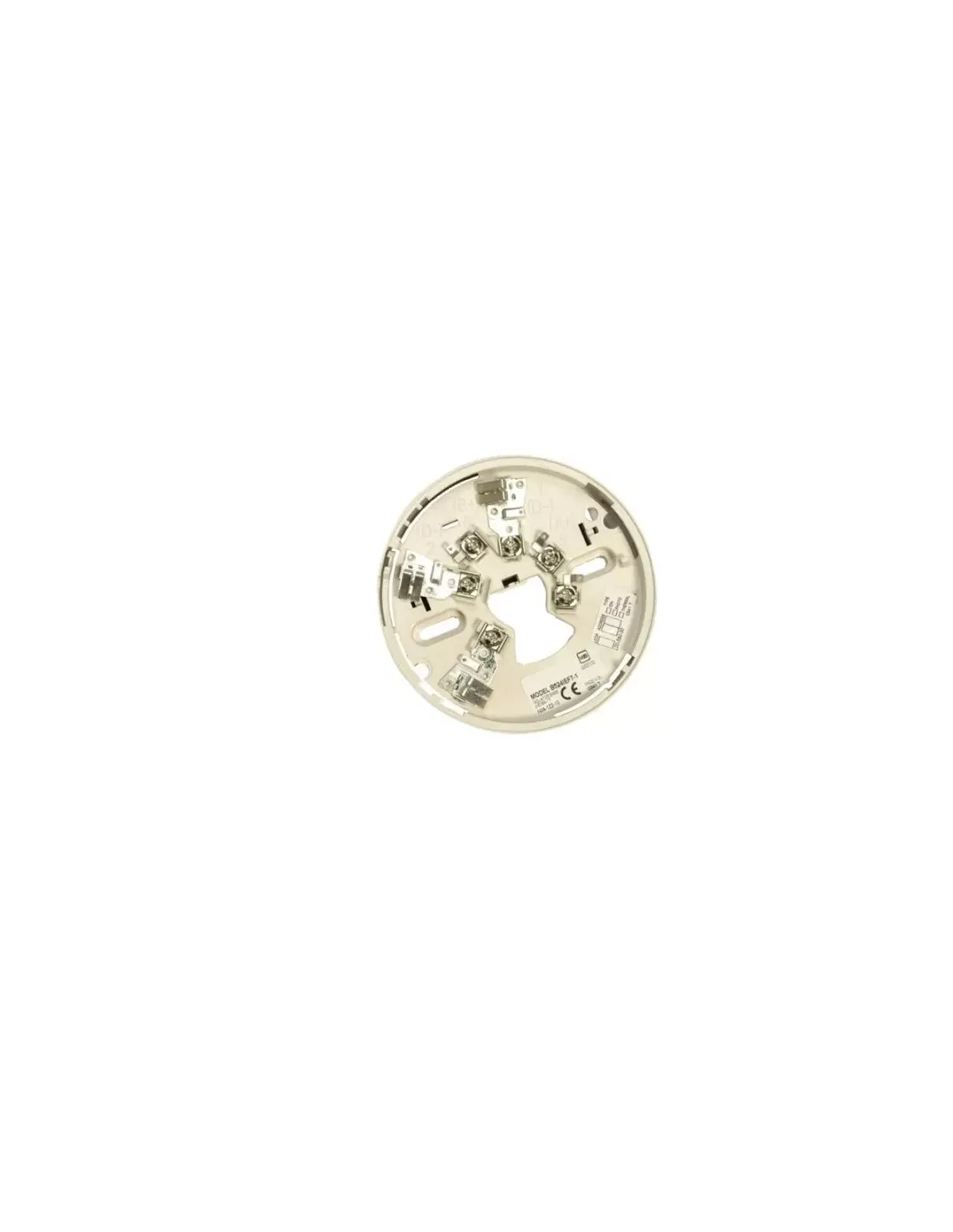

Notifier b524ieft-1 bases for smoke detector

The B524IRFT-1 System Sensor Isolator Base prevents an entire communication circuit from being deactivated when a short circuit occurs. It achieves this by isolating the part of the circuit containing the short circuit from the rest of the circuit. The base will automatically reset the entire circuit when the short circuit is corrected Up to 20 devices can be isolated per isolator base depending on the device type Features Low profile (26 mm) Low current consumption (100 µA) Up to 99 isolators per loop Complete isolation of short circuits Automatic recovery when the short circuit is corrected Rugged industrial construction Remote LED connection Sensor continues to operate in the event of a short circuit on either side of the isolator base Datasheet
