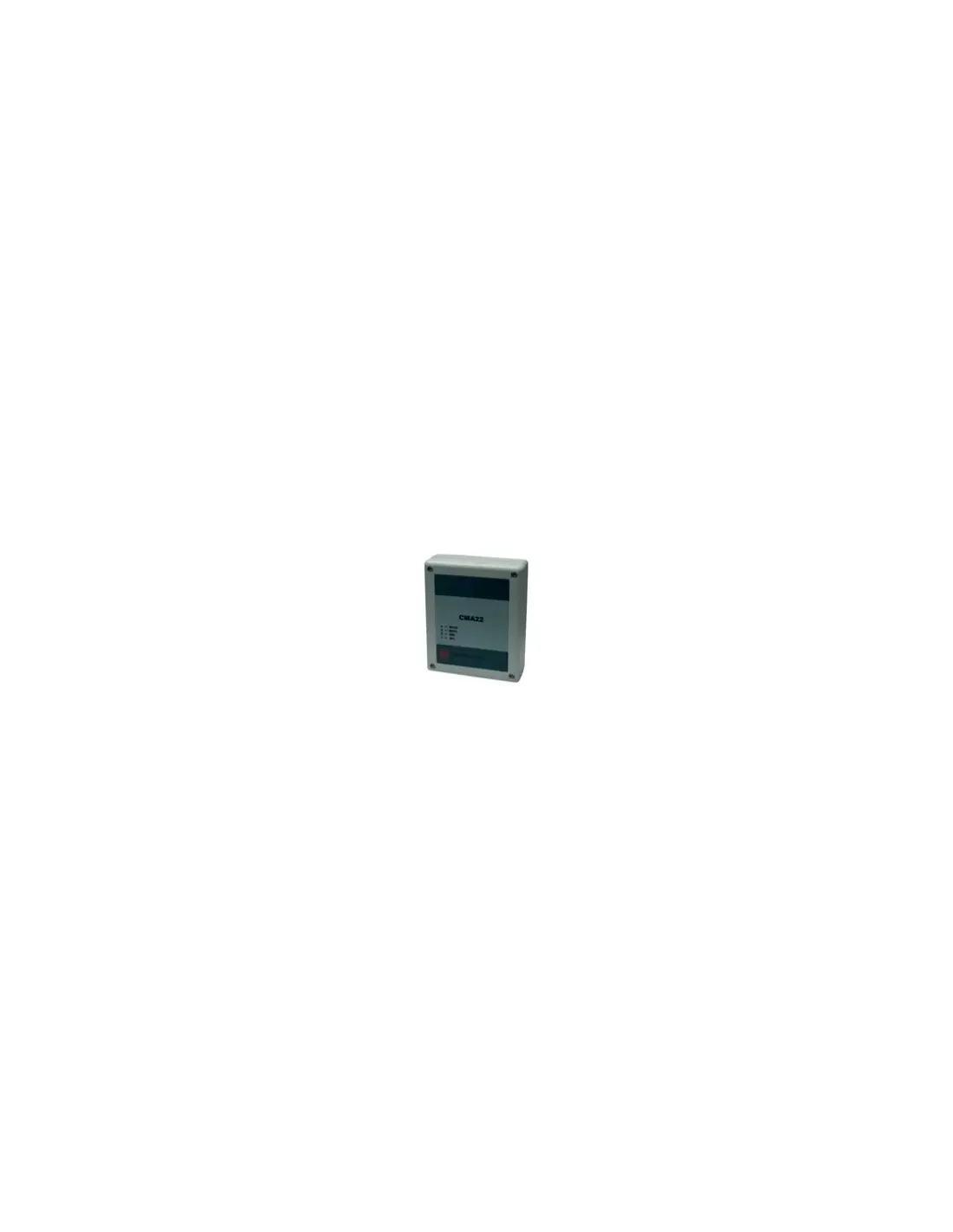

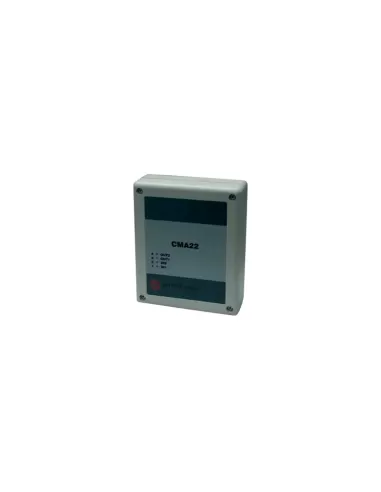

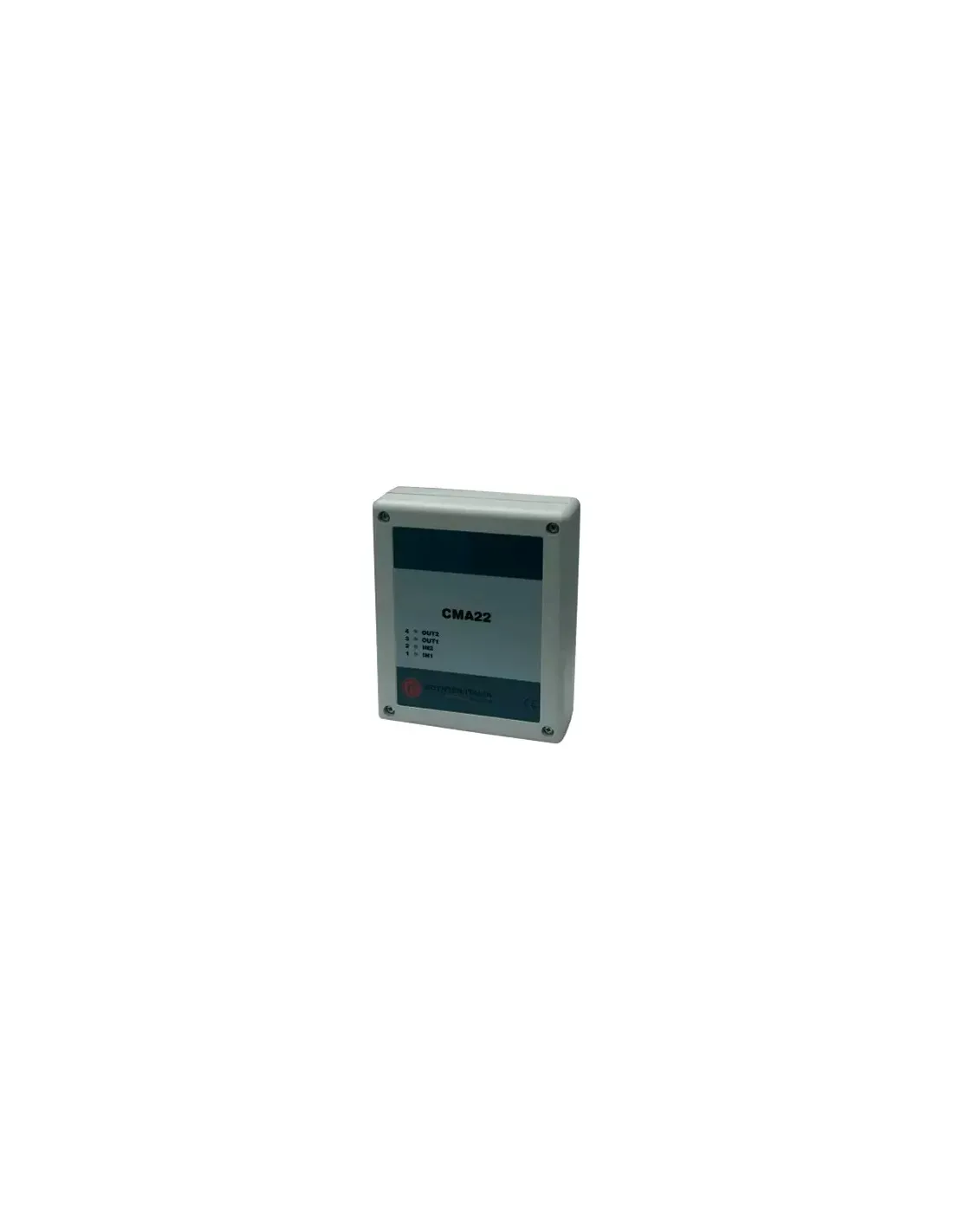

Notifier cma22 interface module 2 inputs 2 outputs

Addressable module with 2 inputs and 2 outputs The input is controlled on a monitored line The second output can be controlled or with potential-free exchange contact, the first only with contact The choice of the type of output is obtained by selecting two dip-switches The module, using four consecutive addresses, is addressed by means of rotary selectors numbered from 01 to 99. These are equipped with four green and red LEDs which will give indications on the status of the module CPR certificate in compliance with EN 54-18 Power supply 15- 32Vcc Quiescent current of 620 microA and 860 microA with active LED Operating temperature from 0°C to 50°C Relative humidity up to 93%
