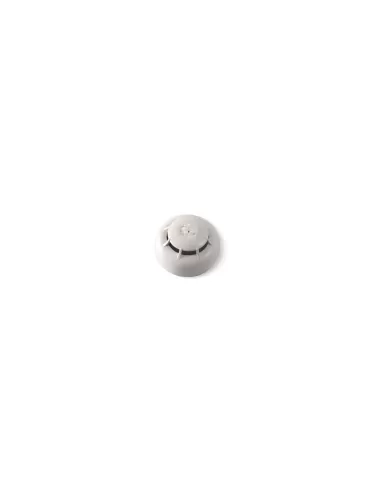

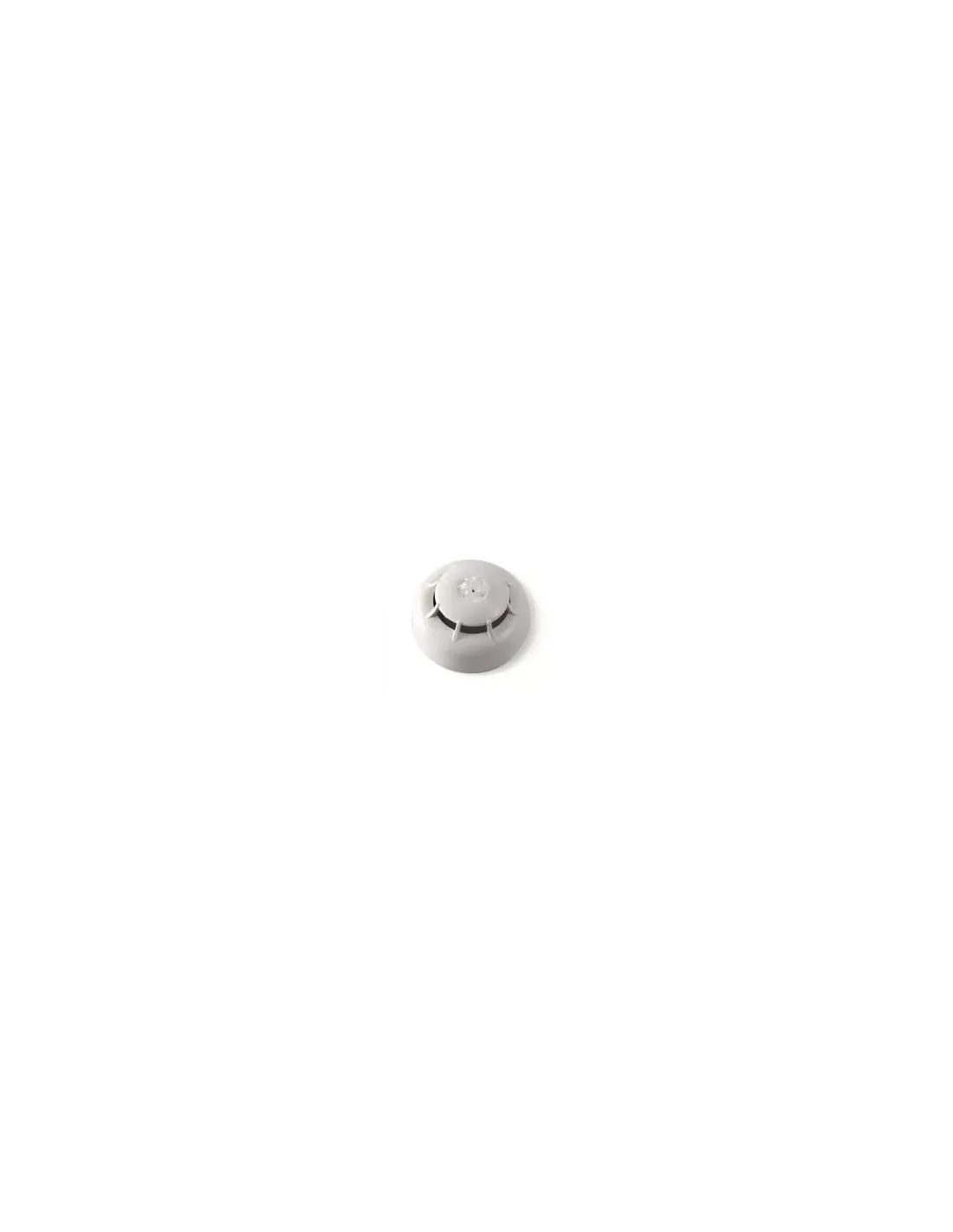

Inim enea ed200 temperature detector (in4aed200)
Condizione prodotto:New
Secure Payments
Delivery times
Fedex Road Europe: 5-7 working days
Dhl Road Europe: 3-5 working days
DHL Express International: 2-3 working days
Legal guarantee of conformity
Payments Method
ED200
Temperature detector
However, the detector can be set in the following modes: A1R (fixed threshold at 58°C and thermo-rapid detection), B (Fixed threshold at 72°C), A2S (Fixed threshold at 58°C), BR (fixed threshold at 72°C with thermovelocimetric detection).
Thanks to its high versatility it can be adapted to all those conditions where smoke detection is difficult and susceptible to false alarms.
Parameter | ED100 | ED200 | ED300 |
Supply voltage | 19-30 Vdc | ||
Absorption at rest | 200 uA | ||
Absorption in alarm | Max 10 mA | ||
Sensitivity | 0.08 – 0.10 – 0.12 – 0.15 dB/m | A1R (58°C + RoR) – B (72°C) – BR(72°C + RoR) – A2S (58°C) | 0.08 – 0.10 – 0.12 – 0.15 dB/m ---------------------------------------- A1R (58°C + RoR) – B (72°C) – BR(72°C + RoR) – A2S (58°C) ----------------------------------------- AND –OR – PLUS mode |
Operating temperature | -5°C + 40°C | ||
Height (base included) | 46mm | 54mm | |
Diameter | 110mm | ||
Weight (base included) | 160g | ||
Weight (excluding base) | 90g | ||
New
30
8050612420996
IN4AED200
