Genius mistral 400r 230v reversible motor for swing doors

ACTUATOR for SWING gates

REVERSIBLE

FAAC / GENIUS COMPATIBLE

**ELECTRIC LOCK REQUIRED**

Professional

**Use for doors up to 3.00 meters and 350kg in weight**

Electromechanical linear actuator for condominium use, entirely metal structure, stainless steel stem.

Once installed correctly, MISTRAL automatic systems no longer need to be looked after,


since their maintenance is practically zero, the installation

does not require any modification to the existing gate!


High performance electric motor.

The actuator is built for leaves that do not exceed 350 kg in weight and 3 meters in length,

aluminum body and the heart of the bronze gears guarantee long life.

COMPOSITION:

n° 1 linear electromechanical actuator for condominium use, for external use, requires an electric lock.

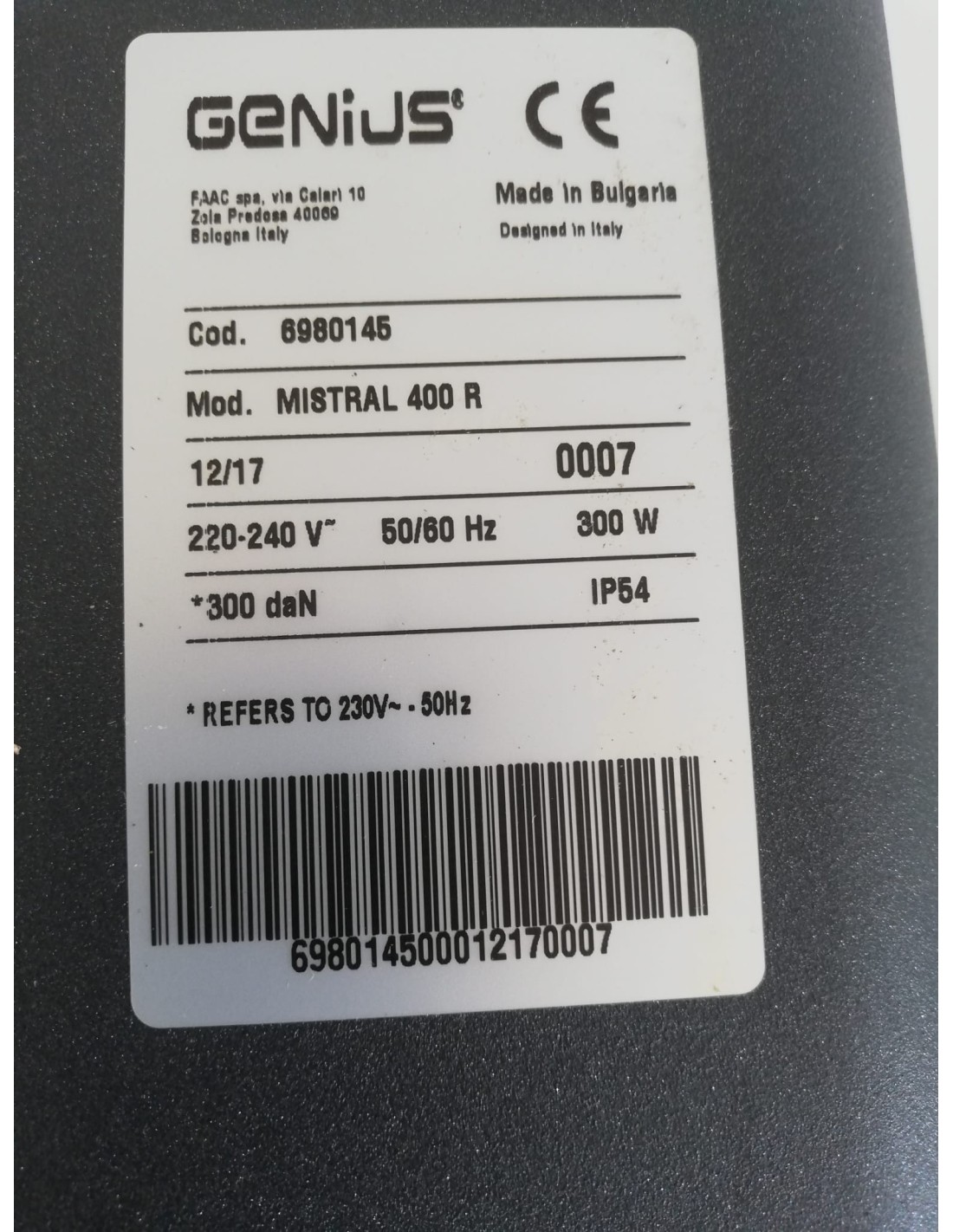

Engine rpm 1.400. Power 280 W. Thrust adjustable from 500 to 3000 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 6.0 kg

n° 1 Installation accessories

n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
