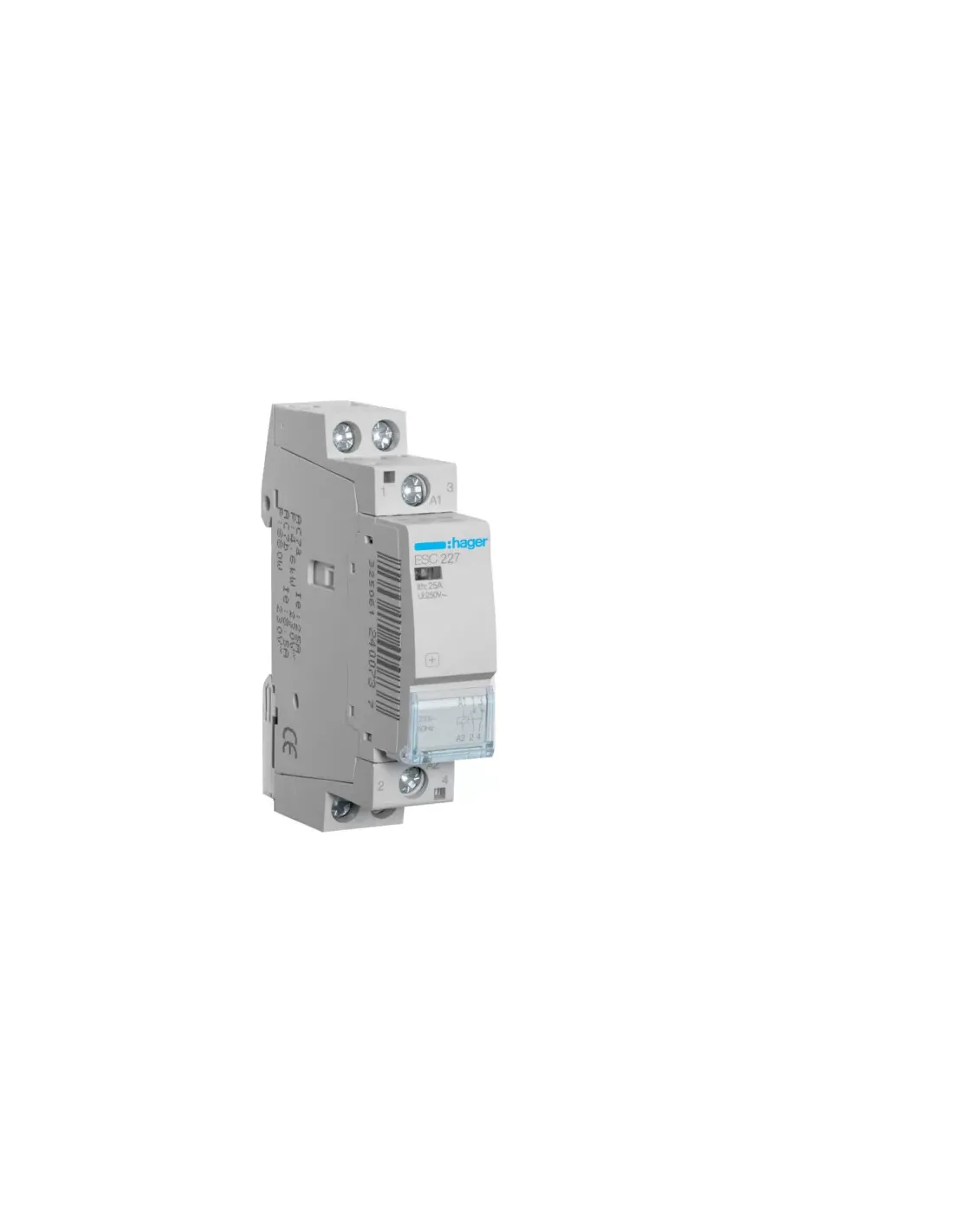

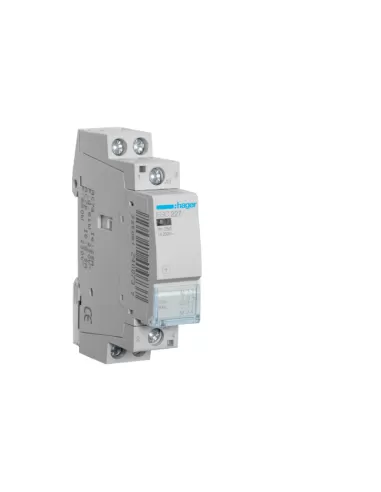

Hager esc227 eco contactor 1na 1nc 230vac 25a 1m

Design Control type NA Main electrical characteristics Rated operational voltage AC 230 V Rated frequency 50 Hz Voltage Rated insulation voltage 250 V AC control circuit voltage 230 V Rated fault withstand current 4 kV Current Rated current in A 25 A Thermal current in free air 25 A Nominal current in AC7 category A 25 A Nominal current in AC7 category B 8.5 A Power Attraction absorption 10.7 VA Consumption at steady state 2.9 VA Total dissipated power 2.5 W Power dissipated per contact 1.5 W Power dissipated by the coil 1 W Nominal power 230V in AC7 in category A 4.6 kW nominal power 230V in AC7 in category B 880 W Release Response time on opening 15 ms Response time on closing 25 ms Duration Electrical duration and number of cycles 30000 Number of operations (mechanical duration) 100000 Dimensions Depth of the installed product 60 mm Height of the installed product 83 mm Width of the installed product 17.85 mm Control of fluorescent bulbs Max power supply with parallel fluor lamps 810 VA - in double switching 1990 VA Maximum load of fluorescent lamps 950 VA Control of incandescent lamps Maximum power with incandescent lamps 1900 W Installation, mounting Tightening torque 1.2Nm Connection Minimum cross-section with flexible cable 1 // 6mm² Minimum cross-section with rigid cable 1 // 10mm² Contact type 1NC 1NO Type of screw connection Equipment Accessory yes Use local control // manual no Standards, Approvals European Directive WEEE concerned Safety Degree of protection of the casing IP2X Conditions of use Operating temperature -10… 50 °C Storage//transport temperature -40…80 °C
