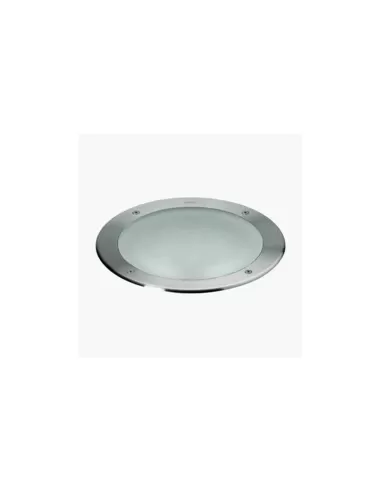

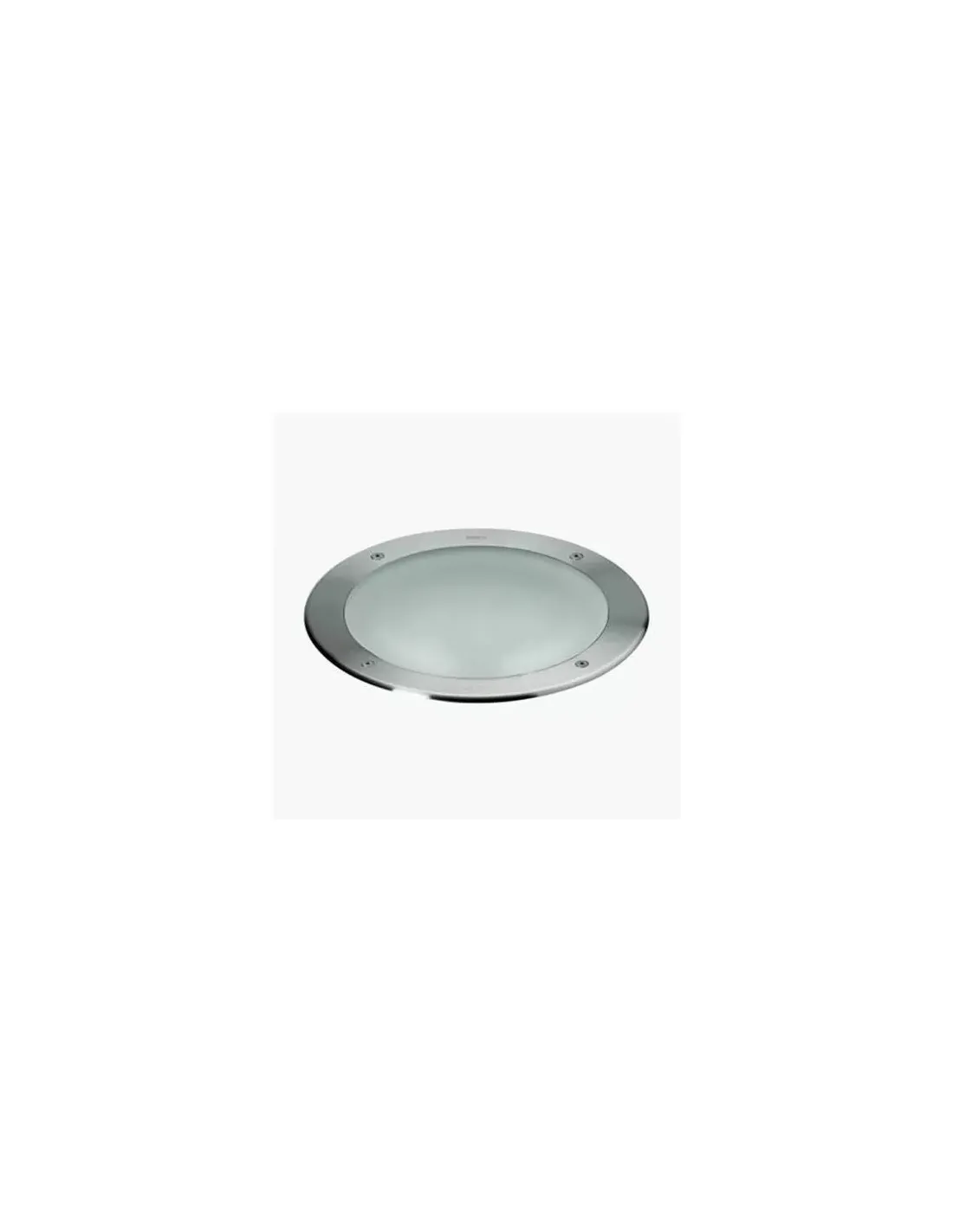

Sime S.5759.19 plano etched fc 10W TC-DE stainless steel

TYPE

Walkable luminaire for ground installation.

Depth 100mm.

IP 67 protection rating

-CHARACTERISTICS OF THE MATERIALS

Body in EN AB-44100 "Copper Free" primary die-cast aluminium

with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

Front finishing ring made of strong AISI 316L stainless steel

molybdenum content 2.5-3%.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Annealed silicone gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of material

metal-free fluozirconium containing ceramic nanoparticles that

they create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 09

Maximum load 1000 kg

-LIGHTING PERFORMANCE

10 mm thick tempered etched safety glass. sodium type

calcic Weissglass with high transmittivity value +12% (compared to a

common glass).

Light source, with fixed lamp position.

Yield 18%

-LOW SURFACE TEMPERATURE

Weissglass glass capable of absorbing less energy than glass

traditional thanks to the high transmittivity.

Glass temperature 60°C (Ta 25°C)

Electronic ballast with less heat development.

Optimization of the layout of the components inside the product allows

excellent heat dissipation keeping the internal temperature within

permissible limits.

-FORMWORK FOR INSTALLATION AND MAINTENANCE

Supplied with polypropylene casing with stainless steel external edge

AISI 316L prepared on 4 sides for cable entry which allows:

1) perform easy wiring;

2) house the quick connector;

3) easily remove the appliance for maintenance.

-WIRING

Piece of H07RN-F type power cable closed via the

PG 13.5 cable gland (Ø 6÷12 mm), sealed with epoxy resin

two-component and internally wired with cables covered by sheaths

protective silicone glass socks.

The M20 quick connector (Ø 5÷14 mm) for

single pass-through connection, to be housed inside the formwork.

Changing the headlamp without completely removing the device.

Insulation class: CLASS I

With 230V-12V electronic transformer in IP67 box.

Available colors: INOX (cod.19)

Weight: 3.46 kg

Glow Wire test: --

Luminaires supplied complete with lamp.
