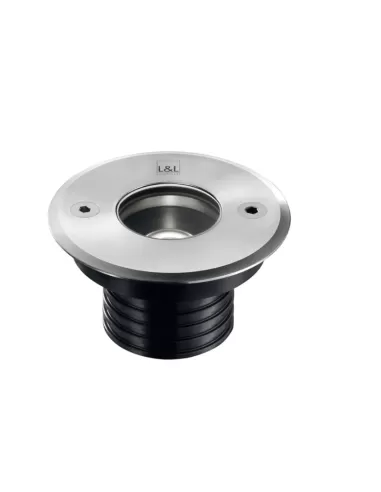

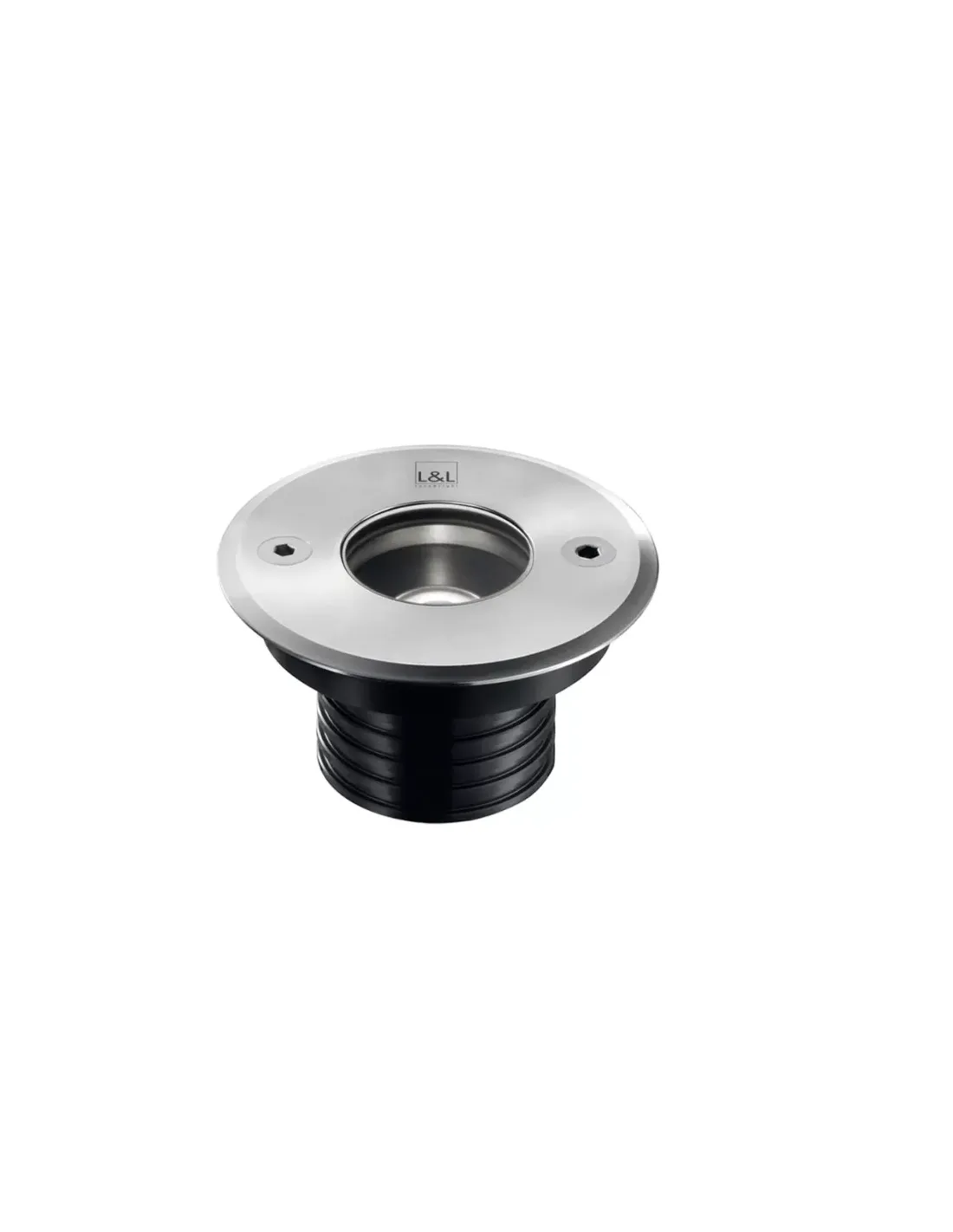

L&l cb240009maf bright2 4 5w 24vdc 4000°k 34° ip68 gray

Bright 2 4 outdoor recessed (not suitable for immersion in swimming pools and fountains) drive-over up to 2000 kg recessed (ceiling, wall, floor) Power consumption: 5W, 7W; RGB: max 5W Power supply: 24Vdc; RGB: max 500mA Source flux: 452 lm (3000K, 5W, CRI 90), 488 lm (3000K, 5W, CRI 80), 608 lm (3000K, 7W, CRI 90), 657 lm (3000K, 7W, CRI 80) , RGB: 253 lm, R: 82 lm G: 114 lm B: 57 lm (500mA) Emitted flux: 284 lm (3000K, 34°, 5W, CRI 90), 352 lm (3000K, 34°, 5W, CRI 80 ), 374 lm (3000K, 34°, 7W, CRI 90), 463 lm (3000K, 34°, 7W, CRI 80), RGB: 191 lm, R: 70 lm G: 90 lm B: 31 lm (500mA, 34°) 1 power LED High Intensity, 3 steps MacAdam; RGB: 3 power LED 50000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, RGB Optics: 8°, 11°, 17°, 20°, sharp 21°, 34°, 45°, 47° , sharp 61°, 68°, 13°x52°, 21°x42°, asymmetric 8°, diffuse CRI Color rendering index: 80, 90 Body material: black anodized anticorodal aluminum body, aluminum ring, steel body and ring AISI316L stainless steel, black anodized anticorodal aluminum body, AISI 316L stainless steel ring Finishes: gray (RAL 9006), stainless steel Body: black anodized aluminium, stainless steel Screen material: screen in extra-clear tempered transparent glass (version with optics), screen in sandblasted tempered extra-clear glass (widespread version) Thickness of the built-in surface: min 0 mm, max 25 mm power supply not included Connection: in parallel; RGB: in series including 1.5 m neoprene cable H05RN-F 2x0.75//0.75 Ø6.3 mm; RGB: included FEP RUB cable (equivalent to H05RN-F) of 1.5 m 6x0.50//0.50 Ø6.3 mm Degree of protection: IP68, IP69K Degree of resistance: IK10 version with optics available on request 5th (version with white LED color and 3.5W power); the version with 9W power is available on request (version with white LED colour) Protection systems: IPS (Intelligent Protection System) protects the lighting fixtures from water infiltrations which can occur in the event of joint errors between the cables for outdoor applications and immersion This innovation patented by L&L also guarantees electrical protection against polarity reversal, hotplug, ESD and overvoltages which can occur in the event of malfunctions in the electrical system; PID (Protective Impedance Device) protects the lighting fixtures from electrical phenomena external to the system, such as accumulations of electrostatic charges or impulsive phenomena coming from the power line. In general, events with low energy content. Operating temperature: -20°C — 45°C Maximum appliance temperature: 55°C (Ta 25°C) Glow wire test: 960° Photobiological safety: compliant with IEC TR 62778:2014 Insulation class: class III Weight: stainless steel ring: 440 g, ring in aluminium: 330 g Dimensions: Ø85x63 mm Recessing hole: Ø70 mm Technical volume for dissipation: Ø 180 mm, H 120 mm Energy consumption class: A // A // A (integrated LED module) in accordance with UE 874 //2012 Accessories: WC0100 Casing, WC0103 Casing, WC0150 Casing, WE0400A Semi-diffusing screen, half transparent and half frosted, WE0400S Anti-glare screen, half transparent and half black silk-screened, WG0100 Fixing spring Ø70mm, WH0201 Honeycomb Tested and approved by EOL test (End Of Line test) with operation test and verification of electrical absorption parameters
