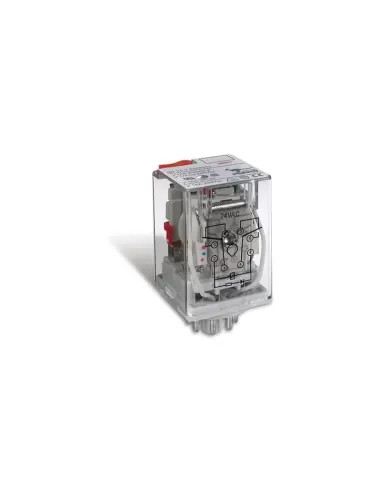

Perry electric 1re080248dc relay octal 2 ct 10a 250v 48vdc

1RE 080248DC OCTAL industrial relay 48V dc Power supply 48V dc 2 changeover contacts 10A//250V OCTAL industrial relay 48V dc Power supply 48V dc 2 changeover contacts 10A//250V FEATURES Main data Type OCTAL // UNDECAL Supply voltage 12 - 24 - 48 - 60V dc (mod DC) 12 - 24 - 48 - 110 - 230V ac (mod CC) Nominal load 10A//250Vc at - 30V dc Load in AC1 12A//250Vc at - 30V dc Max switchable power 2500VA // 300W Voltage switchable max 250Vc to // 30V dc Motor power 1//3 HP at 240V ac Contact material AG - CdO Description Tertiary // industrial use Type of outputs in potential-free changeover Contacts available 2 in deviation (2 x ) OCTAL 3 in deviation ( 3 x ) UNDECAL Dimensions (L x W x H) mm 21.5 x 28 x 36 Weight 37 g General data Type of installation on plinth Protection degree (IP) IP20 Electrical life (operations) 100 000 Mechanical life (operations) 10 000 000 Insulation resistance (500 V dc) 1 000 MO Dielectric strength (open contacts) 750 V ac Dielectric strength (contacts // coil) 3 750 V ac Minimum load 100 mA // 5 V dc Power dissipation 1 5 W (DC mod ) 2 5 VA (AC mod) Operating temperature limits from -55 to 70°C Trip time (at nominal voltage) 25 msec max Release time (at nominal voltage) 25 msec max Ambient temperature -55 ÷ 70°C Vibration resistance 10 ÷ 55 Hz 1 5 mm Impact resistance (functional) 100 m//sec2 //10 g Impact resistance (destructive) 1 000 m//sec2 //100 g Humidity 35 % ÷ 95 % Dust cover construction Rated insulation voltage 250 V Rated imp withstand voltage 2.2 KV Pollution degree 2 Overvoltage category III
