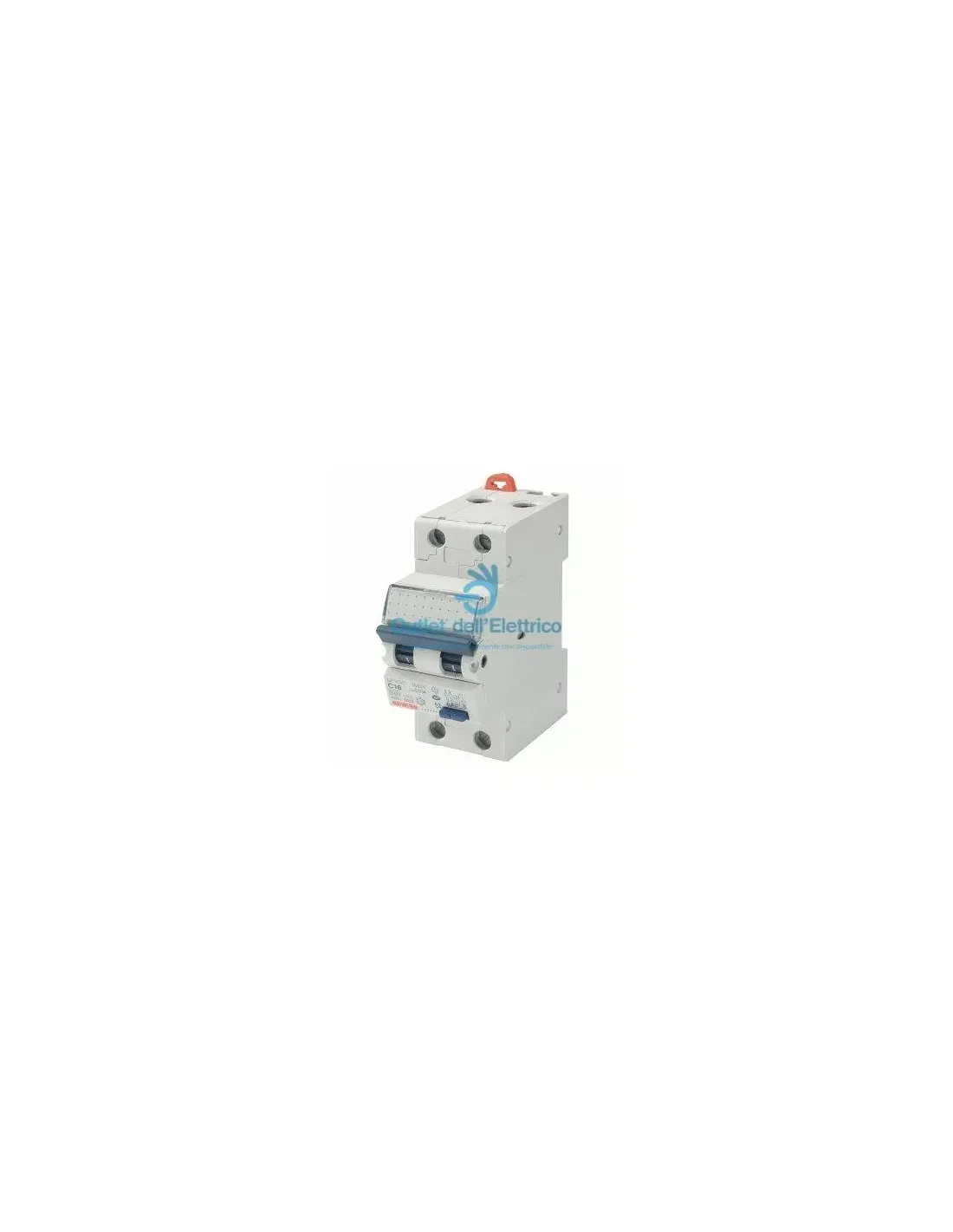

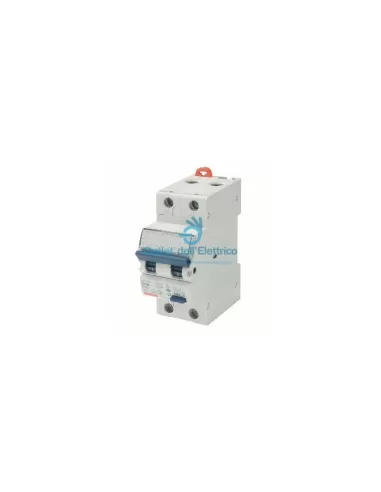

Gewiss GW94006 dif.c.1p n c10 4.5ka ac/0.03 2m circuit breaker
Gewiss S.p.A.
€195.21
-72%
54.66 €
Tax included
_1732199632.png){kind=icon}
Order by
and your product will be shipped
In Stock: 39/PZ
Condizione prodotto:New
Secure Payments
Delivery times
Fedex Road Europe: 5-7 working days
Dhl Road Europe: 3-5 working days
DHL Express International: 2-3 working days
Legal guarantee of conformity
Payments Method
DESCRIPTION DIFFERENTIAL MAGNETOTHERMAL SWITCH
ABBREVIATION MDC 45
N. POLES 1P+N
N. MODULES 2
RATED CURRENT 10 A
NOMINAL DIFFERENTIAL CURRENT 30 mA
AC TYPE
CURVE C
NOMINAL VOLTAGE (IEC/EN 61009-1, 61009-2-1) 230/240 V
ENERGY LIMITATION CLASS 3
REFERENCE STANDARD IEC/EN 61009-1, IEC/EN 61009-2-1
NOMINAL FREQUENCY (HZ) 50/60 Hz
BREAKING CAPACITY IEC/EN 61009-1 230V (ICN) 4500 A
BREAKING CAPACITY IEC/EN 61009-1 (ICS) 1 x Icn
BREAKING CAPACITY IEC/EN 60947-2 230V (ICU) 6 kA
BREAKING CAPACITY IEC/EN 60947-2 (ICS) 100% Icu
ISOLATION VOLTAGE 500 V
IMMUNITY LEVEL (8/20ΜS WAVE) 250 A
NOMINAL IMPULSE WITHSTANDING VOLTAGE 4 kV
OVERVOLTAGE CATEGORY III
NUMBER OF ELECTRICAL OPERATIONS 10,000
NUMBER OF MECHANICAL OPERATIONS 20,000
RIGID CABLE SECTION
FLEXIBLE CABLE SECTION
DUAL CONNECTION YES (lower terminals only)
NOMINAL TIGHTENING TORQUE 2 Nm
WORKING TEMPERATURE -25 +60° C (derating In with T>30° C)
STORAGE TEMPERATURE -40 +70 °C
COMPATIBILITY WITH ELECTRICAL AUXILIARIES Yes
RESTART COMPATIBILITY Yes
MOUNTING POSITION Any
New
72
8011564059382
GW94006
