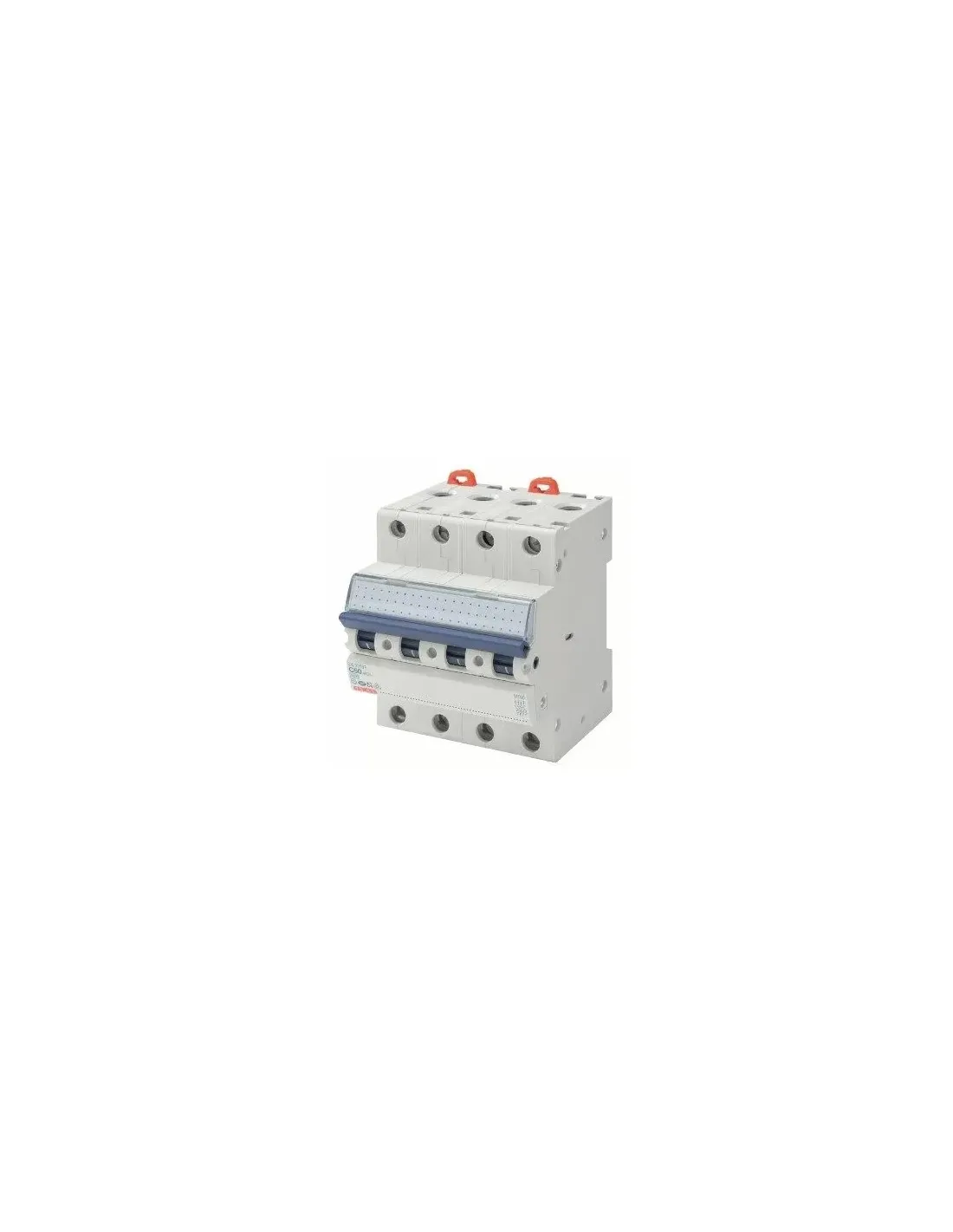

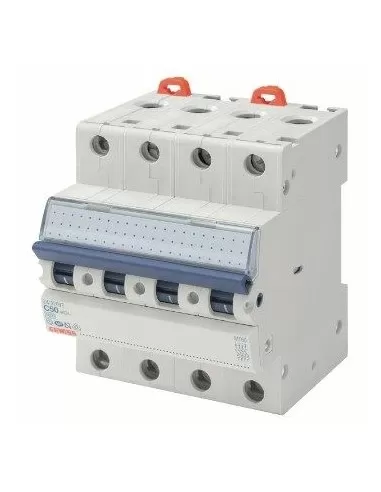

Gewiss GW92086 4p c10 6ka 4m circuit breaker

Brand: Gewiss S.p.A.

Last items in stock

183.00€ -72% €51.24

Tax included

In Stock: 1/PZ

Condizione prodotto:New

Description
Product Details

DESCRIPTIONSWITCH MAGNETERMIC

THEME SONGMT 60

N. POLES4P

N. FORMS4

RATED CURRENT10 A

CURVEC

NOMINAL TENSION230-400V

REFERENCE STANDARDEN 60898, EN 60947-2

RATED FREQUENCY (HZ)50/60 Hz

INTERRUPTION POWER EN 60898 230V (ICN)6000 A

BREAKING POWER EN 60898 400V (ICN)6000 A

BREAKING POWER EN 60898 (ICS)1 x Icn

BREAKING CAPACITY EN 60947-2 230V (ICU)20 kA

BREAKING CAPACITY EN 60947-2 400V (ICU)10 kA

BREAKING CAPACITY EN 60947-2 (ICS)75% Icu

ISOLATION VOLTAGE500V

RATED IMPULSE WITHSTANDING VOLTAGE4kV

MINIMUM OPERATING VOLTAGE12 V ac/dc

MAXIMUM OPERATING VOLTAGE440V a.c. / 220 V d.c

NUMBER OF ELECTRICAL OPERATIONS10.000

NUMBER OF MECHANICAL MANEUVERS20.000

RIGID CABLE SECTION

FLEXIBLE CABLE SECTION

NOMINAL TIGHTENING TORQUE2 Nm

WORKING TEMPERATURE-25 +60 °C

STORAGE TEMPERATURE-40 +70 °C

ELECTRIC CODE1411

WARE NUMBER85362010

Condition New

UPC 72

EAN13 8011564057555

MPN GW92086
