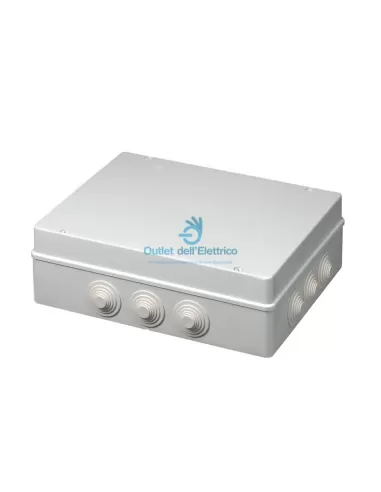

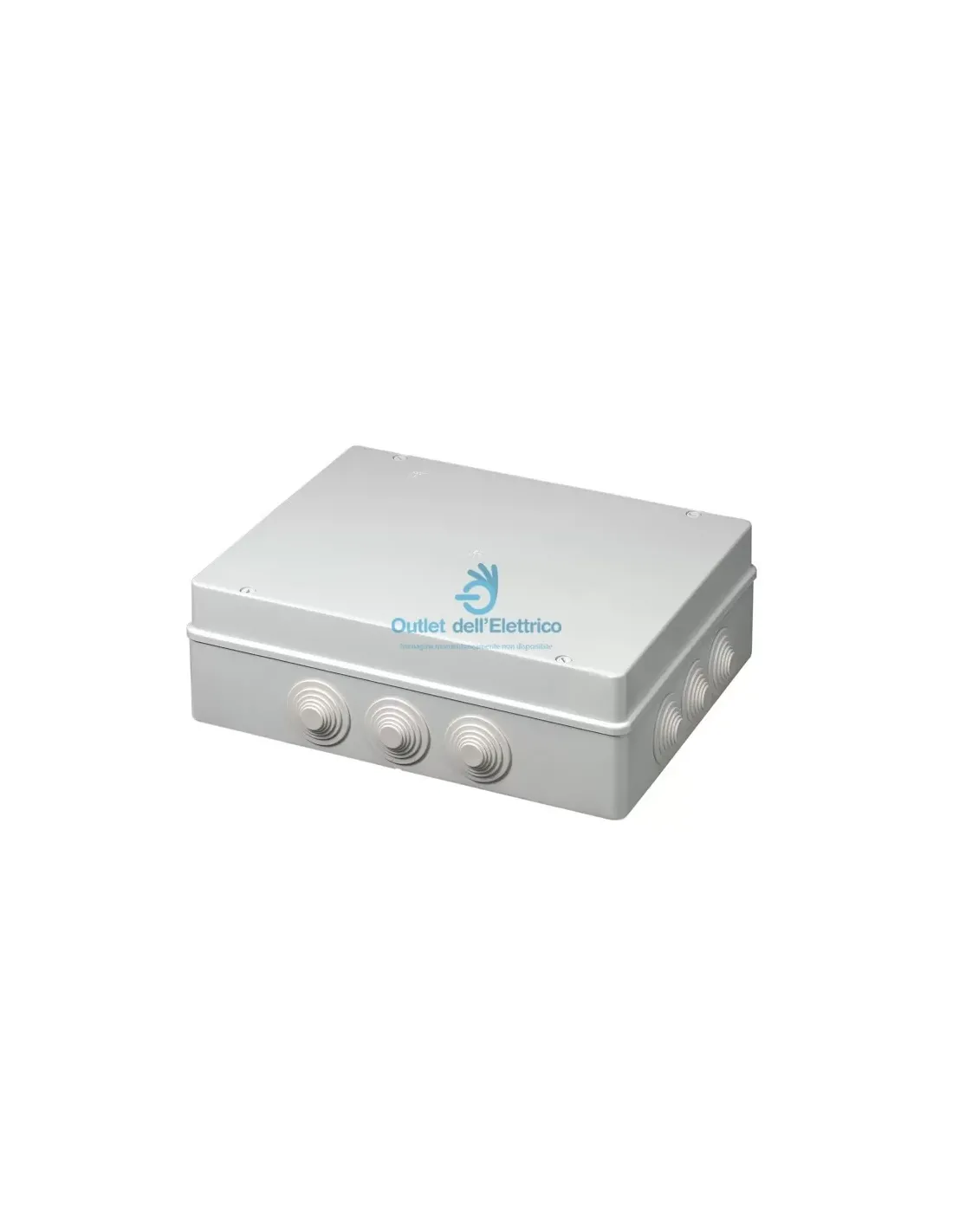

EC400C9 electrical channels IP55 junction box 380x300x120

Electrical channels EC400C9 Cassette with cable gland IP55 380x300x120 mm

– Hinged lid with nylon screw closure.
– Internal gasket in soft rubber with high grip.
– Material cable glands. soft with multiple concentric circles.
– Possibility of double insulation with optional caps.
– Internal guide for fixing DIN EN 50022 bar, terminal blocks or bottom plate.

Electrical channels EC400C9 Cassette with cable gland IP55 380x300x120 mm

Elettrocanali junction boxes are equipped with exclusive features that simplify and speed up wiring operations, saving the installer time and money.
Starting from the 300×220 size, the boxes are equipped with an integrated separable hinge: this means no kit to assemble, 90° opening of the lid flush with the box, separation of the lid from the box without tools and snap repositioning after carrying out wiring or assembly in the workshop.
The metal or insulating material mounting plates, ideal for wiring in the workshop and subsequent installation, make the most of the available area, to the advantage of rationalizing the execution.
The bottom guides, made in each model, allow the fixing of terminal blocks, DIN EN 50022 guides, equipment and bottom plates
directly on the box.
The boxes with quick 1/4 turn closure have the references "0" open and "1" closed stamped on the lid, which, aligned with the cut of the screws, unequivocally indicate whether the lid is closed or open.
Two of the same screws attach to the base, making the cover unmissable, which can in any case be removed to facilitate fixing and wiring operations and reassembled in a different position without tools.
