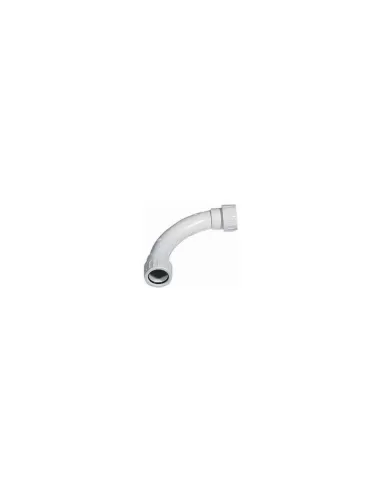

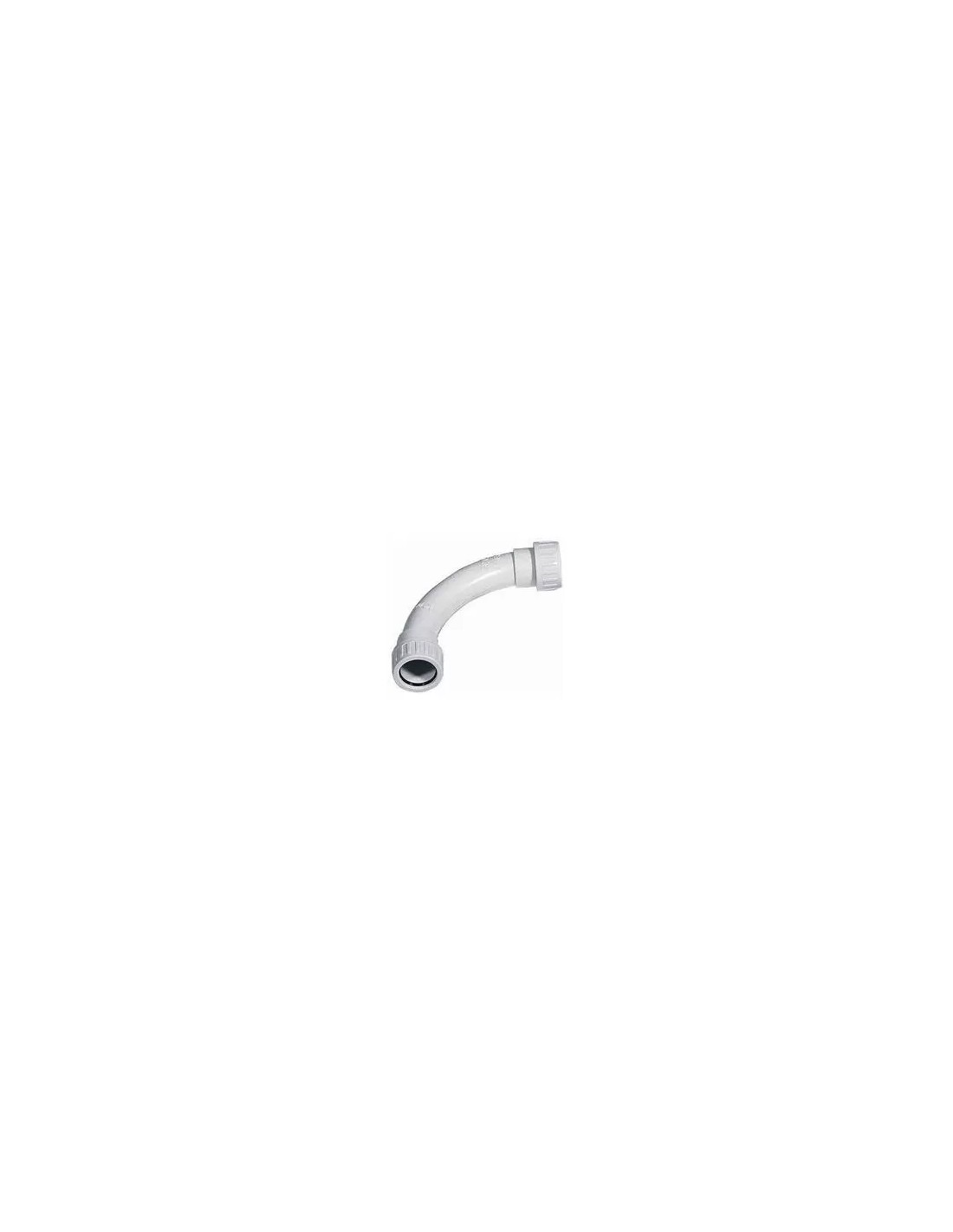

ECCS50 electric channels 90° bend pipe d.50 ip65

The ECCS50 bend with a narrow radius of 90° is part of the fittings useful for every electrical installation requirement, it offers the particularly appreciated possibility of circumventing small obstacles or changes in level, such as pillars or other pre-existing systems, or of avoiding expansions thermals of the support structures which, in rigid systems, could compromise the required degree of protection. 8032636766311 It is made of impact-resistant PVC-based technopolymer material with VO self-extinguishing degrees according to the UL94 standard. Request information Its size is 50mm, the bend is used to join together two RK series rigid protective tubes of the same size, in this case both rigid tubes must have a diameter of 50mm. Its protection degree is IP65, therefore it can be easily used in external systems, it has a reduced radius of curvature for a better fit to the wall, its color is gray (RAL 7035). The glow wire test (IEC 60695-2-11), i.e. the incandescent wire test used to verify resistance to ignition, determined a maximum working temperature of up to 960° for this support. It is a product in compliance with EN 61386-1, EN 61386-21
