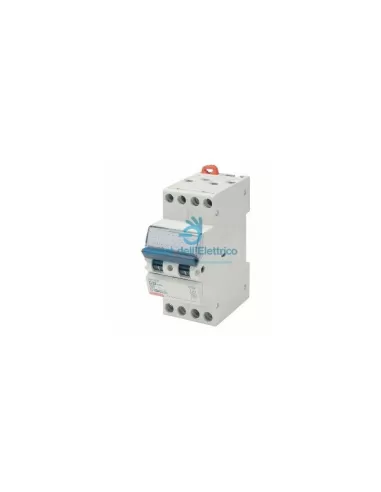

Gewiss GW90270 Circuit breaker comp.3p c32 6ka 2m

Gewiss S.p.A. -

- 72 -

- 8011564056916 -

- GW90270 -

Gewiss GW90270 Circuit breaker comp.3p c32 6ka 2m

Brand: Gewiss S.p.A.

Last items in stock

125.64€ -72% €35.18

Tax included

In Stock: 3/PZ

Condizione prodotto:New

Description
Product Details

DESCRIPTIONCOMPACT THERMIC MAGNETIC SWITCH

THEME SONGMTC 60

N. POLES3P

N. FORMS2

RATED CURRENT32 A

CURVEC

NOMINAL TENSION230-400V

REFERENCE STANDARDEN 60898, EN 60947-2

RATED FREQUENCY (HZ)50/60 Hz

INTERRUPTION POWER EN 60898 230V (ICN)6000 A

BREAKING POWER EN 60898 400V (ICN)6000 A

BREAKING POWER EN 60898 (ICS)1 x Icn

BREAKING CAPACITY IEC/EN 60947-2 230V (ICU)7.5kA

BREAKING CAPACITY IEC/EN 60947-2 400V (ICU)6 kA

BREAKING CAPACITY IEC/EN 60947-2 (ICS)100% Icu

ISOLATION VOLTAGE500V

RATED IMPULSE WITHSTANDING VOLTAGE4kV

MINIMUM OPERATING VOLTAGE12 V ac/dc

MAXIMUM OPERATING VOLTAGE440V a.c. / 220 V d.c

NUMBER OF ELECTRICAL OPERATIONS10.000

NUMBER OF MECHANICAL MANEUVERS20.000

RIGID CABLE SECTION

FLEXIBLE CABLE SECTION

NOMINAL TIGHTENING TORQUE1.2 Nm

WORKING TEMPERATURE-25 +60 °C

STORAGE TEMPERATURE-40 +70 °C

ELECTRIC CODE1411

WARE NUMBER85362010

Condition New

UPC 72

EAN13 8011564056916

MPN GW90270
