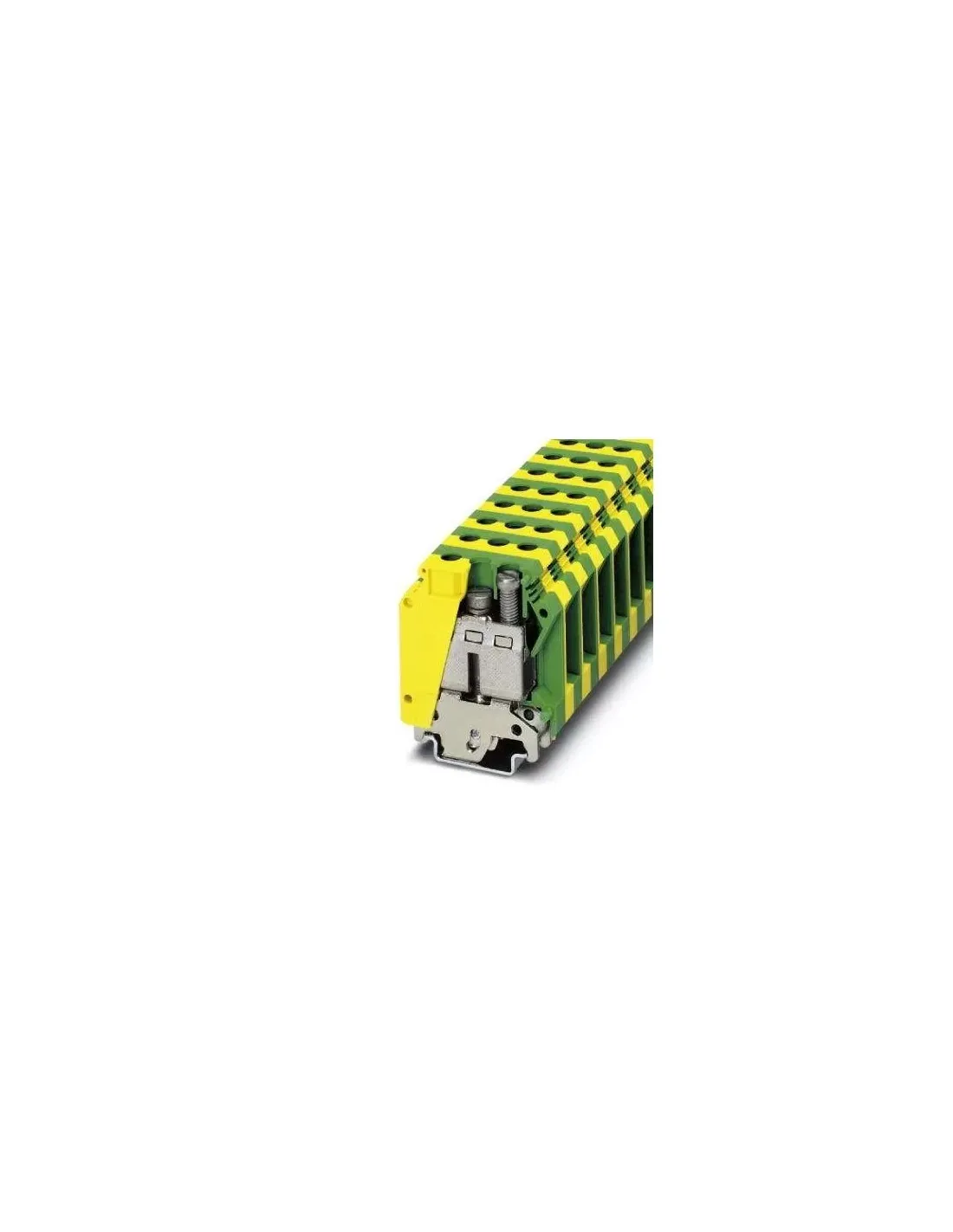

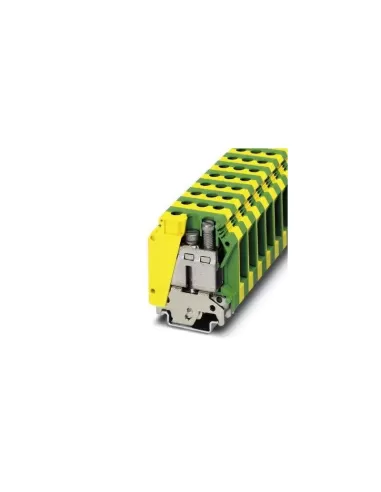

Phoenix 0444019 Uslkg 35 earth terminal screw
Phoenix Contact SpA
€32.07
-70%
9.62 €
Tax included
_1732199632.png){kind=icon}
Order by
and your product will be shipped
In Stock: 174/PZ
Condizione prodotto:New
Secure Payments
Delivery times
Fedex Road Europe: 5-7 working days
Dhl Road Europe: 3-5 working days
DHL Express International: 2-3 working days
Legal guarantee of conformity
Payments Method
| Note | Use an NS 32... or NS 35... copper DIN rail for connection cross-sections of 35 mm²/2 AWG. Use an NS 32... copper DIN rail for connection cross-sections > 35 mm²/2 AWG. When aligning with a feed-through terminal of the same shape, a cover for insulation voltages > 690 V must be used. |
|---|---|
| Number of levels | 1 |
| Number of connections | 2 |
| Nominal section | 35mm² |
| Color | green yellow |
| Insulating material | DAD |
| Flammability rating according to UL 94 | V0 |
| Rated peak voltage | 8kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Maximum power dissipated for nominal conditions | 4.06W |
| Side panel open | NO |
| Terminal block mounting | 2.5 Nm ... 3 Nm (PE foot with fixing screw, M5) |
| Relative temperature index of the insulating material (Elec., UL 746 B) | 130°C |
| Temperature index of the insulating material (DIN EN 60216-1 (VDE 0304-21)) | 125°C |
| Application of cold static insulating material | -60°C |
| Fire behavior for railway vehicles (DIN 5510-2) | Test passed |
| Flame test method (DIN EN 60695-11-10) | V0 |
| Oxygen index (DIN EN ISO 4589-2) | >32% |
| NF F16-101, NF F10-102 Class I | 2 |
| NF F16-101, NF F10-102 Class F | 2 |
| Surface flammability NFPA 130 (ASTM E 162) | past |
| Smoke Specific Optical Density NFPA 130 (ASTM E 662) | past |
| Smoke Gas Toxicity NFPA 130 (SMP 800C) | past |
| NFPA 130 (ASTM E 1354) Calorimetric Heat Release | 27.5MJ/kg |
| Fire protection for railway vehicles (DIN EN 45545-2) R22 | AL 1 - AL 3 |
| Fire protection for railway vehicles (DIN EN 45545-2) R23 | AL 1 - AL 3 |
| Fire protection for railway vehicles (DIN EN 45545-2) R24 | AL 1 - AL 3 |
| Fire protection for railway vehicles (DIN EN 45545-2) R26 | AL 1 - AL 3 |
Dimensions
| Length | 15.2mm |
|---|---|
| Length | 50 mm |
| Height DN 35/7.5 | 62mm |
| Height NS 35/15 | 69.5mm |
| Height NS 32 | 67 mm |
New
70
4017918002329
0444019
