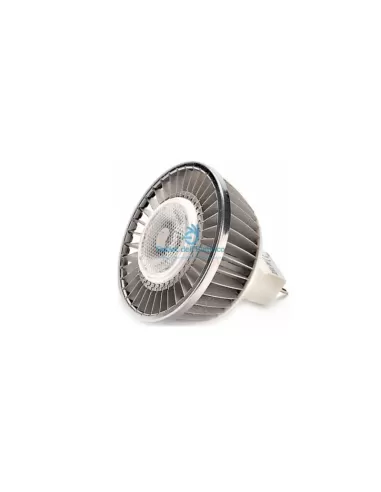

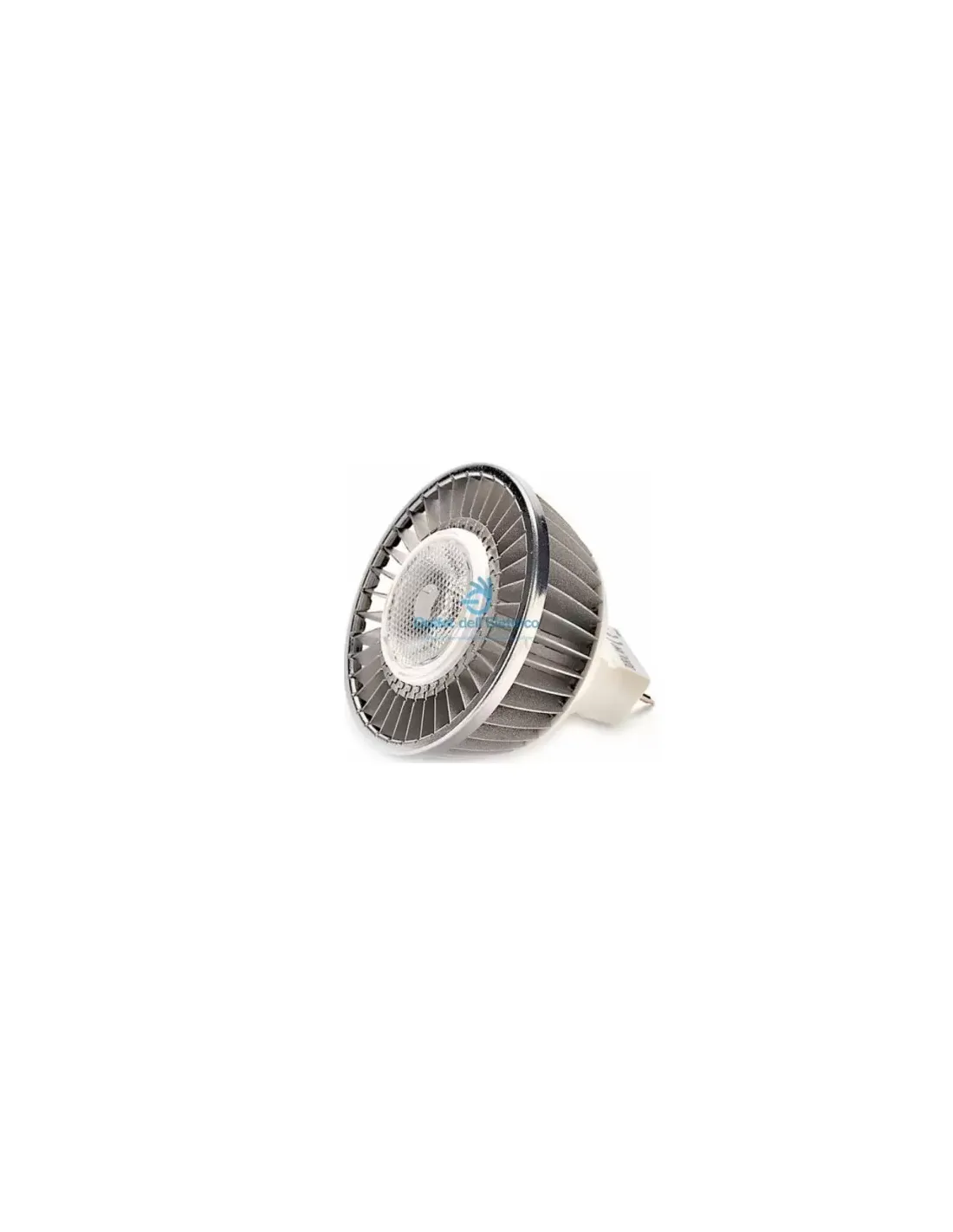

Duralamp 09025 Mr16 gu5.3 12v 6w 30' white led

12 Vdc

30°

Ra >80 IP20 GU5.3 -25°C

+35°C

Characteristic data

Power 6 W 30° beam Dimmable No 12 Vdc input

Base GU5.3 IP 20 Flux 240 lm PF 0.75

Tc 2700 K Ra >80 Axis 700 cd

Dimensional characteristics

Ø 50 mm

Height 49 mm

Lighting and photometric characteristics

30° beam opening

Flux 240 lm

Nominal CCT color temperature 2700K

Light color Warm light

Color rendering index >80

LED L70B20 lifespan

Activation time

Electrical characteristics

Rated power 6W

Input voltage 12 Vdc

Dimmable n

Power Factor (PF) 0.75

Weighted energy consumption 7 kWh/1000h

Operating temperature -25°C / +35°C

Equivalence with incandescent lamp 24

360° operating position

More Infotech

Reflector yes

Standards and Directives

2006/95/EC * Low Voltage IEC/TR 62471-2

2004/108/EC * Electromagnetic Compatibility EN 62031 * year 2009 (+A1:2013)

2011/65/EU * RoHS EN 62560 * year 2013

2012/19/EU * WEEE EN 60968 * year 2013

EN 61547 * year 2010 2010/30/EU * Energy consumption

EN 55015 * year 2014 874/2012 * Regulation for energy labeling

EN 61000-3-2 * year 2007 (+A1/+A2:2011) 2009/125/CE * Eco Compatible Design

EN 61000-3-3 * year 2014 1194/2012 * Eco Compatible Design

EN 62471 * year 2010
