Product details

• code: E8118

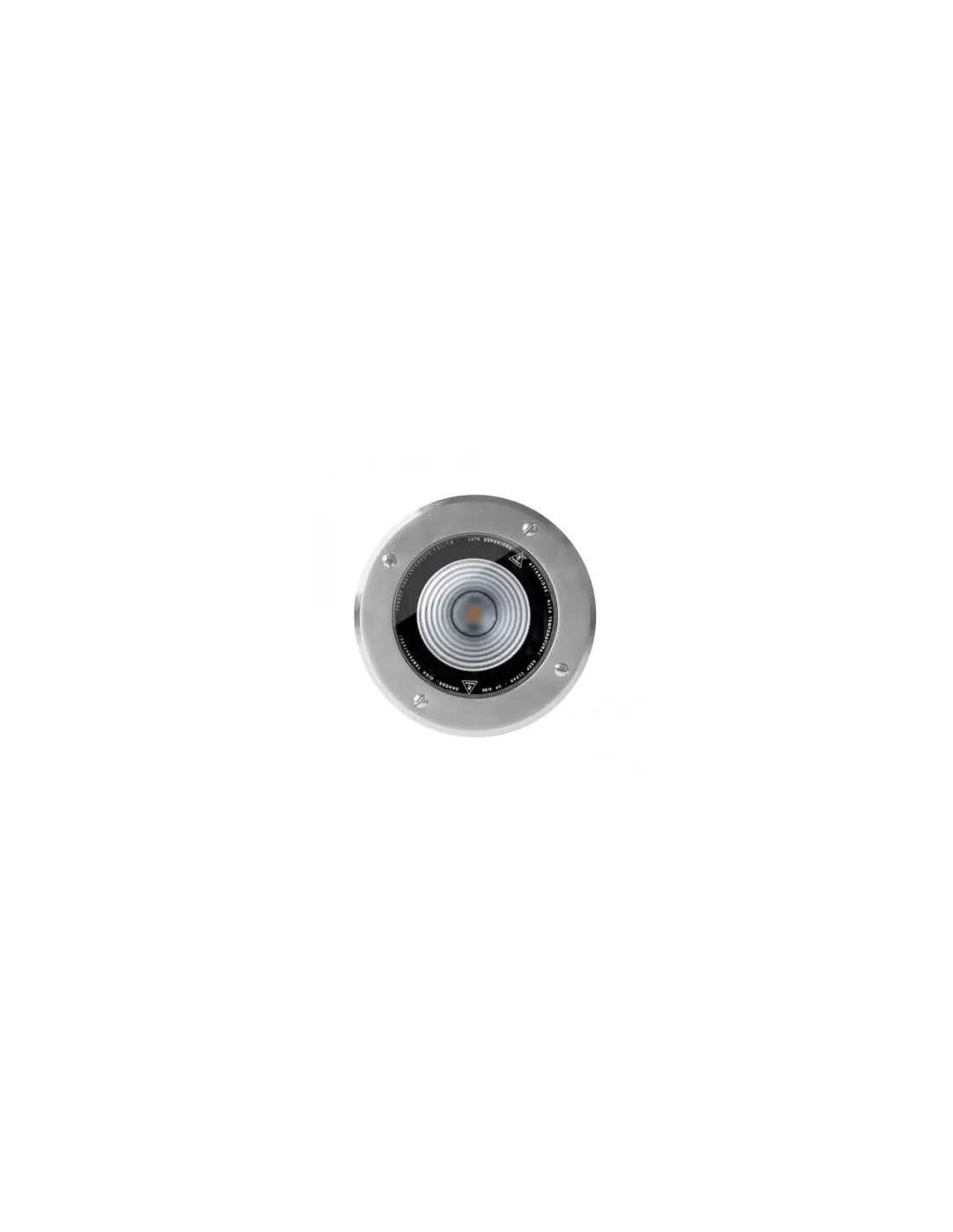

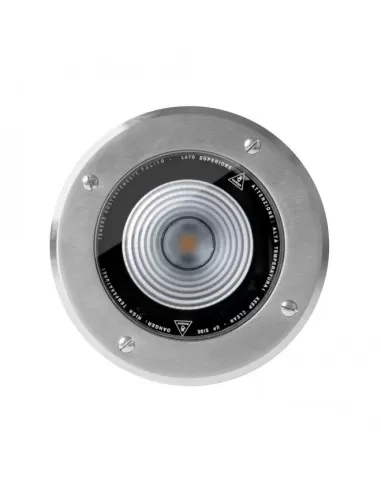

• name: OLODUM STANDARD
• typology: Rotosymmetric - linear ground recessed luminaires
• family: OLODUM / STANDARD
• intended use: External
• installation: Floor recessed
• body / structure:
  Body in die-cast aluminum EN AB-47100 - Ring in stainless steel and wall-mounted formwork in thermoplastic material.
• painting:
  Luminaire body base painted in polyester powder with special treatment for exteriors (sandblasting, pickling, 3 washes, fluorzirconia, epoxy powder primer and surface finish in polyester powder).
• colour: Satin stainless steel
• reflector optics:
  Reflector in 99.8% pure aluminum - Tilting optics
• equipment:
  Silicone rubber gaskets
• glass / screen: Clear tempered glass
• power supply: magnetic ballast, igniter and integrated power factor correction capacitor
• voltage: 230V 50Hz
• light beam: Symmetrical diffusing 30 °
• power factor correction: yes
• insulation class: Class 1
• weight: 3,700 kg
• IP rating: 67
• IK rank: 10
• glow wire: 850 °C
• Note:
  Horizontal lamp
