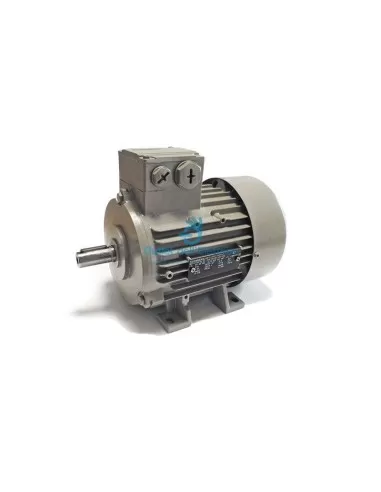

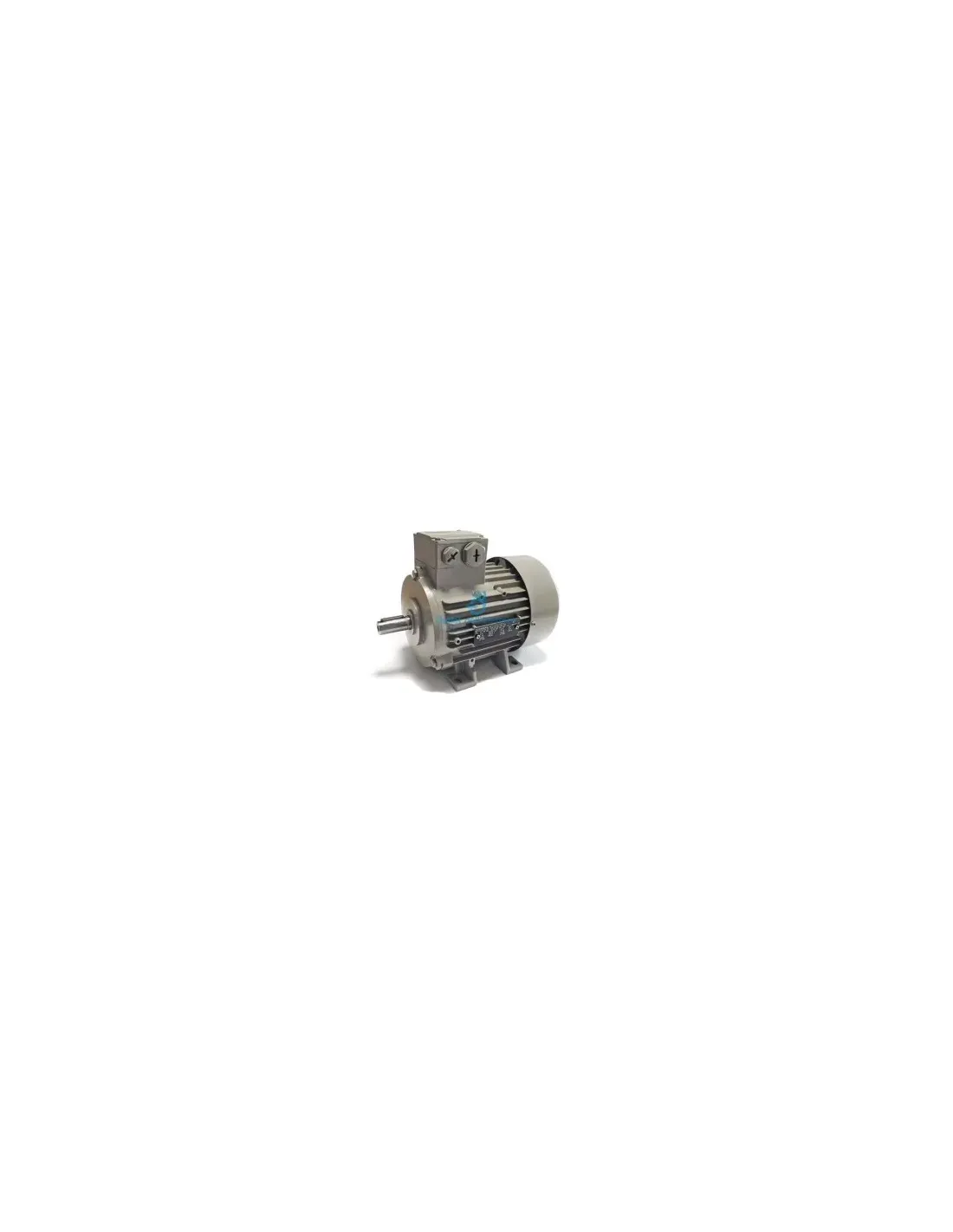

Siemens 1LA70634AB10 Motor 230/400v 0.18kw d/y 50hz 460v y 0.21kw 60hz

• Brand: Siemens
• Model: 1LA70634AB10
• Motor type: Low voltage motor
• Nominal tension:
  • 230/400 Volts at 50 Hz (with D/Y connection configuration)
  • 460 Volts at 60 Hz (with Y connection configuration)
• Power:
  • 0.18 kW at 50 Hz
  • 0.21 kW at 60 Hz
• Rotor type: Squirrel cage rotor
• Degree of protection: IP55
• Speed: 4 poles
• Size: 63M
• Temperature class: 155 (F)
• Case: Aluminium
• Supported connection configurations: 3 AC 50 Hz 230 VD/400 VY and 3 AC 60 Hz 460 VY
• Supported voltages: 220-240/380-420 V at 50 Hz and 440-480 V at 60 Hz
• Mounting configurations: IM B3, IM B6, IM B7, IM B8, IM V5 without cap, IM V6

This motor is part of the SIMOTICS GP series and offers a power range from 0.18 kW to 0.21 kW, with various voltage and frequency configurations supported. Its rugged construction, IP55 rating and high temperature class make it suitable for a variety of industrial applications. Different mounting options make it flexible for installation in different environments and configurations.
