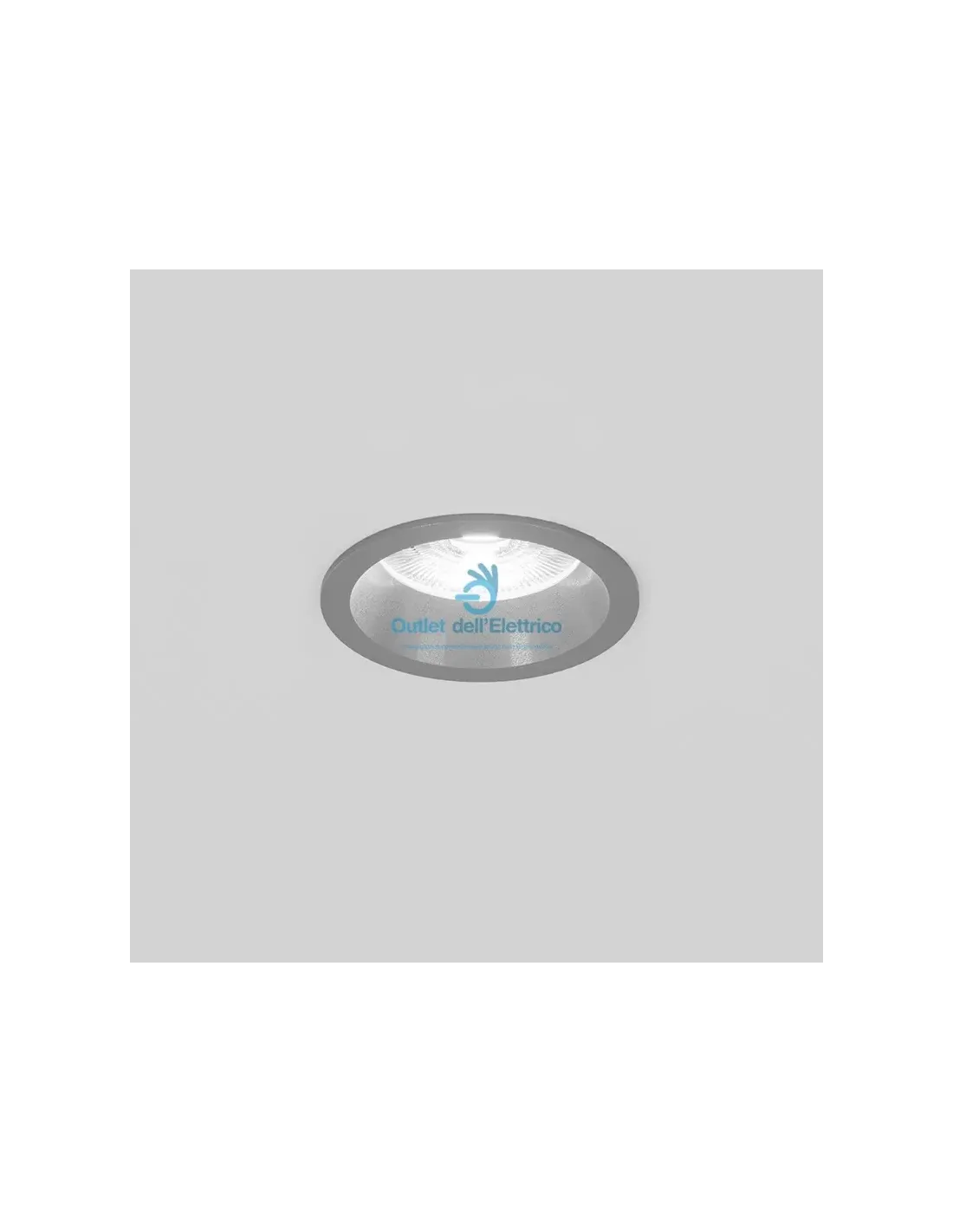

Viabizzuno vb6 607 44 27 m1 adjustable recessed micro Ø84 brass ap-

m1 micro recessed

marionanni

2016

Recessed lighting fixture for ceiling mounting, fixed IP55 also suitable for outdoors or adjustable IP20, made of oxidised aluminium. models with round frame: m1 fixed micro downlight diameter Ø50mm h.80mm , m1 fixed micro downlight diameter Ø70mm h.91mm , m1 adjustable micro downlight diameter Ø84mm h.86mm , m1 adjustable micro downlight diameter Ø104mm h.95mm. models with square frame: m1 fixed micro downlight 50x50mm h.80mm , m1 fixed micro downlight 70x70mm h.91mm , m1 adjustable micro downlight 90x90mm h.100mm , m1 adjustable micro downlight 110x110mm h.108mm. adjustable models with 350° rotation angle on the vertical axis and 25° on the horizontal axis. wired with 2700K and 3000K electronic source up to 16.8W 1791lm. optics: 13° 20° 36° 42° elliptical 43°x18° or diffused light. constant current power supply excluded, to be installed remotely. accessories: brick formwork, honeycomb louvre. finishes: my bianco, nero55 and brass ap-s.
