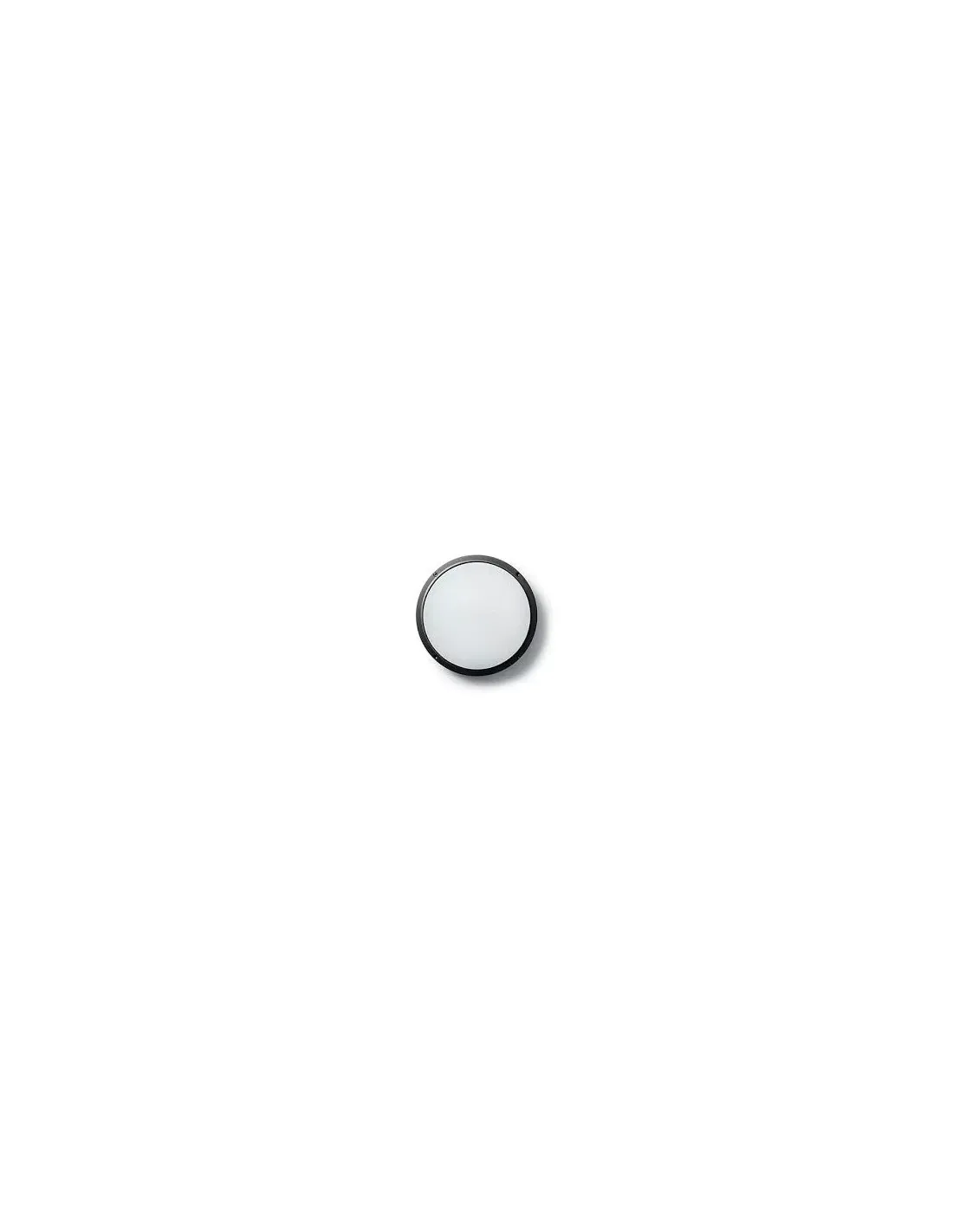

Simes s 6801 01 vedo round-plaf sandblasted glass e27 100w ip55 white

S.6809

I SEE ROUND

-TYPE

Wall mounted fixture.

IP 55 protection rating

-CHARACTERISTICS OF THE MATERIALS

High quality EN AB-47100 primary die-cast aluminum body

resistance to oxidation.

Tumbling process to prepare for the painting phase.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Dutral gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 06

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure anodized and polished aluminium.

Protective diffuser in sandblasted glass (Diffuser in opal polycarbonate

anti-vandalism available on request.

Light source with fixed lamp position.

Yield 56%

-WIRING

Double power cable entry with cable gland.

Insulation class: CLASS I

Available colors: WHITE (cod.01), BLACK (cod.09), ALUMINUM GRAY

(code 14)

Weight: 2.68 kg

Glow wire test: 850°C

Lamps supplied only on request
