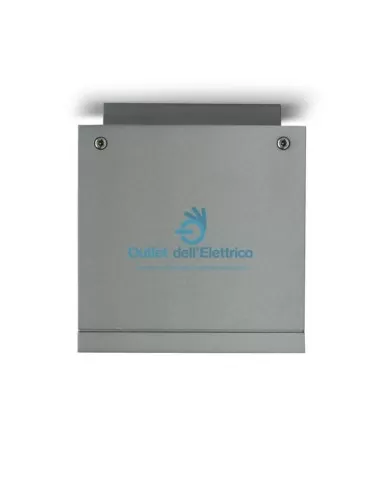

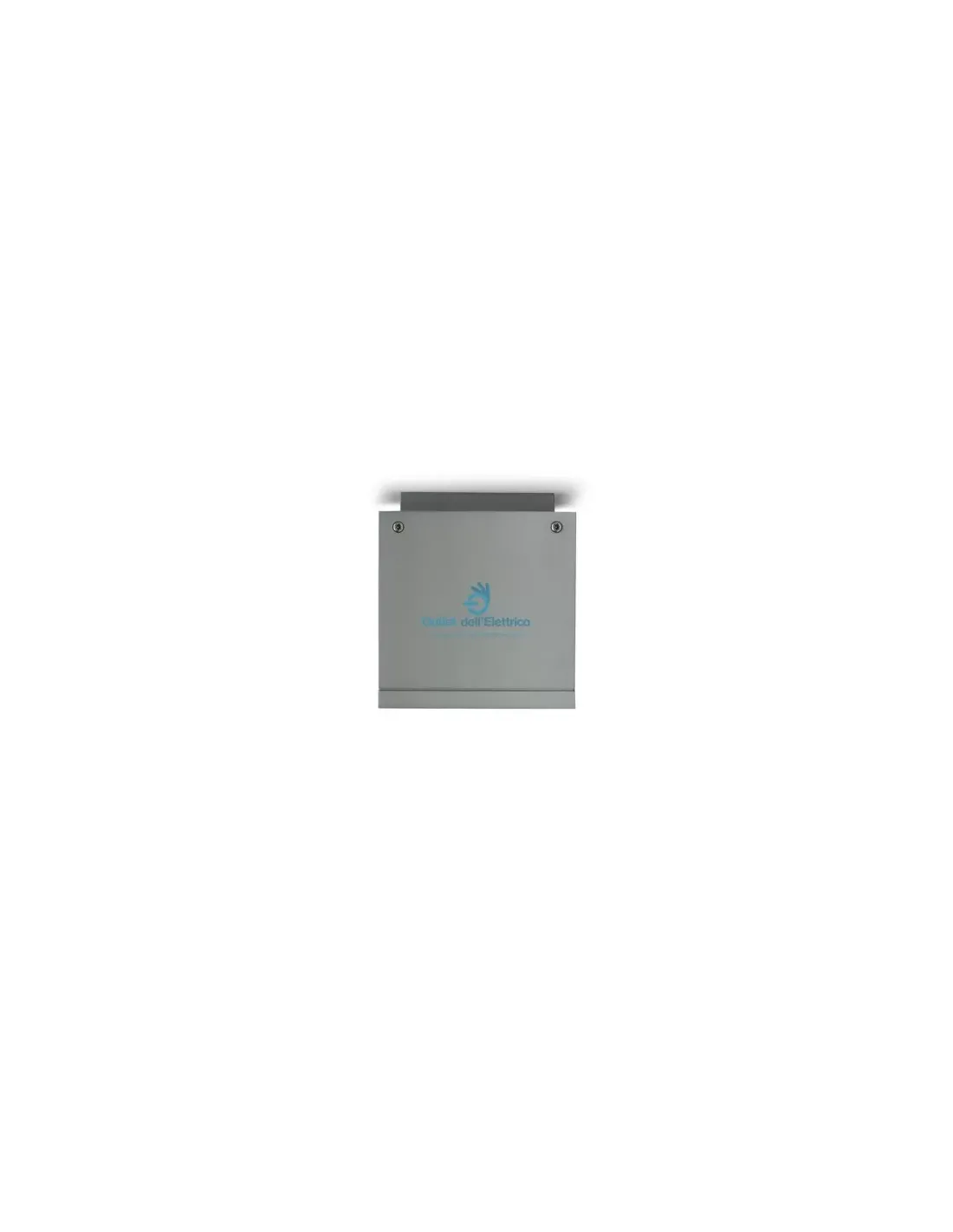

SQUARE LOFT CEILING
Art. S.6675N
9 LED 4000K MODULE
Technical Data Light Source
| Light source type: |
LEDs |
| Color temperature: |
4000K |
| Source luminous flux: |
2880lm |
| Luminaire luminous flux: |
1348lm |
| Source power: |
19.5W |
| Total power absorbed by the appliance: |
21.5W |
| Luminaire luminous efficiency: |
63lm/W |
| ULR: |
0% |
| CIE Flux Code: |
99 100 100 100 100 |
| Color rendering index: |
CRI 80 |
| Color match standard deviation: |
MacAdam step 3 |
| Optical possibilities on request: |
12°, 63°, 10°x44° |
Technical data Power supply
| Voltage (AC): |
220-240Vac |
| Frequency (AC): |
50/60Hz |
| Voltage (DC): |
176-276Vdc (No PUSH DIM) |
| Dimming: |
FROM THERE; DALI2; PUSH PUSH synchronization: - Max 4 products, distance |
| Inrush Current: |
20A 25µsec |
| Max number of pieces for B16A type thermomagnetic switch: |
80 |
| Max number of pieces for C16A type thermal magnetic switch: |
136 |
| Overvoltage protection (between L-N): |
1kV |
| Overvoltage protection (between L/N-PE): |
2kV |
Technical Data Temperatures and Duration
| LED lifespan: |
L80 B10 70.000h Ta 25°C L80 B10 50.000h Ta 40°C |
| DEVICE lifespan: |
min. 70,000h Ta 25°C min. 50,000h Ta 40°C |
| Performance ambient temperature: |
Tq 25°C |
| Operating ambient temperature: |
from -20°C to +50°C |
| Storage temperature: |
from -20°C to +60°C |
Technical Data Installation
| Electrical insulation class: |
THE |
| IP protection rating: |
IP65 |
| Impact resistance: |
IK06 |
| Weight: |
3.7906Kg |
PRODUCT DESCRIPTION
TYPE
Downlight fixture. IP 65 protection rating
CHARACTERISTICS OF THE MATERIALS
EN AB-47100 die-cast aluminum structure with low copper content and high resistance to oxidation. Tumbling process to prepare for the painting phase. A4 stainless steel screws with a high molybdenum content of 2.5-3%. Gaskets in annealed silicone.
Extra-resistant double painting carried out in 3 phases:
1) BONDERITE treatment with chemical protection of metal-free fluozirconic material containing ceramic nanoparticles that create a cohesive, inorganic, high density layer. 2) PRE-POLYMERISATION cycle with application of the epoxy primer with characteristics of overpainting on the device and high resistance to oxidation thanks to the presence of zinc. 3) POLYMERIZATION cycle with the application of polyester powder with high characteristics of resistance to UV rays and atmospheric agents, with resistance to the salt spray test of 1200h. Mechanical resistance IK 06
LIGHTING PERFORMANCE
Miniloft Soffitto S.6646W and S.6646N available from 12/2019 with new comfort optics. Loft Soffitto S.6675W and S.6675N available from 11/2019 with new comfort optics.
Optical reflector in 99.98% pure anodized aluminium, turned, anodized and polished (versions with TC and HIT bulb). Transparent tempered protective glass. Light source, with tilting lamp position ±15°. Yield --
INSTALLATION AND MAINTENANCE
MICROLOFT cable @@{TipoCavo}@@ resined and pre-wired. MINILOFT and LOFT with pre-wired base and disconnect switch make installation and maintenance operations easier and safer.
WIRING
Single entry for power cables .
Insulation class: CLASS I
Available colors: White (cod.01), Aluminum gray (cod.14), Anthracite gray (cod.24) Weight: 3.7906 Kg Glow Wire test: --
Luminaires supplied complete with LED module
LOFT REGISTERED MODEL
This device is equipped with integrated LED modules. In case of damage or malfunction, contact the manufacturer to receive additional instructions on how to replace the LED module and related components. The LED module of this device cannot be handled by the end user (EU Regulation 874/2012).
This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labeling): E.
LED module designed in accordance with the current regulation of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where the light quality is reliable for the life of 70,000 hours traceable to L80 B10 Ta 25°C (50,000 hours traceable to L80 B10 Ta 40°C). Appliance lifespan min. 70,000 hours Ta 25°C, min. 50,000 hours Ta 40°C. Performance ambient temperature Tq 25°C. Operating ambient temperature from -20°C to +50°C. Storage temperature from -20°C to +60°C.
ELECTRONIC EQUIPMENT SENSITIVE TO OVERVOLTAGE.
It is recommended to install "SPD" surge protection devices in the electrical system. Protective devices prevent the intensity of these phenomena, protecting the devices from the risk of being damaged and prolonging their life. Outdoor lighting fixtures are subject to all types of permanent, temporary or transient electrical disturbances. Such disturbances can create permanent damage or failures that compromise performance and life. The surge protection device (supplied by SIMES) is used to limit the destructive effect of these phenomena. For each lighting fixture, a protection device must be provided at a distance of no more than 10m. For correct coordination of protections, a protection device against overvoltages must also be provided inside the electrical power panel of the system (the choice of the latter is the responsibility of the designer and is not provided by SIMES).
