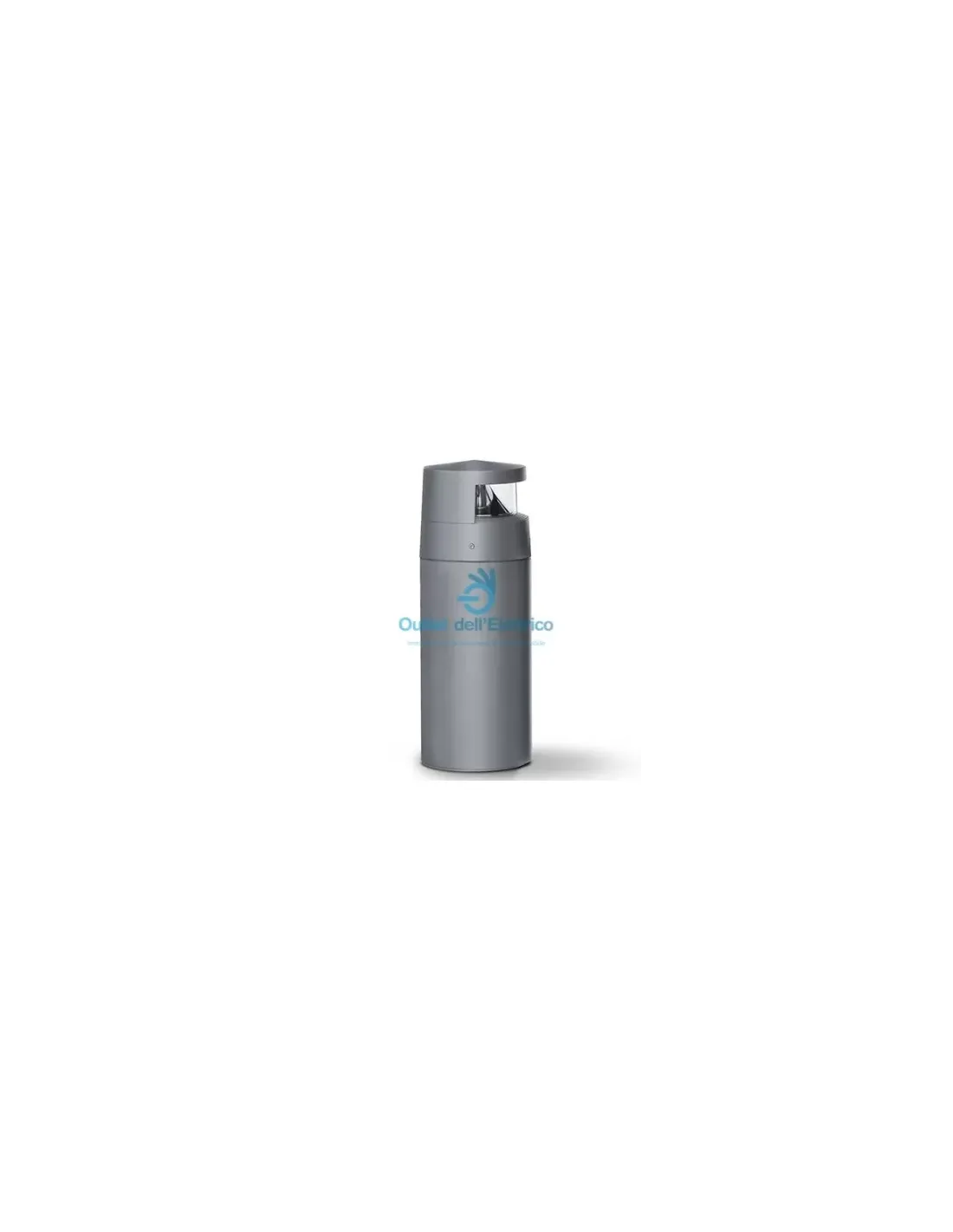

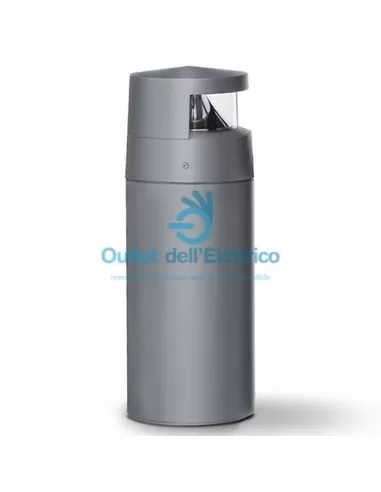

Simes s 5268 14 reef pole d 180 hit-cri 70w g12 gray

S.5268

REEF STAKE

-TYPE

Floor installation table.

IP 65 protection rating

-CHARACTERISTICS OF THE MATERIALS

Body in EN AB-47100 primary die-cast aluminum and EN extruded aluminium

AW-6060 with high oxidation resistance.

Tumbling process to prepare for the painting phase.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 10

-LIGHTING PERFORMANCE

Double optical reflector in 99.98% pure aluminum turned, anodized and

polished.

UV stabilized transparent polycarbonate diffuser, with

control of the light directed downwards and vandal-proof.

Light source, with fixed lamp position.

Yield 24%

Compact electronic ballast for longer life and stability

lamp and reduced energy consumption.

-WIRING

Double entry with power cables with PG 16 cable glands (Ø 10÷14

mm).

Insulation class: CLASS II

Available colors: ALUMINUM GRAY (cod.14), CORTEN RUST

(code 18)

Weight: 13.67 kg

Glow wire test: 850°C

Luminaires supplied complete with lamp

S.5268 ACCESSORIES FOR REEF BOLLARD S.5203 FLANGE FOR GROUND APPLICATION Flange Ø 250mm h 225mm to be cemented with stainless steel screws for fixing to the ground. The dimensions of the plinth must be optimized according to the consistency of the ground, following the indications of the UNI EN 40 regulations.
