Simes s 4590 19 microplug-rectangular white LED 230v flat diffuser

S.4590.19

LED MICROPLUG 230V FLAT DIFFUSER

-TYPE

Appearance of wall installation.

IP 65 protection rating

-MATERIAL CHARACTERISTICS

Polycarbonate structure.

Front in AISI 316L stainless steel, 3 mm thick.

Zinc alloy counter ring.

Preparation of the slime for preparation during the painting phase.

A4 stainless steel screws has a high molybdenum content 2.5-3%.

Silicone ricotta gaskets.

Extra resistant double painting carried out in 3 steps:

1) BONDERITE treatment with chemical protection of the materials

Fluozirconic private metallic content of ceramic nanoparticles and that

create a cohesive, inorganic, high-density layer.

2) PREPOLYMERIZED cycle with application from the bottom

possible with reliability characteristics of all devices and

Raise the resistance to the possible resistance due to the pressure of the zinc.

3) POLYMERIZATION cycle with application of polyester powder

with high resistance to UV rays and atmospheric agents,

with salt temperature test resistance of 1500h.

Mechanical resistance of glass IK 09

-LIGHTING PERFORMANCE

Diffused in methacrylate.

Very bright, with the lamp in the correct position.

Return --

-INSTALLATION AND HANDLING

The wall-mounting boxes are supplied with the appliances and

a wire must be installed in the wall.

The front ring is made of AISI 316L stainless steel with a

one click system, without the use of screws, allowing a design

captivating with great cleanliness of shape.

All MICROPLUG products are also equipped with clips for

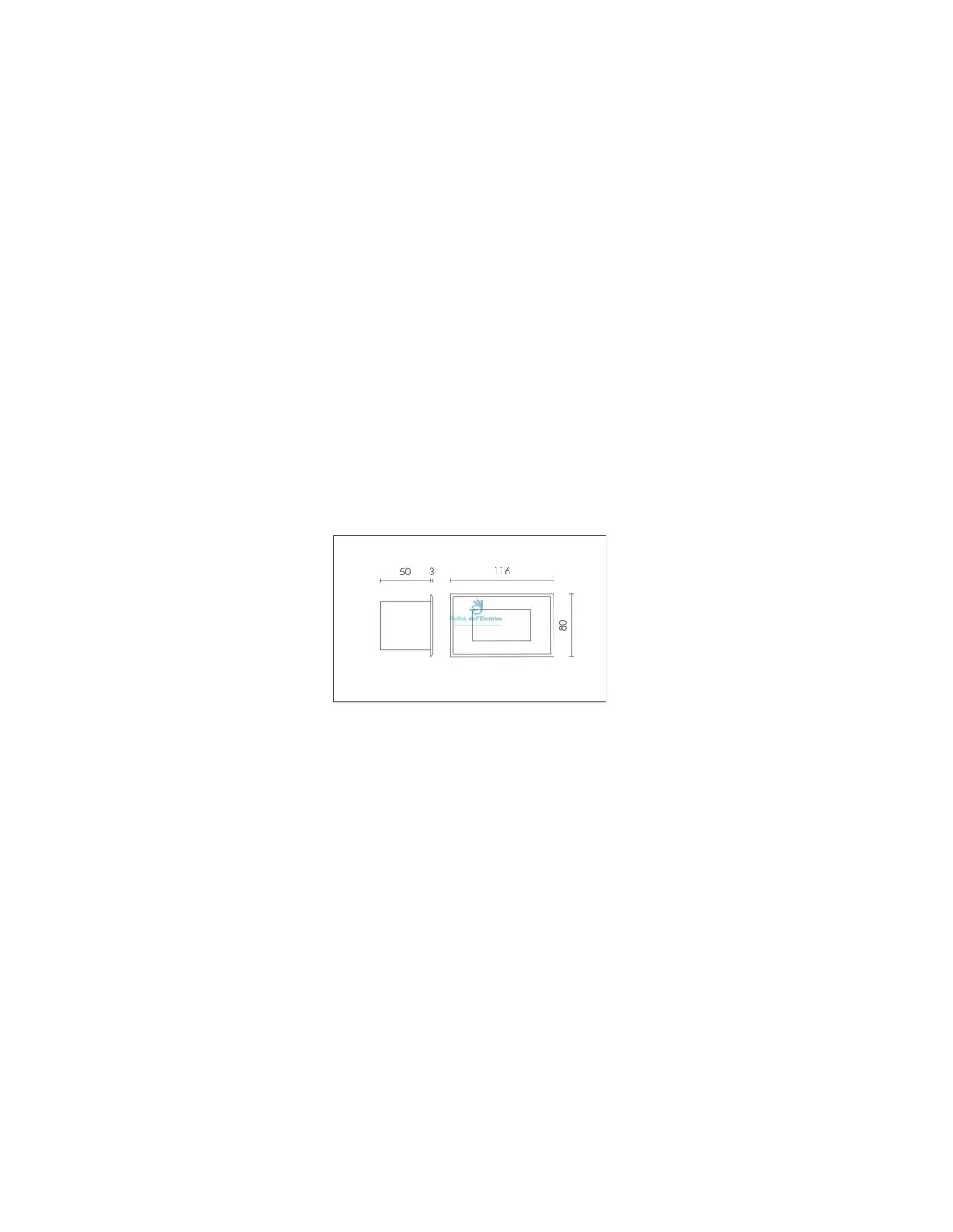

installation in part and false ceilings. The life of the wall must be be

between 5 and 20 mm: ROUND MICROPLUG hole Ø60 mm,

SQUARE MICROPLUG hole 60x60 mm, MICROPLUG

RECTANGULAR hole 57x94 mm.

-WIRING

Appears with cables.

Insulation class: CLASS II

Color available: INOX (cod.19)

Weight: 0.63Kg

Glow wire test: 850°C

luminaires supplied complete with LED circuit with emission class

1 (CEI EN 60825-1:2003-02)
