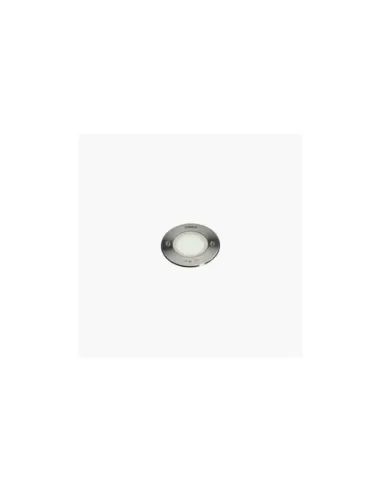

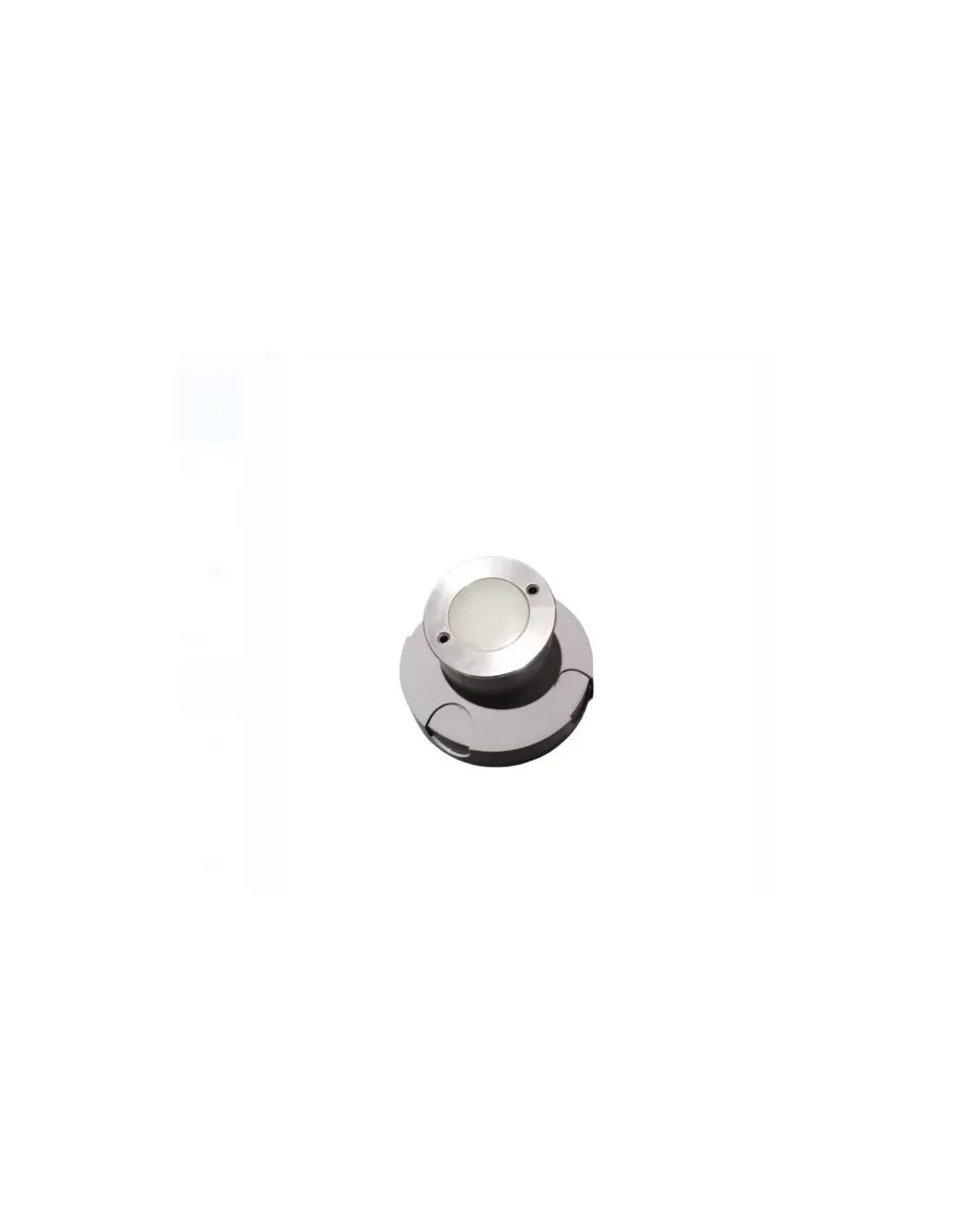

Simes s.3437.19 Flat microled with blue led 1.5W 24V stainless steel

S.3437.19

MICROLED

-TYPE

Walkable luminaire for ground installation.

Depth 75mm.

IP 67 protection rating

-CHARACTERISTICS OF THE MATERIALS

Body in EN AB-44100 "Copper Free" primary die-cast aluminium

with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

Front finishing ring 2 mm thick. made of AISI stainless steel

316L with a high molybdenum content 2.5-3%.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 09

Maximum load 1000 kg

-LIGHTING PERFORMANCE

Polycarbonate diffuser.

Light source, with fixed lamp position.

Yield --

-LOW SURFACE TEMPERATURE

Glass temperature 39°C (Ta 25°C)

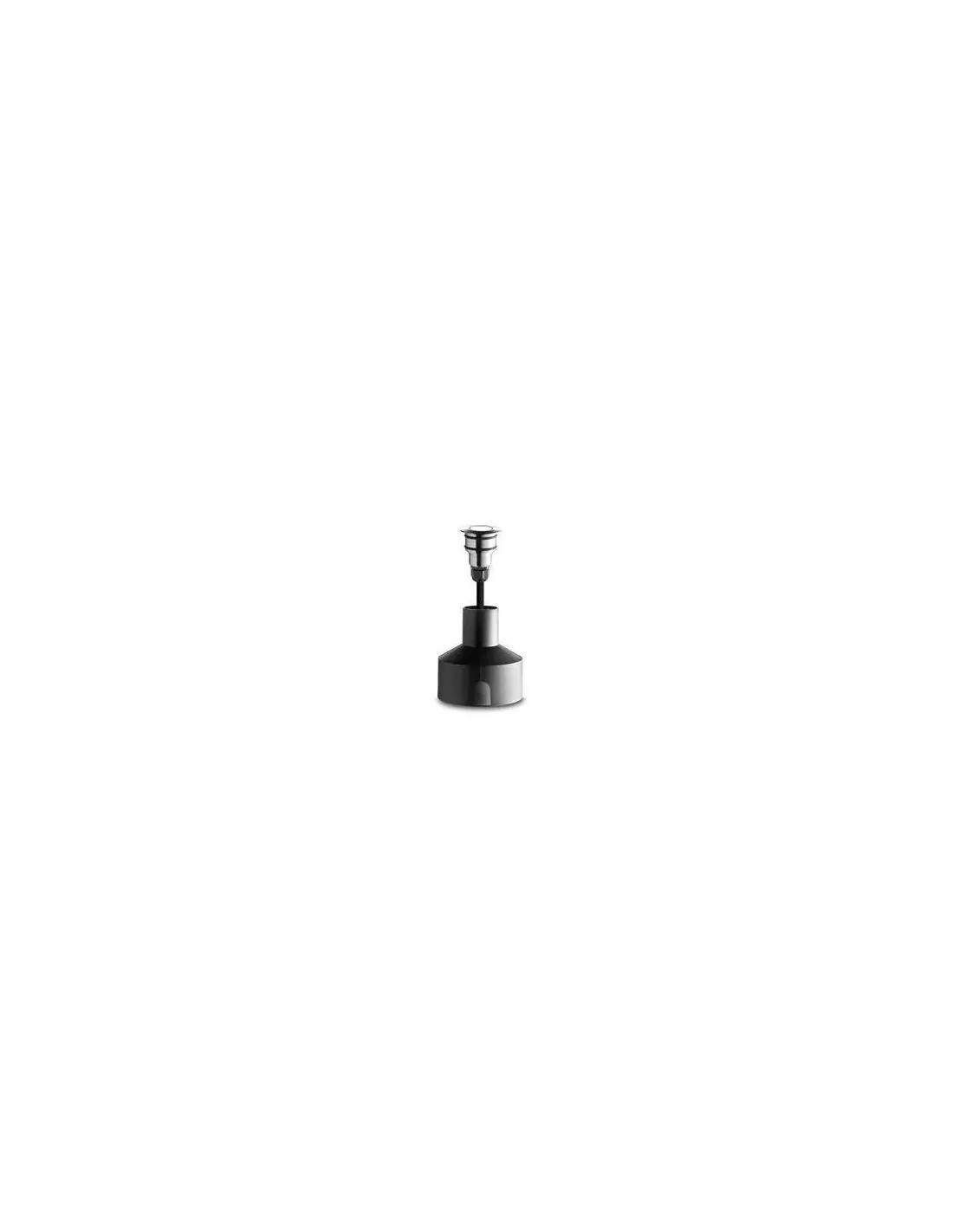

-FORMWORK FOR INSTALLATION AND MAINTENANCE

Supplied with polypropylene formwork designed for cable entry

which allows you to:

1) perform easy wiring;

2) house the IP67 quick connector;

3) easily remove the appliance for maintenance.

-WIRING

The LED is mounted on the electrical circuit and is connected to an electrical cable.

It is then inserted into two technopolymer shells sealed by ad waves

ultrasound.

Section of H07RN-F type power cable closed and sealed with

two-component epoxy resin and internally wired.

The M20 (Ø 6÷12 mm) IP67 quick connector is supplied for

single pass-through connection, to be housed inside the formwork.

Also supplied with clips for installation on walls, countertops and floors

floating.

Insulation class: CLASS III

Available colors: INOX (cod.19)

Weight: 0.45Kg

Glow wire test: 960°C

Luminaires supplied complete with LED circuit with emission class

1 (CEI EN 60825-1:2003-02)

S.3437.19 ACCESSORIES FOR MICROLED S.3400 POWER SUPPLY FOR LED 24V IP20 POWER SUPPLY 10W 24V CC Input: 230V Alternating Current Output: 24V Direct Current Dimensions: 120 x 35 x 20 mm.

S.3401 POWER SUPPLY IN BOX FOR LED 24V BOX IP55 10W 24V CC (S.3400 electronic ballast included) Dimensions: 200 x 200 x 90 mm. Incoming: No. 4 PG11 cable glands Outgoing: No. 6 PG11 IP55 CLASS II cable glands
