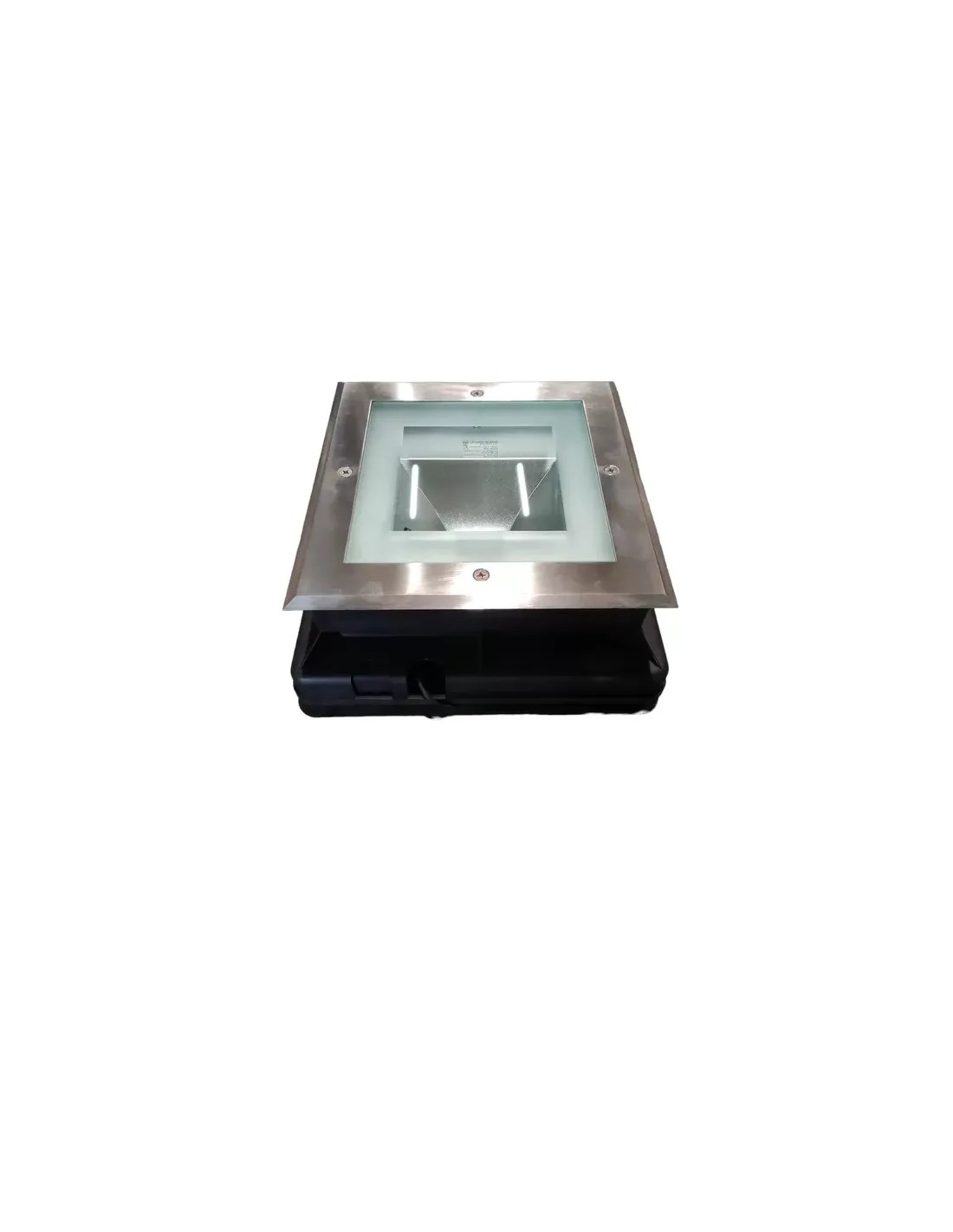

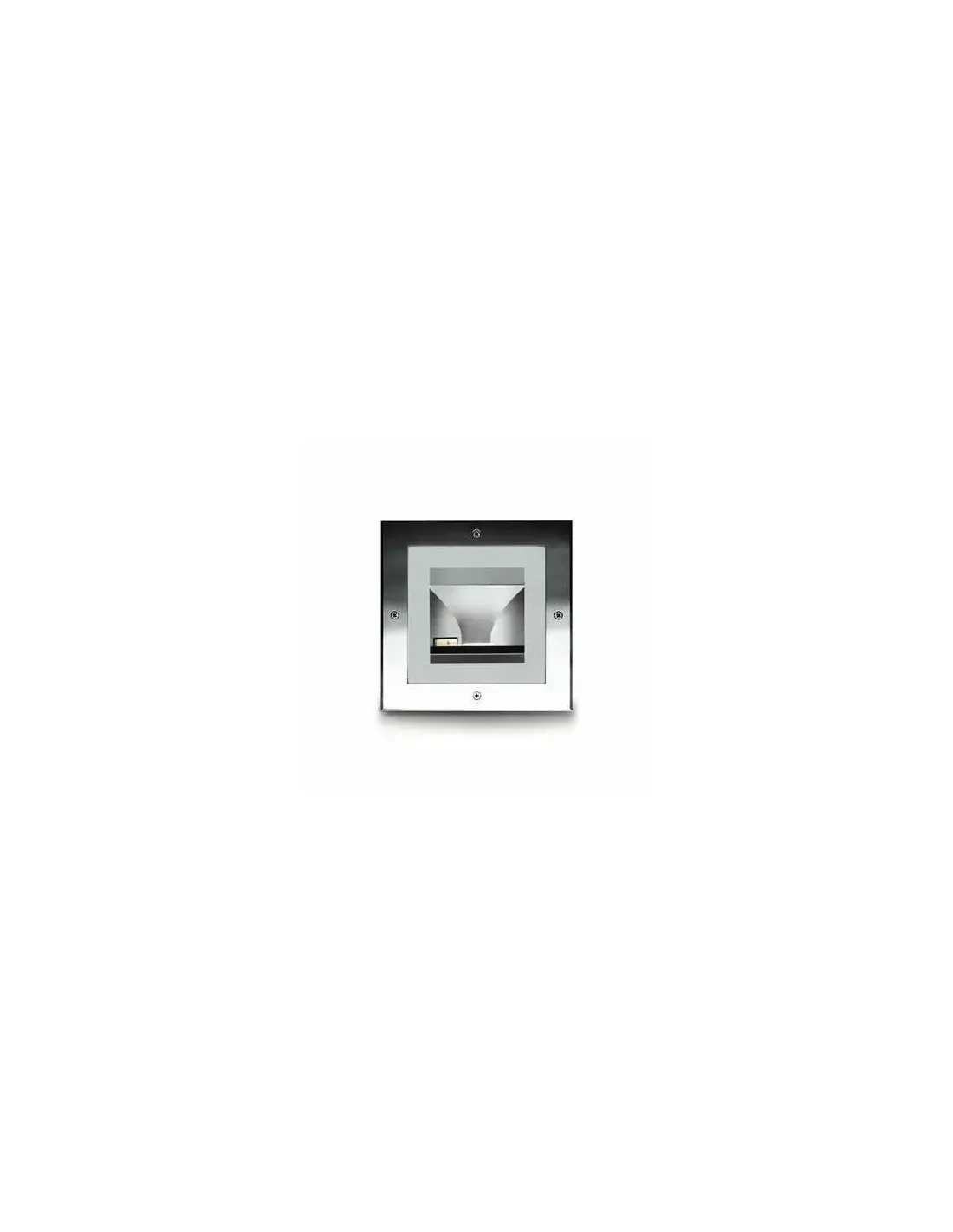

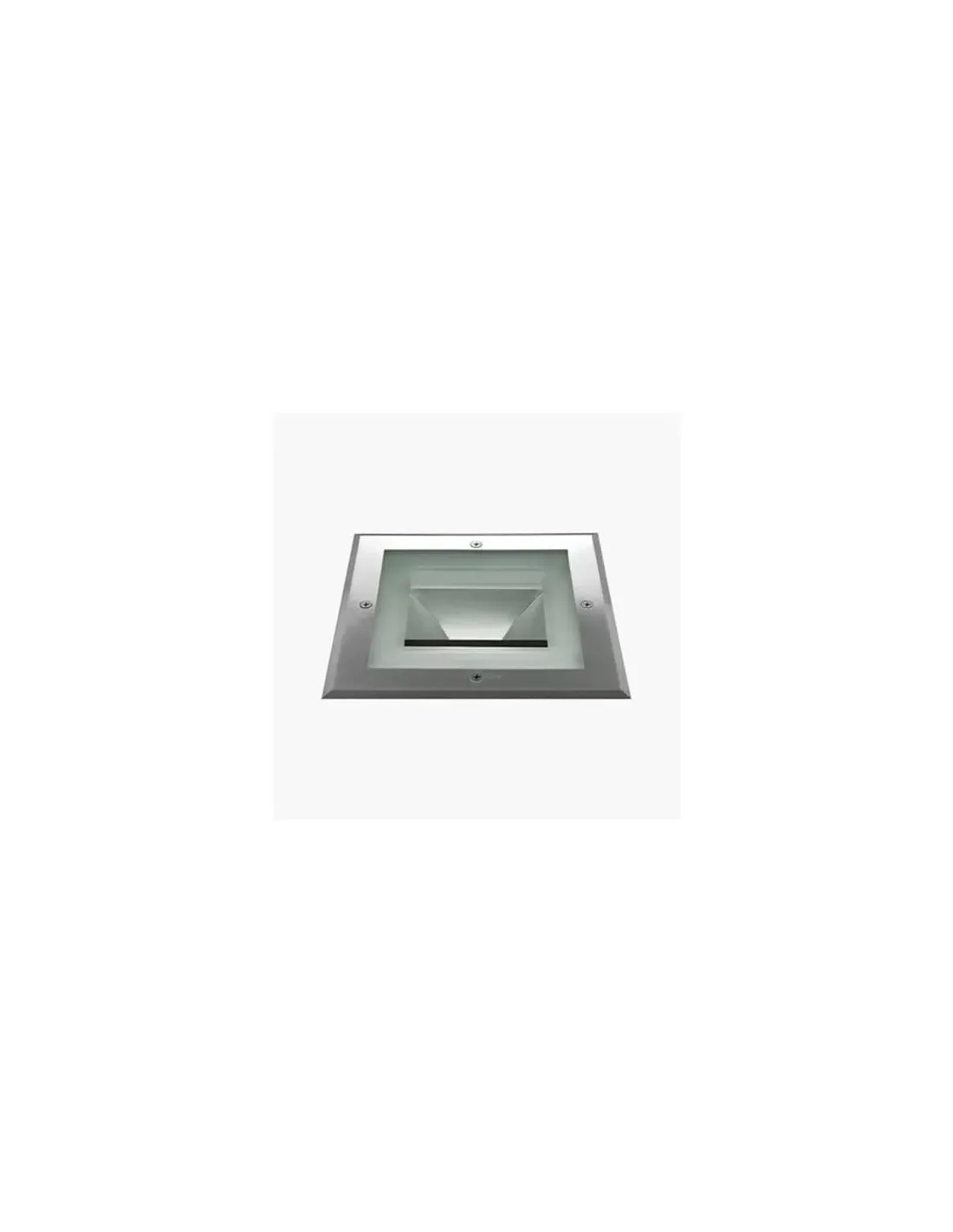

Simes S.5147.19 Compact 280mm quad.+hit-tc cri 35w stainless steel

S.5147.19

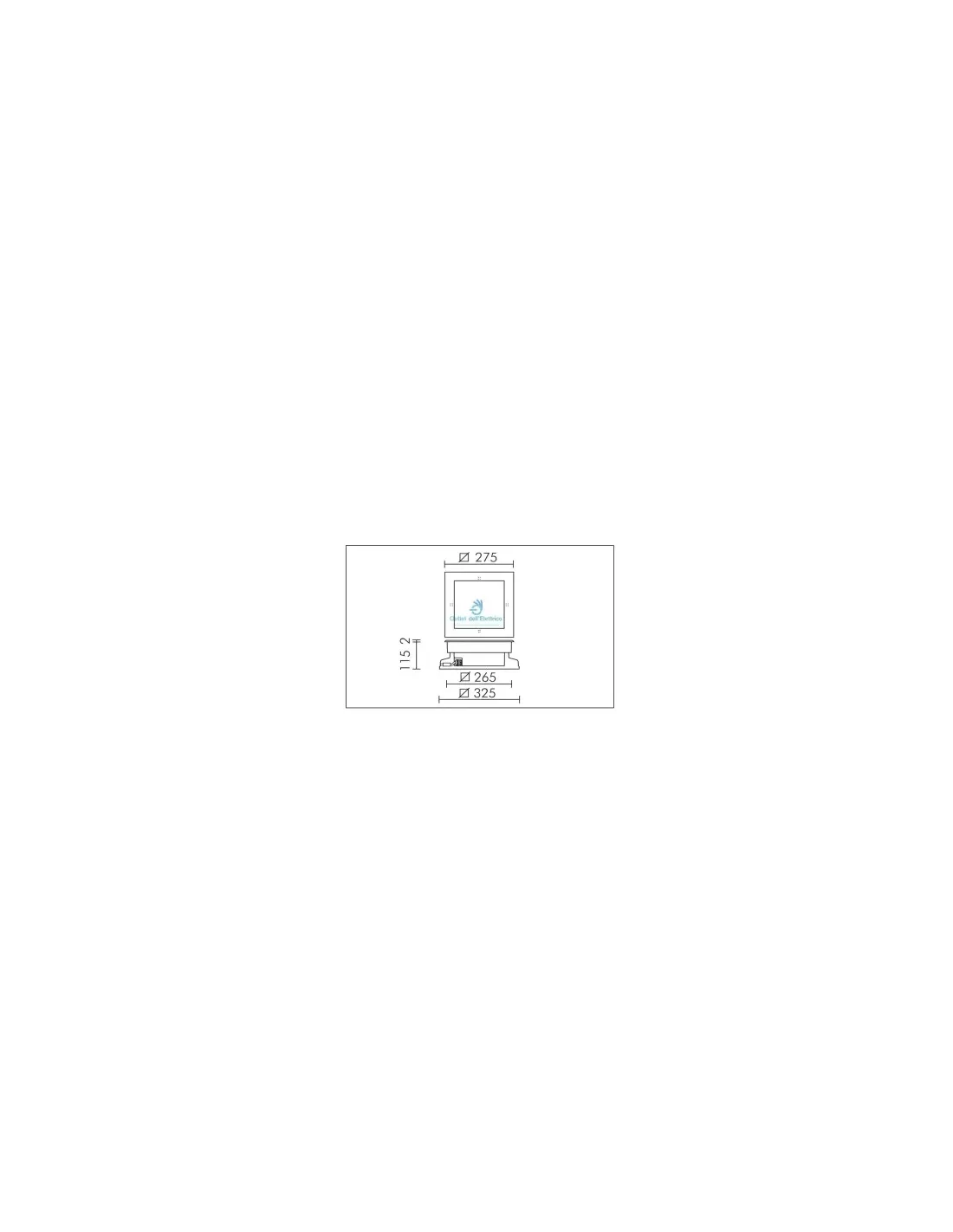

COMPACT SQUARE 275 mm

-TYPE

Walkable luminaire for ground installation.

Depth 115mm.

IP 67 protection rating

-CHARACTERISTICS OF THE MATERIALS

Body in EN AB-44100 "Copper Free" primary die-cast aluminium

with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

Front finishing ring 2 mm thick. made of AISI stainless steel

316L with a high molybdenum content 2.5-3%.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 09

Maximum load 1000 kg

-LIGHTING PERFORMANCE

MIRO 2000 GP optical reflector in 99.85% pure aluminium.

12 mm thick tempered semi-etched safety glass. of type

sodium calcium Weissglass with high transmittivity value +12% (compared to

to a common glass).

Light source, with fixed lamp position, shielded by a fin

made of metal to reduce glare.

Yield 59%

Compact electronic ballast for longer life and stability

lamp and reduced energy consumption.

-LOW SURFACE TEMPERATURE

Weissglass glass capable of absorbing less energy than glass

traditional thanks to the high transmittivity.

Glass temperature 87°C (Ta 25°C)

Electronic ballast with less heat development.

Optimizing the layout of components within the product allows this

excellent heat dissipation keeping the internal temperature within

permissible limits.

Heat sink fins located in the lower part of the aluminum body.

Shielded light source via metal fin for dispersion

sideways the heat generated by the bulb.

-FORMWORK FOR INSTALLATION AND MAINTENANCE

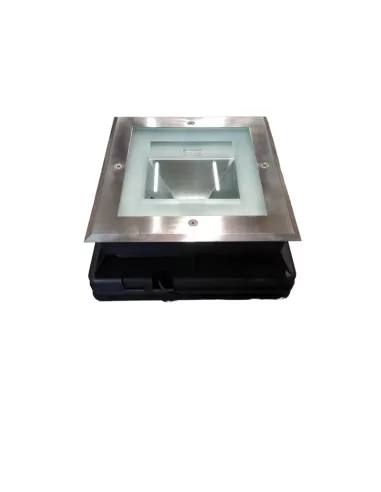

Supplied with polypropylene housing designed for cable entry

4 sides which allows you to:

1) perform easy wiring;

2) house the IP68 quick connector;

3) easily remove the appliance for maintenance.

-WIRING

Piece of H07RN-F type power cable closed via the

PG 13.5 cable gland (Ø 6÷12 mm), sealed with epoxy resin

two-component and internally wired with cables covered by sheaths

protective silicone glass socks.

The M20 (Ø 5÷14 mm) IP68 quick connector for

single pass-through connection, to be housed inside the formwork.

Changing the headlamp without completely removing the device.

Insulation class: CLASS I

Available colors: INOX (cod.19)

Weight: 5.7 kg

Glow Wire Test: --

Luminaires supplied complete with lamp.
