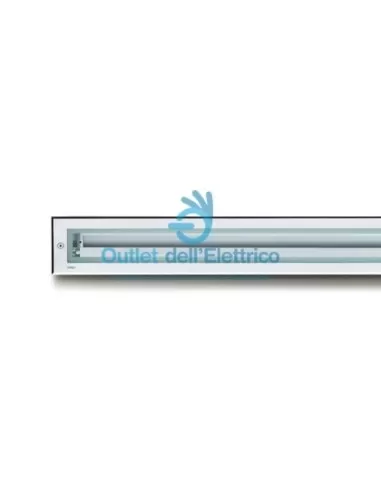

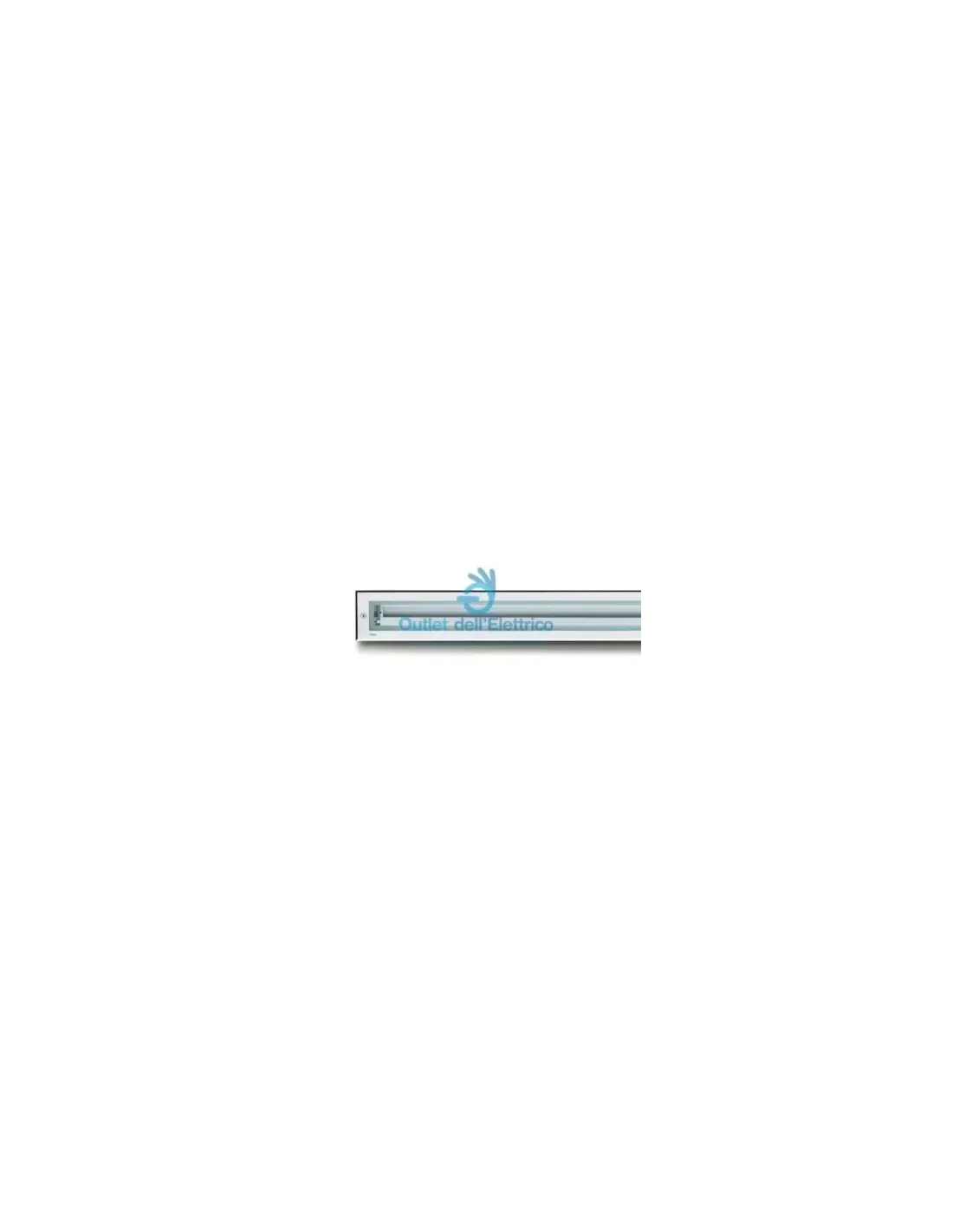

Simes S.5933.19 Linear walkover+t5 21w asymmetric stainless steel

S.5933.19

LINEAR

-TYPE

Walkable luminaire for ground installation.

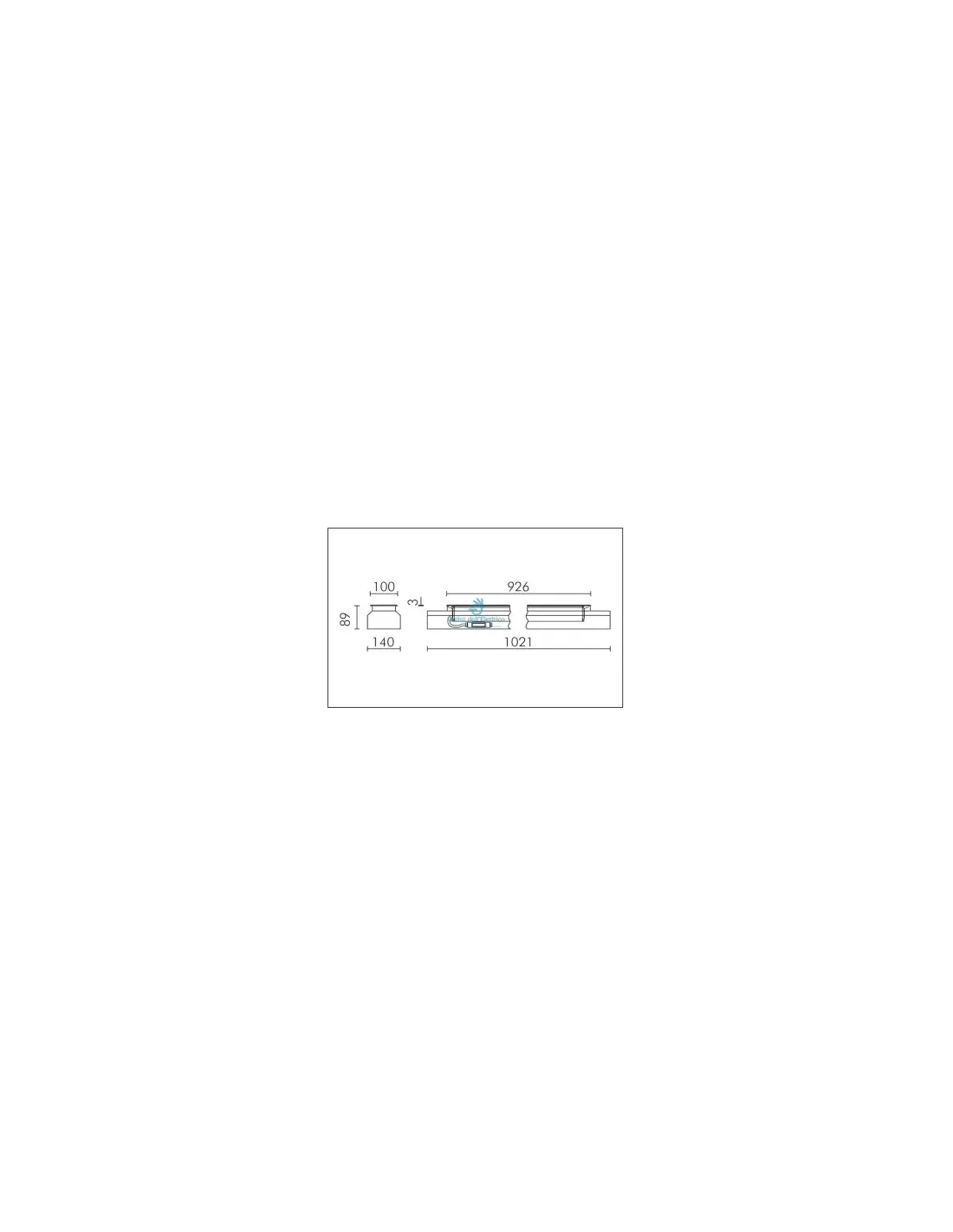

Depth 89mm.

IP 67 protection rating

-CHARACTERISTICS OF THE MATERIALS

Body in EN AB-44100 "Copper Free" primary die-cast aluminium

with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

Front finishing ring 3 mm thick. made of AISI stainless steel

316L with a high molybdenum content 2.5-3%.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 09

Maximum load 500 kg

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure anodized and polished aluminium.

Transparent tempered protective glass 10 mm thick.

Light source, with fixed lamp position.

Yield 27%

Compact electronic ballast for longer life and stability

lamp and reduced energy consumption.

-LOW SURFACE TEMPERATURE

Glass temperature 58°C (Ta 25°C)

Electronic ballast with less heat development.

Optimizing the layout of components within the product allows this

excellent heat dissipation keeping the internal temperature within

permissible limits.

-FORMWORK FOR INSTALLATION AND MAINTENANCE

AISI 316L stainless steel formwork designed for cable entry

which allows you to:

1) perform easy wiring;

2) house the IP68 quick connector;

3) easily remove the appliance for maintenance.

-WIRING

Piece of H07RN-F type power cable closed via the

PG 13.5 cable gland (Ø 6÷12 mm), sealed with epoxy resin

two-component and internally wired with cables covered by sheaths

protective silicone glass socks.

The M20 (Ø 5÷14 mm) IP68 quick connector for

single pass-through connection, to be housed inside the formwork.

Side lamp change without removing the diffuser.

Insulation class: CLASS I, CLASS II (on request)

Available colors: INOX (cod.19)

Weight: 9.24 kg

Glow wire test: 750°C

Luminaires supplied complete with lamp.

QUICK CONNECTOR INCLUDED
