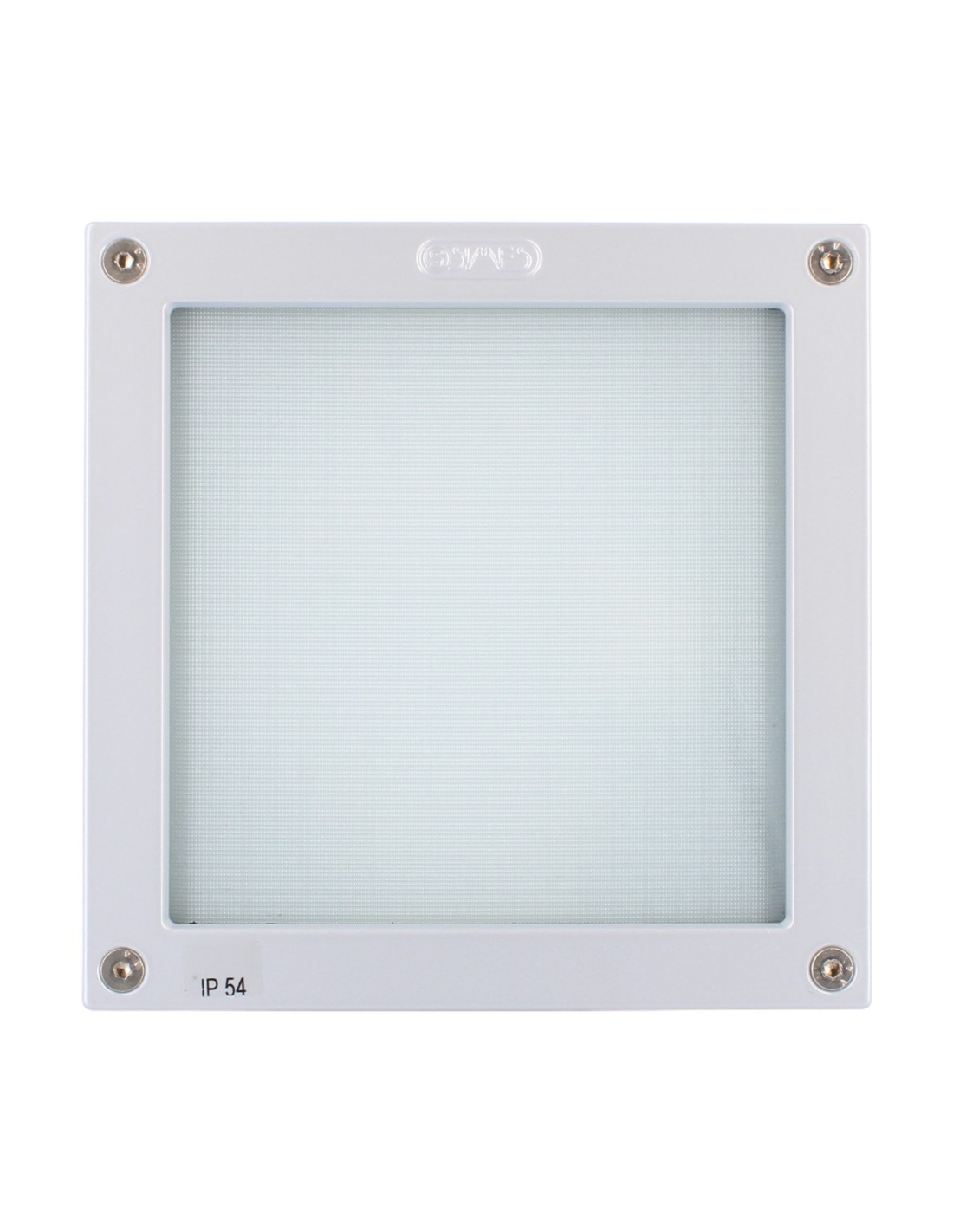

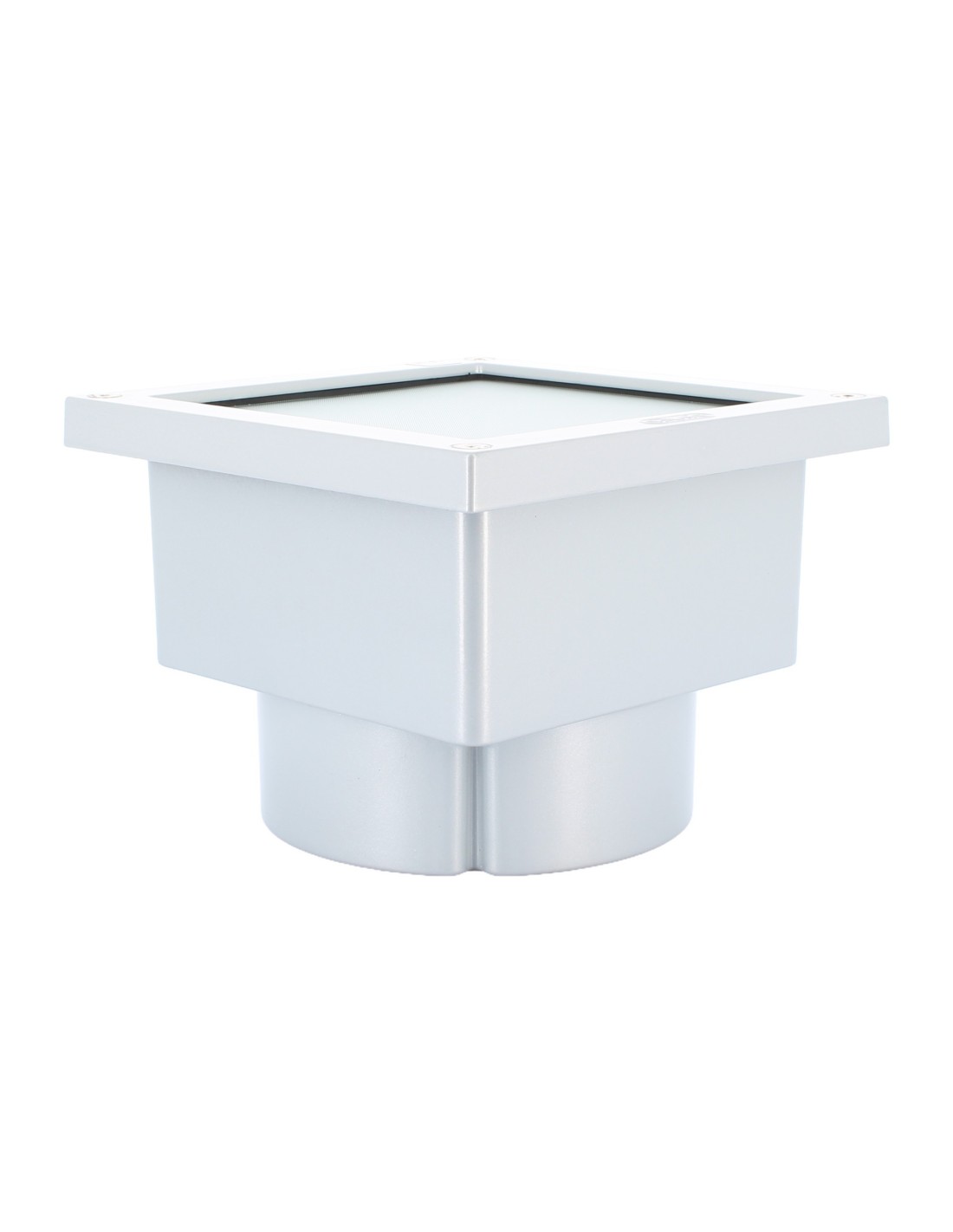

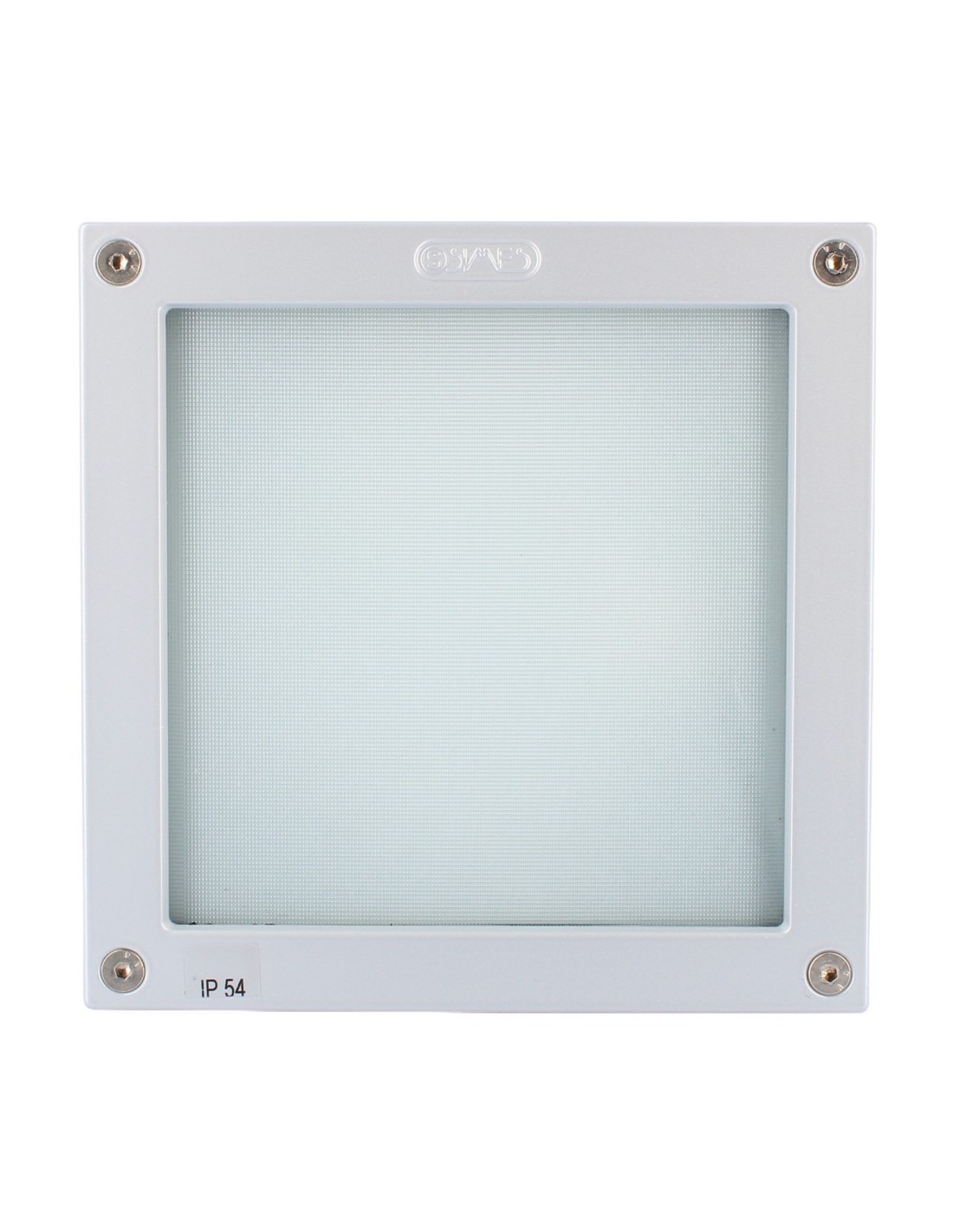

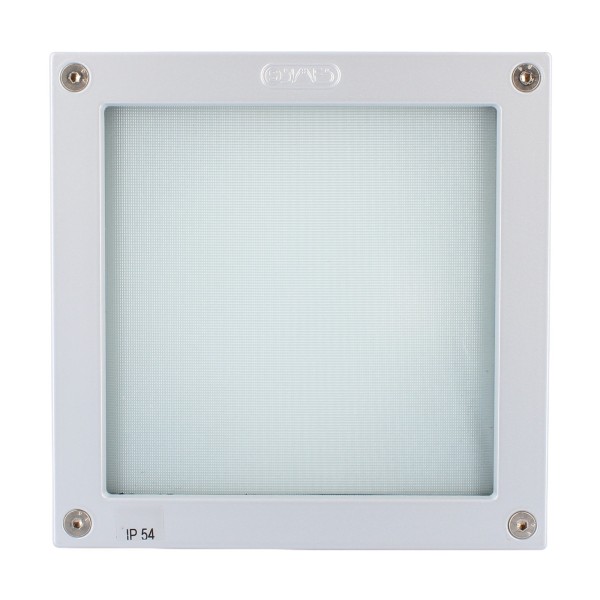

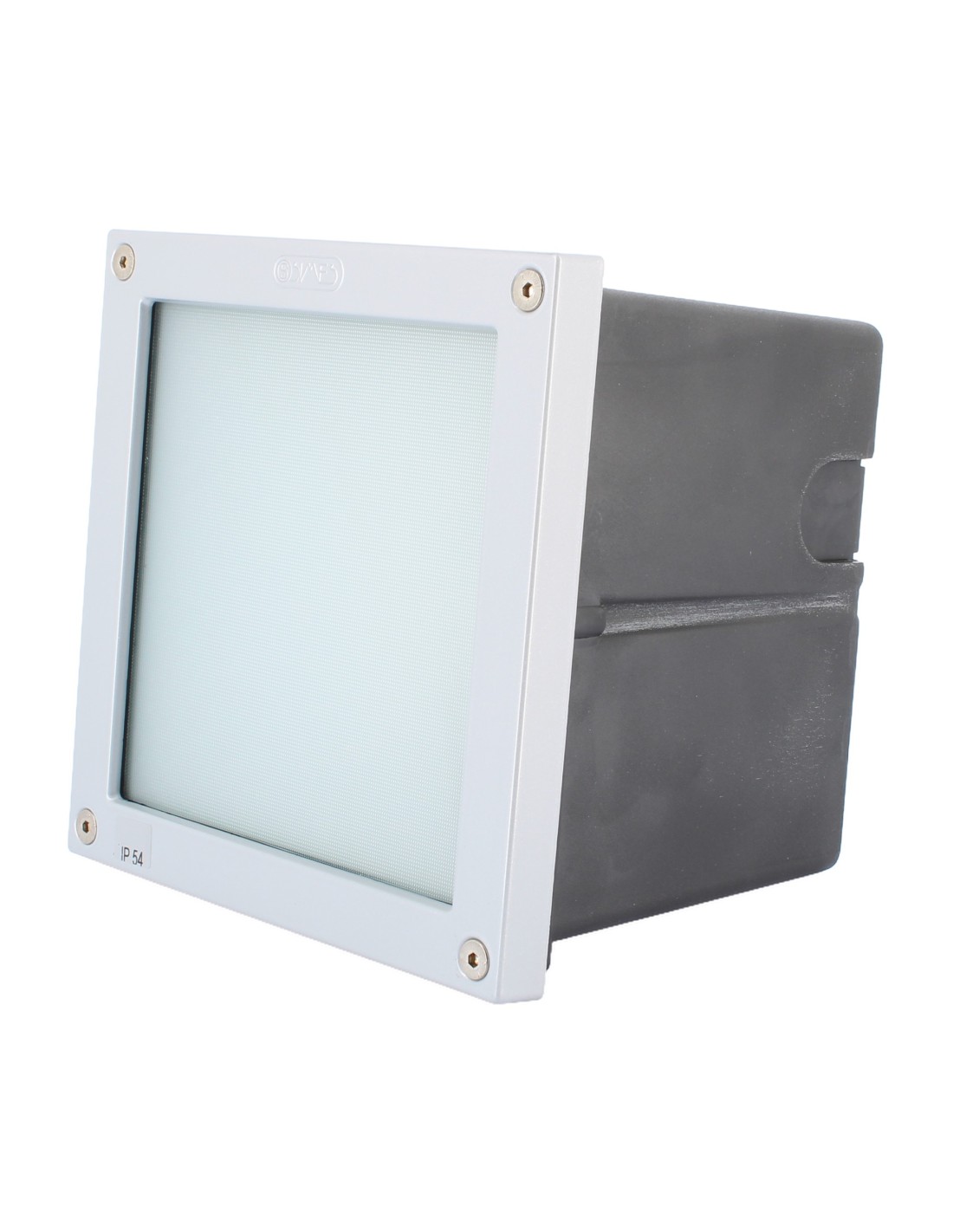

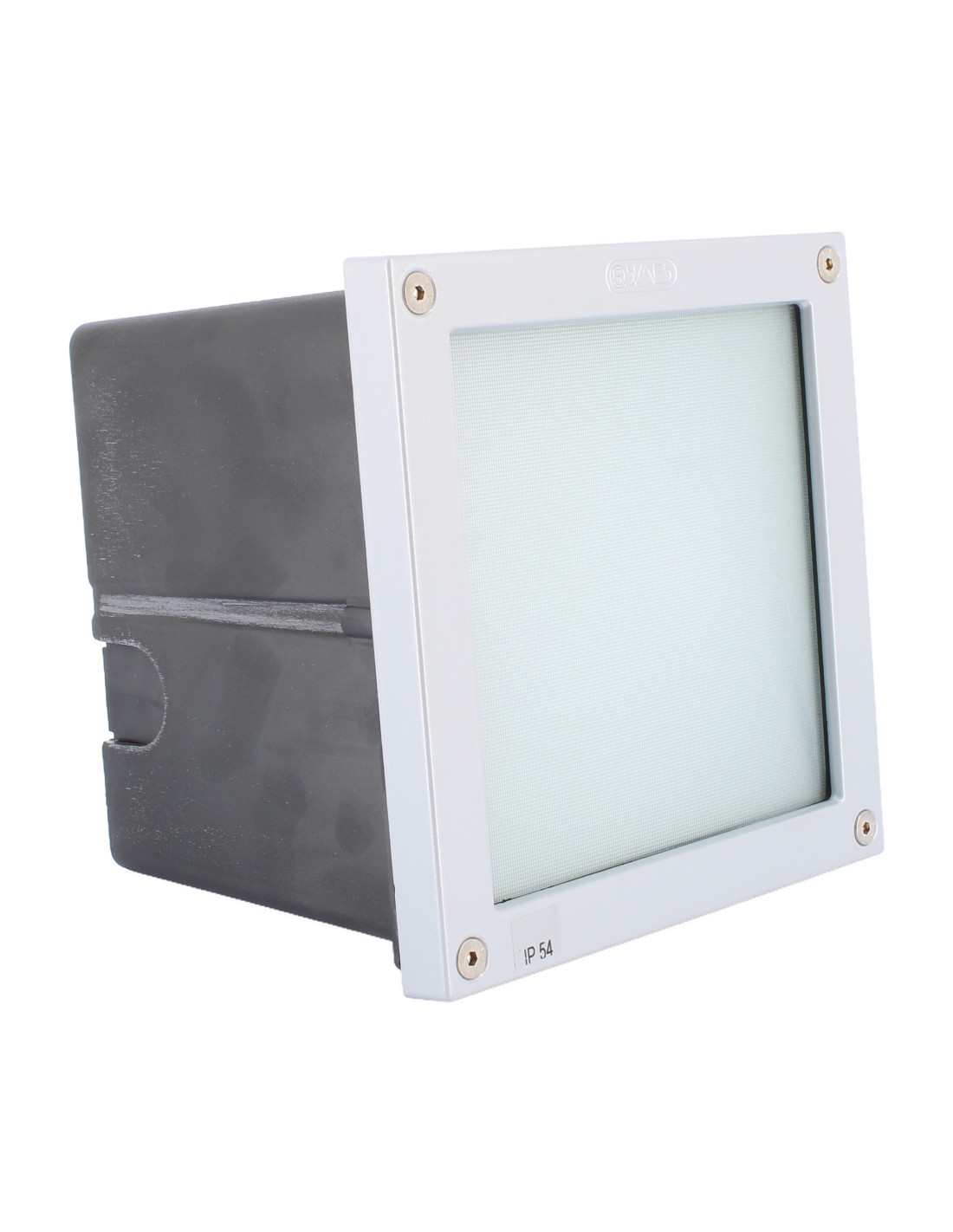

Simes s 4576 14 square brique built-in ring 10w g24d-1 aluminum

S.4576

SQUARE BRICK

-TYPE

Appearance of wall installation.

IP 54 protection rating

-MATERIAL CHARACTERISTICS

Body in EN AW-6060 first cast aluminum and EN pressurised

AB-47100 with high resistance to oxidation.

Preparation of the slime for preparation during the painting phase.

A4 stainless steel screws has a high molybdenum content 2.5-3%.

Silicone ricotta gaskets.

Extra resistant paint performed in 3 steps:

1) BONDERITE treatment with chemical protection of the materials

Fluozirconic private metallic content of ceramic nanoparticles and that

create a cohesive, inorganic, high-density layer.

2) PREPOLYMERISED cycle with application from the bottom

possible with reliability characteristics of all devices and

Raise the resistance to the possible resistance due to the pressure of the zinc.

3) POLYMERIZATION cycle with application of polyester powder

Glued with high resistance characteristics with UV protection agent

atmospheric, with resistance to the salt temperature test of 1500h.

Mechanical resistance of glass IK 06

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure aluminium, turned, anodized and bright.

Diffuse in opalescent and speckled temperature glass.

Very bright, with the lamp in the correct position.

Yield 21%

-INSTALLATION AND HANDLING

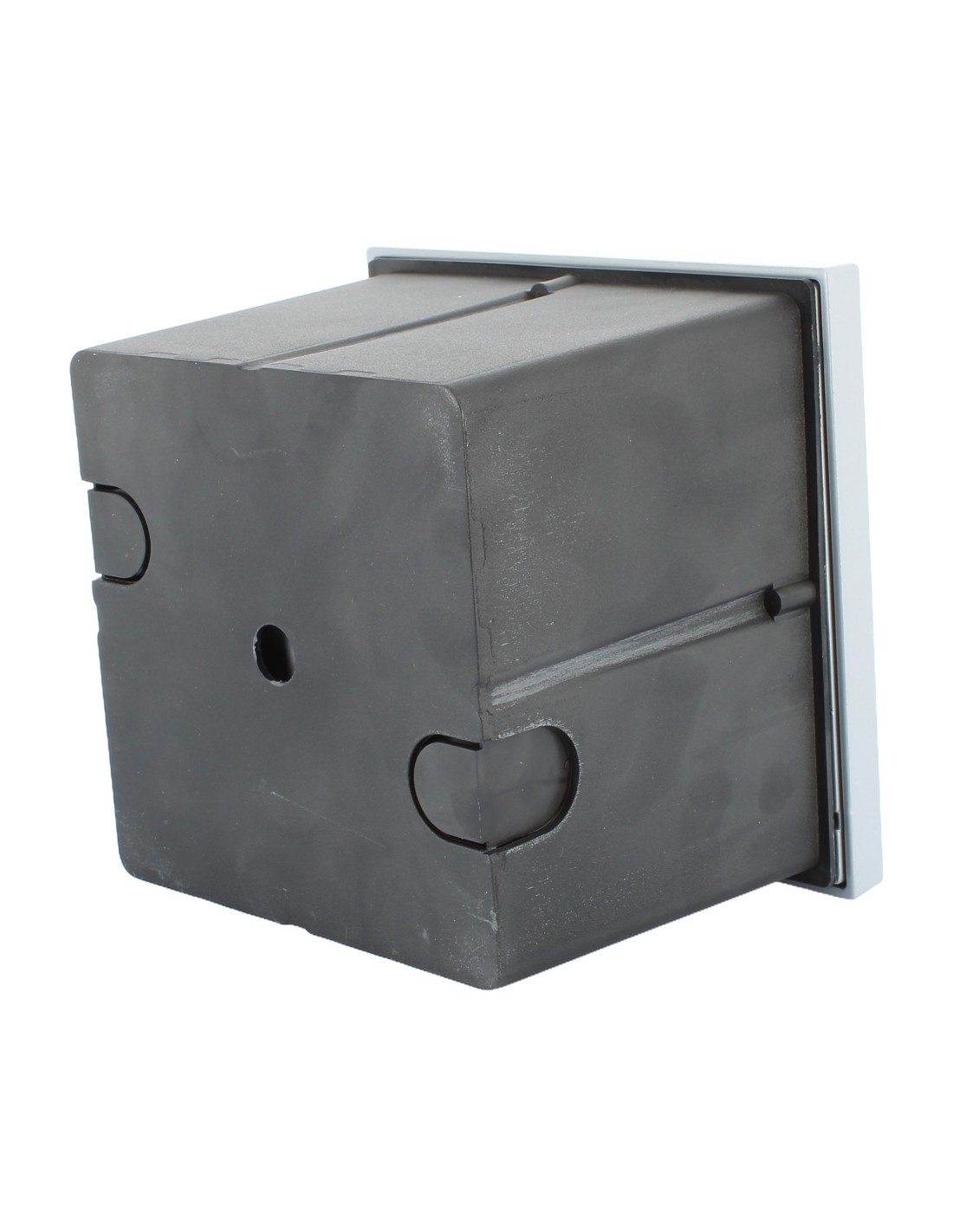

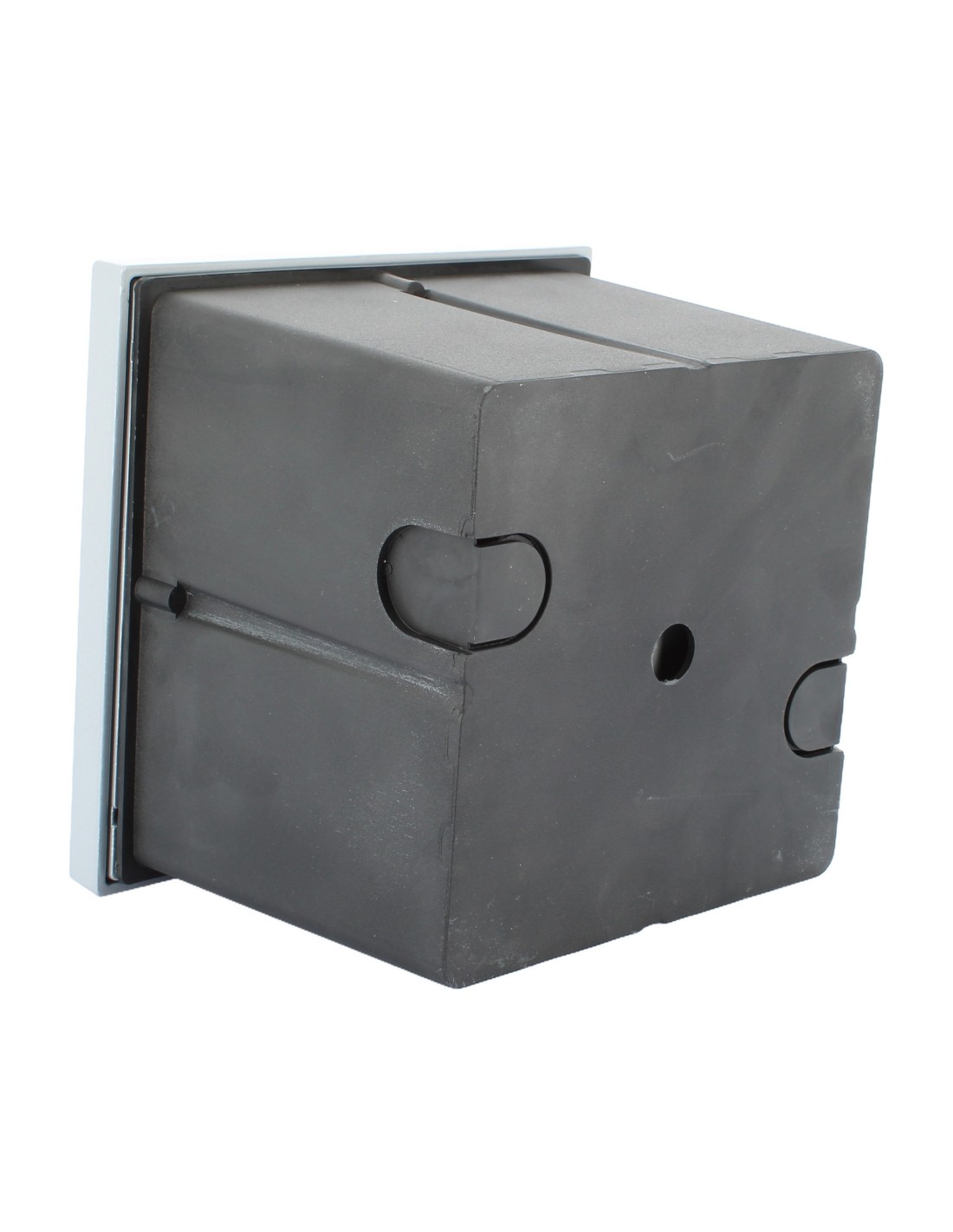

The installation is age-appropriate thanks to the preparation of the formwork

polypropylene. Adequate plastic supports reinforce the structure in the

centreline. Please note that this should prevent warping during use.

formation of concrete walls and floors.

It appears to be damaged and damaged while in use

STAINLESS STEEL.

It shows a souped-up diagram that lightens the view of the inside of the device.

The ring and grid block can be spread into the glass, covering the edge

of the formwork, therefore also the edge of the hole. This way they are hidden

the imperfection of the wall.

-WIRING

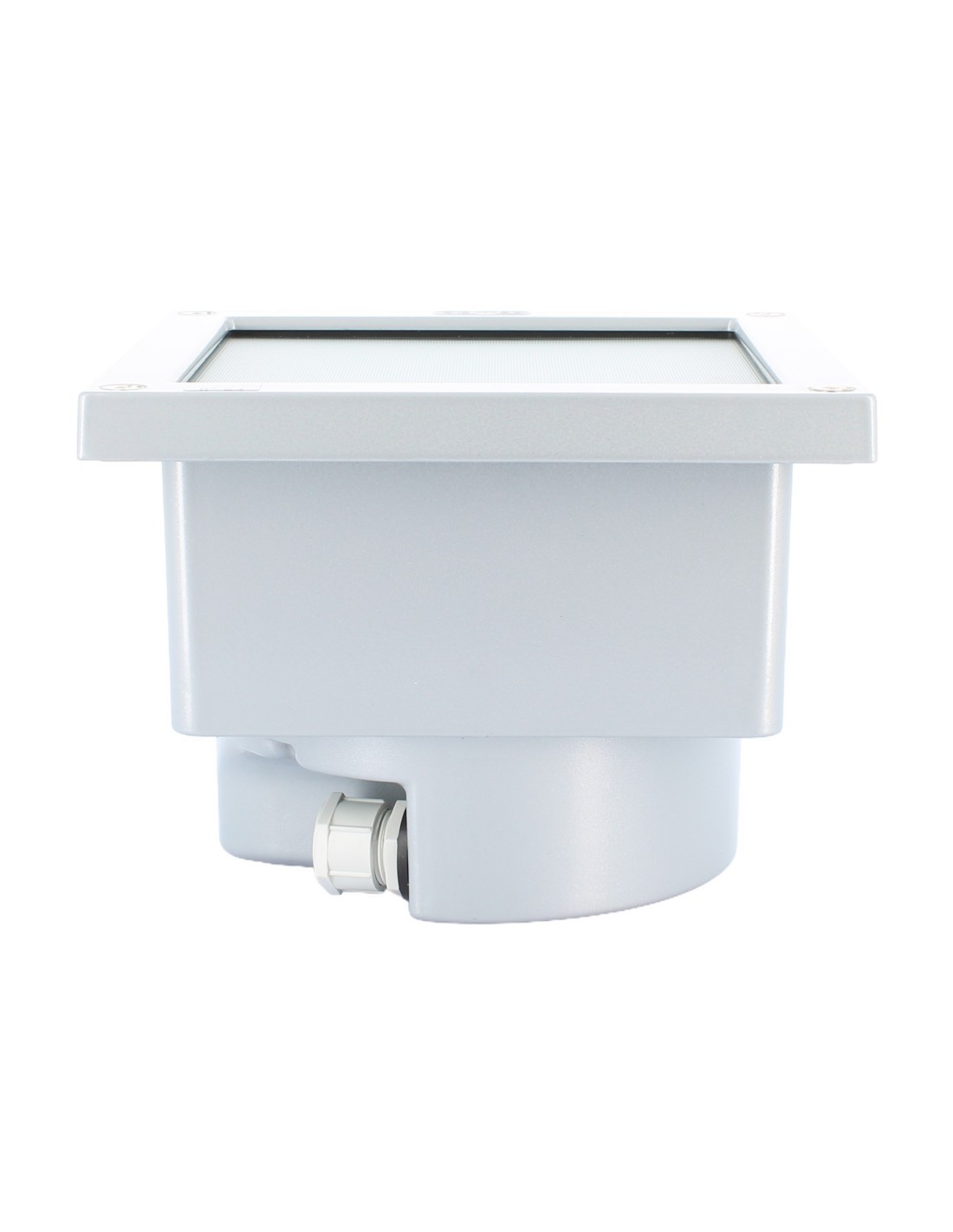

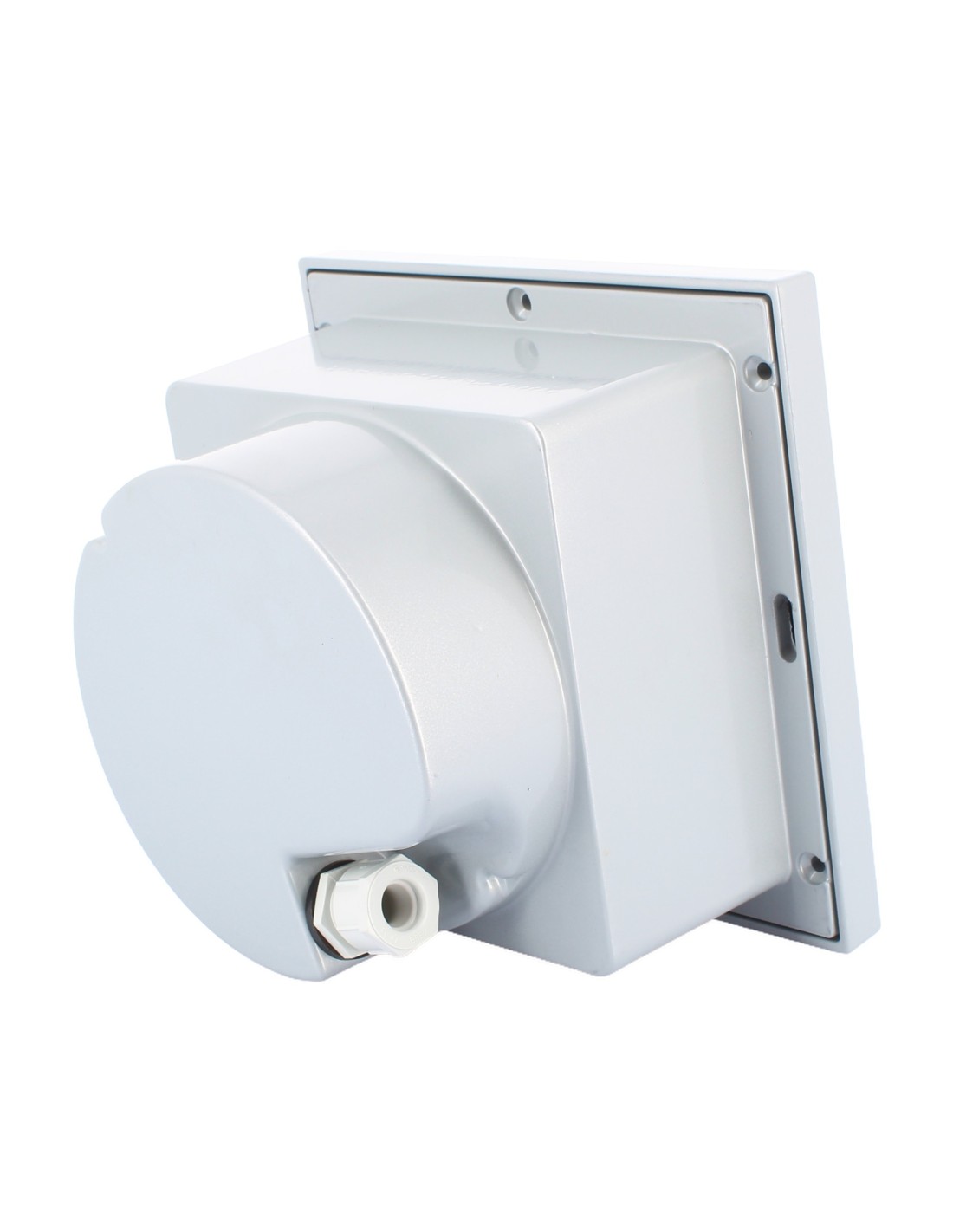

Single enters the power cables with grommet.

Insulation class CLASS I

Available colors WHITE (cod.01), BLACK (cod.09), ALUMINUM GRAY

(code.14)

Weight 1.85kg

Glow wire test 750°C

Fortnite lamp only on request.
