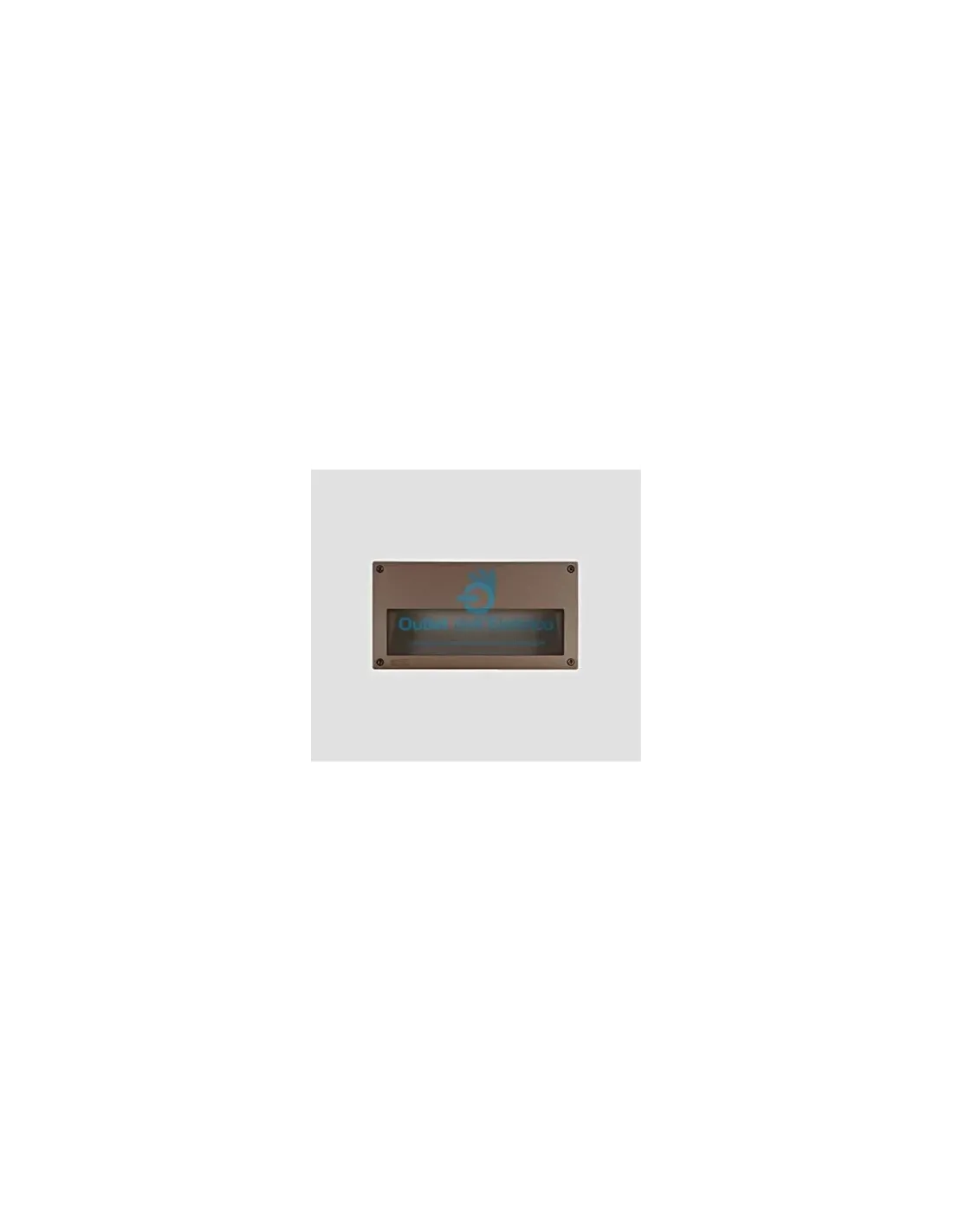

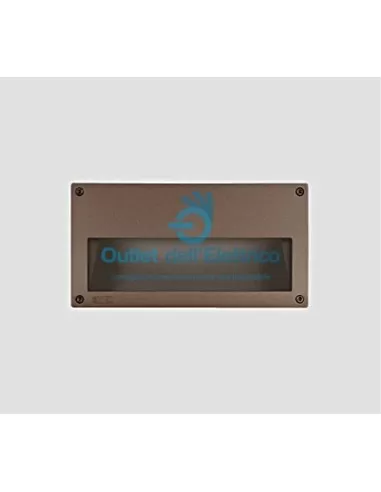

Simes s 6919 14 esc rect inc 26w g24d3 gray

S.6919

RECTANGULAR EOS

-TYPE

Wall mounted fixture.

IP 65 protection rating

-CHARACTERISTICS OF THE MATERIALS

Body in extruded EN AW-6060 and die-cast EN primary aluminium

AB-47100 with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Silicone ricotta gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of the material

metal-free fluozirconium containing ceramic nanoparticles that

create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

bonded with high resistance to UV rays and agents

atmospheric, with resistance to the salt spray test of 1500h.

Mechanical resistance of glass IK 06

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure aluminium, turned, anodized and polished.

Opalised and speckled tempered glass diffuser.

Light source, with fixed lamp position.

Yield 5%

-INSTALLATION AND MAINTENANCE

Installation is easy thanks to the preparation of the formwork

polypropylene. Adequate plastic supports reinforce the structure in the

centreline. With this measure, crushing during the process is prevented

the formation of walls by means of concrete casting.

The luminaires are secured to the formwork using steel screws

STAINLESS STEEL.

The diffuser glass, which is located in a position that is not easily accessible, al

protected from accidental impacts or vandalism, it is siliconed directly onto the

closing mask.

The closing mask covers the edge of the formwork, therefore also the

edge of the hole, thus the imperfections of the masonry are hidden.

-WIRING

Double power cable entry with grommet.

Insulation class CLASS I

Available colors BLACK (cod.09), ALUMINUM GRAY (cod.14), RUST

CORTEN (code 18)

Weight 2.35 kg

Glow wire test 750°C

Lamps supplied only on request.

S.6919 ACCESSORIES FOR RECTANGULAR EOS S.4523 RECTANGULAR FORMWORK 263 x 135 mm. Depth 95 mm.
