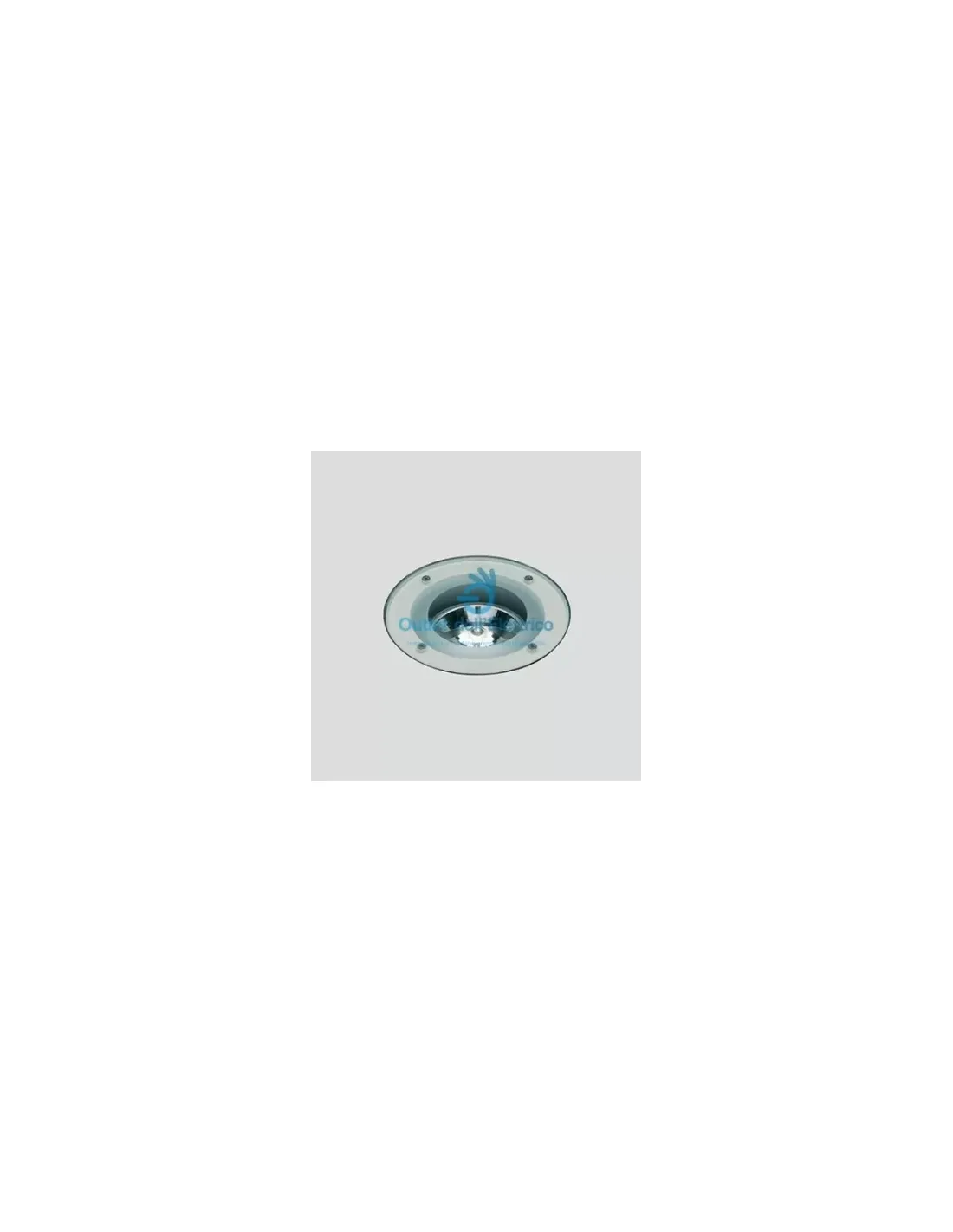

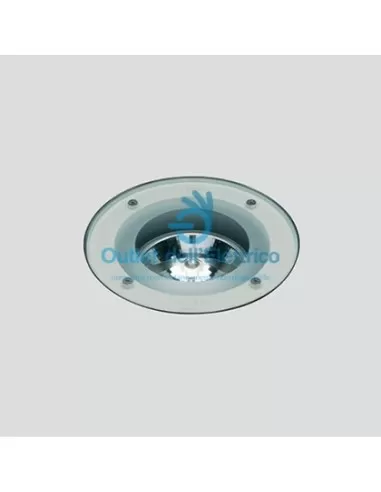

Simes s 5458 plano recessed 35w g53 glass with light

S.5458

FLOOR

-TYPE

The appearance is heat resistant for ground installation.

Depth up to 100 mm.

IP 67 protection rating

-MATERIAL CHARACTERISTICS

Body in EN AB-44100 “Copper Free” primary die-cast aluminium

with high resistance to oxidation.

Preparation of the slime for preparation during the painting phase.

A4 stainless steel screws has a high molybdenum content 2.5-3%.

Silicone ricotta gaskets.

Extra resistant paint performed in 3 steps:

1) BONDERITE treatment with chemical protection of the materials

Fluozirconic private metallic content of ceramic nanoparticles and that

create a cohesive, inorganic, high-density layer.

2) PREPOLYMERIZED cycle with application from the bottom

possible with reliability characteristics of all devices and

Raise the resistance to the possible resistance due to the pressure of the zinc.

3) POLYMERIZATION cycle with application of polyester powder

Glued with high resistance characteristics with UV protection agent

atmospheric, with resistance to the salt temperature test of 1500h.

Mechanical resistance of glass IK 09

Maximum load 1000 kg

-LIGHTING PERFORMANCE

Semi-acid protection glass at a temperature of 8 mm. sodium type

calcic Weissglass with high transmittivity value +12% (compared to a

common glass).

High brightness, with tiltable lamp position ±15°.

Yield 56%

-LOW SURFACE TEMPERATURE

Weissglass glass capable of absorbing less energy than glass

traditional thanks to the high transmittivity.

Glass temperature 125°C (Ta 25°C)

Electronic power supply with less heat.

It allows the optimization of the layout of the internal components of the product

heat dissipation to the internal temperature inside

permissible limits.

-FORMWORK FOR INSTALLATION AND MAINTENANCE

Polypropylene formwork with external edge in AISI 316L stainless steel

prepared for 4 days to enter the cavity to allow:

1) provides simple wiring;

2) connect it quickly;

3) Easily remove the device from the device for handling.

-WIRING

The power supply area uses the H07RN-F type cable

pressure PG 13.5 (Ø 6÷12 mm), molded with epoxy resin

two-component and internal cable with bounced guinea caviar

protective silicone glass shoe.

Provide the M20 quick connector (Ø 5÷14 mm) for

Single fluke connection, to be housed inside the casing.

Replace the headlamp to completely turn off the device.

Insulation class CLASS II

With 230V-12V electronic transformer in IP67 box.

Finish: ALL GLASS

Weight 2.86kg

Glow Wire Test --

Device equipped with lamps

S.5458 ACCESSORIES FOR PLANO S.5503 QUICK CONNECTOR M20 (Ø 5÷13 mm) IP68 quick connector for single pass-through connection. To be housed inside the formwork
