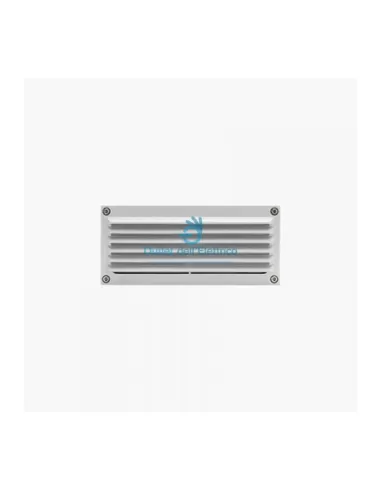

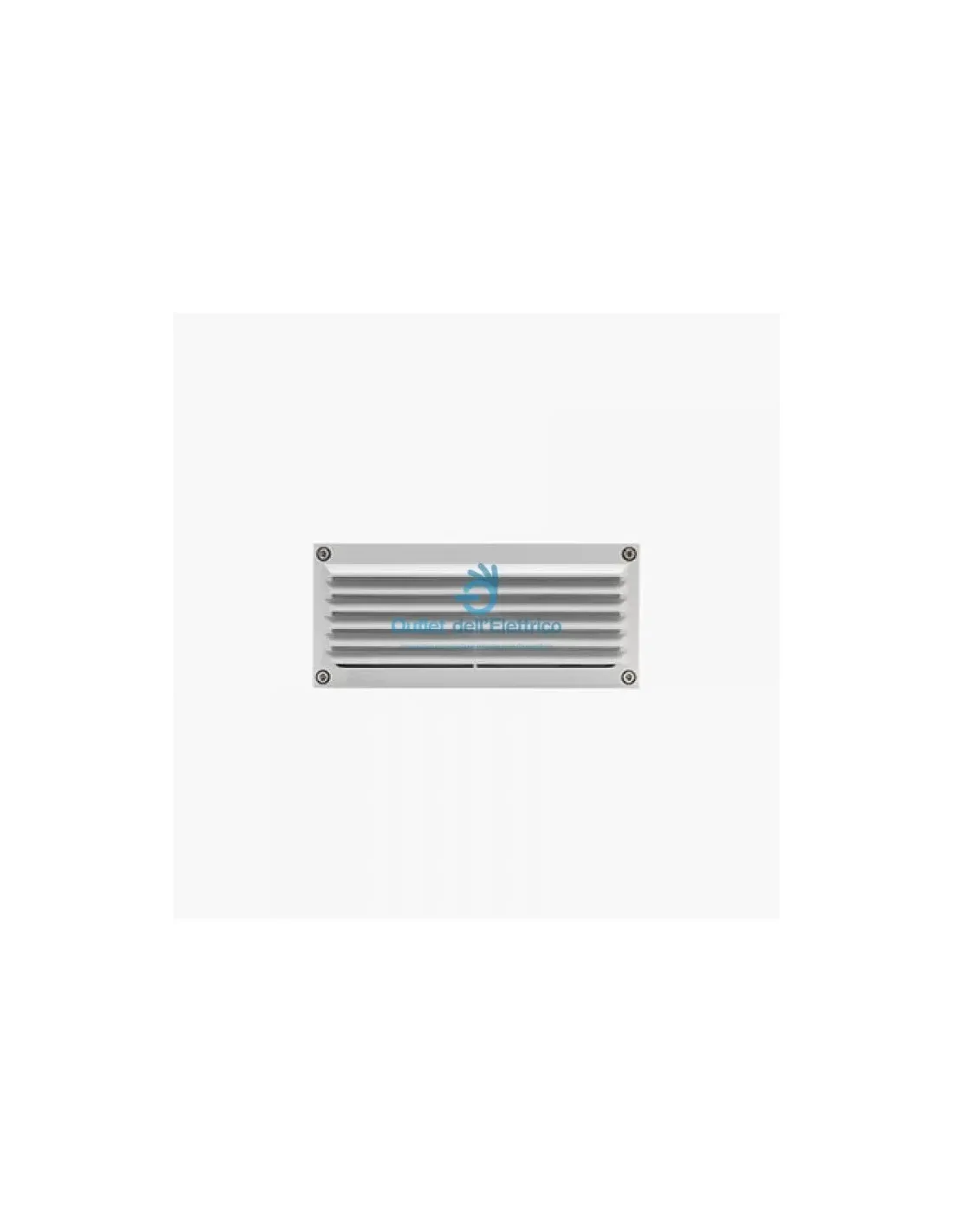

Brique Built-in rectangular wall with grid Tc-d 18w G24d-2 1200ml white

-TYPE

Wall mounted fixture.

IP 65 protection rating

-CHARACTERISTICS OF THE MATERIALS

Body in extruded EN AW-6060 and die-cast EN primary aluminium

AB-47100 with high resistance to oxidation.

Tumbling process to prepare for the painting phase.

A4 stainless steel screws with a high molybdenum content of 2.5-3%.

Annealed silicone gaskets.

Extra-resistant double painting carried out in 3 phases:

1) BONDERITE treatment with chemical protection of material

metal-free fluozirconium containing ceramic nanoparticles that

they create a cohesive, inorganic, high density layer.

2) PRE-POLYMERISATION cycle with primer application

epoxy with characteristics of overpainting on the device and of

high resistance to oxidation thanks to the presence of zinc.

3) POLYMERIZATION cycle with the application of polyester powder

with high resistance to UV rays and atmospheric agents,

with resistance to salt spray test of 1500h.

Mechanical resistance of glass IK 06

-LIGHTING PERFORMANCE

Optical reflector in 99.98% pure aluminium, turned, anodized and polished.

Opalised and speckled tempered glass diffuser.

Light source, with fixed lamp position.

Yield 4%

-INSTALLATION AND MAINTENANCE

Installation is easy thanks to the preparation of the formwork

polypropylene. Adequate plastic supports reinforce the structure in the

centreline. With this measure, deformation during production is prevented

formation of walls by means of concrete castings.

The luminaires are secured to the formwork using steel screws

STAINLESS STEEL.

The ribbed glass slightly shields the view of the inside of the device.

The ring and the grill block the ribbed glass diffuser by covering the edge

of the formwork, therefore also the edge of the hole. This way they are hidden

the imperfections of the masonry.

-WIRING

Double power cable entry with grommet.

Insulation class: CLASS I

Available colors: WHITE (cod.01), BLACK (cod.09), ALUMINUM GRAY

(code 14)

Weight: 1.86 kg

Glow Wire test: 750°C

Lamps supplied only on request

ACCESSORIES

S.2498 10kV CLASS I SURGE ARRESTER Compatible with all lighting fixtures in Insulation Class CLASS I Operating voltage 230-277V SPD type 2+3 Maximum discharge voltage 10kV IP67 protection rating N°1 SURGE ARRESTER MUST BE PROVIDED FOR EACH LIGHTING FIXTURE AND MUST BE INSTALLED A MAXIMUM 10m DISTANCE FROM THE LATTER.

S.4503 FORMWORK 220 x 92 mm. Depth 95 mm
