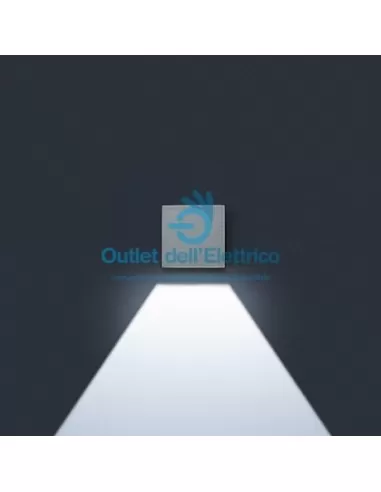

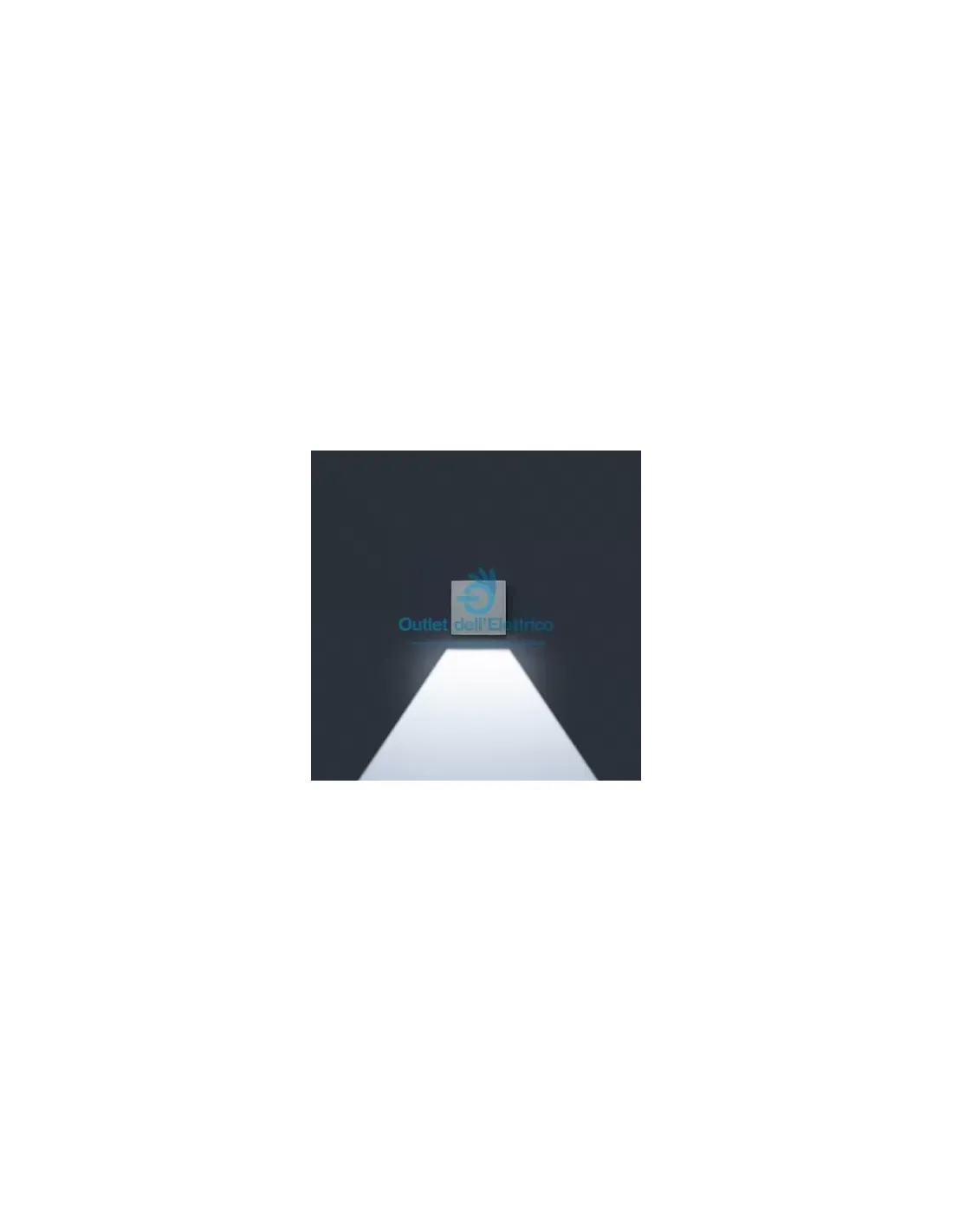

Simes S.5012.14 Lift quad 1f 60° alog 100w gray

S.5012 LIFT SQUARE - Wall mounted luminaire

Type: Wall-mounted luminaire.

IP protection rating: IP65.

Material characteristics:

• Body in EN AB-47100 primary die-cast aluminum with high resistance to oxidation.
• A4 stainless steel screws with strong molybdenum content.
• Annealed silicone gaskets.
• Extra-resistant double painting carried out in 3 phases for maximum durability and protection from atmospheric factors.

Lighting performance:

• Optical reflectors in 99.98% pure anodized and polished aluminium.
• Curved tempered glass lenses, glued to the aluminum shell.
• 8% light output.

Installation and maintenance:

• The sturdy die-cast aluminum shell is secured to the base with four AISI 316L stainless steel screws.
• The lamp holders are positioned on an adjustable steel base in a planar position.

Wiring:

• Double power cable entry with PG13.5 cable glands (Ø 6÷12 mm).
• Insulation class: CLASS I.

Available colors: WHITE (cod.01), ALUMINUM GRAY (cod.14), RUST CORTEN (cod.18).

Weight: 4.43 kg.

Glow Wire test: 850°C.

Note: We recommend using only SYLVANIA DLX- lamps.
