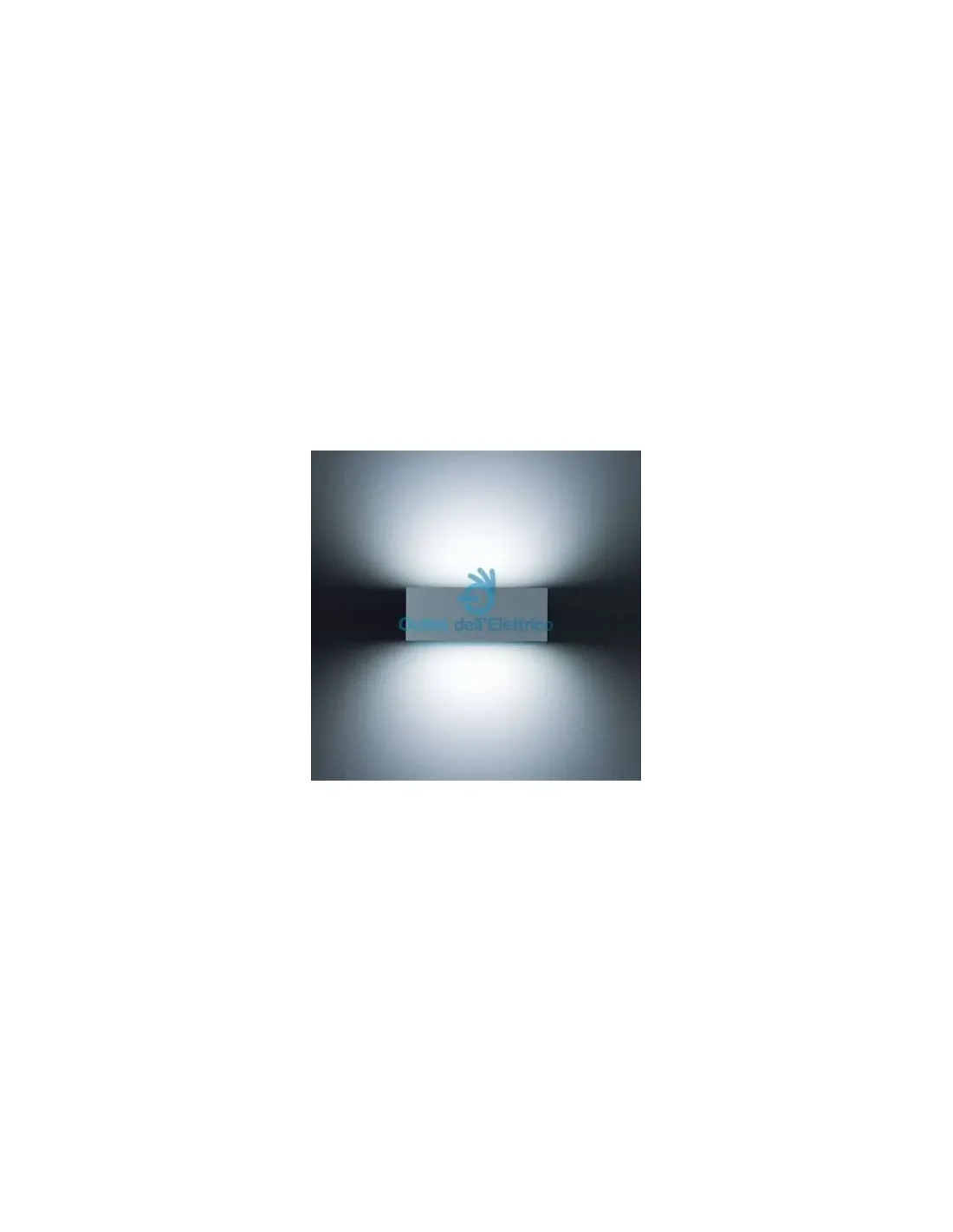

Simes s 5064w 14 minilift ret 2f led930 grey

Technical Data Light Source:

• Light source type: LED
• Color temperature: 3000K
• Source luminous flux: 2030lm
• Luminaire luminous flux: 1214lm
• Source power: 8.9W
• Total power absorbed by the appliance: 19.8W
• Luminaire luminous efficiency: 61lm/W
• Color rendering index: CRI 90
• Color match standard deviation: MacAdam step 3

Technical Data Power Supply:

• Voltage (AC): 220-240Vac
• Frequency (AC): 50/60Hz
• Voltage (DC): 176-276Vdc
• Dimming: NOT DIMMABLE (ON-OFF)

Technical Data Temperatures and Duration:

• LED lifespan: L80 B10 70,000h Ta 25°C, L80 B10 50,000h Ta 40°C
• APPLIANCE lifespan: min. 70,000h Ta 25°C, min. 50,000h Ta 40°C
• Performance ambient temperature: Tq 25°C
• Operating ambient temperature: -20°C to +50°C
• Storage temperature: -20°C to +60°C

Technical Installation Data:

• Electrical insulation class: I
• IP protection rating: IP65
• Impact resistance: IK06
• Weight: 2.28 kg

• Dimensions:

  • Length: 265mm
  • Height: 100mm
  • Depth: 110mm
