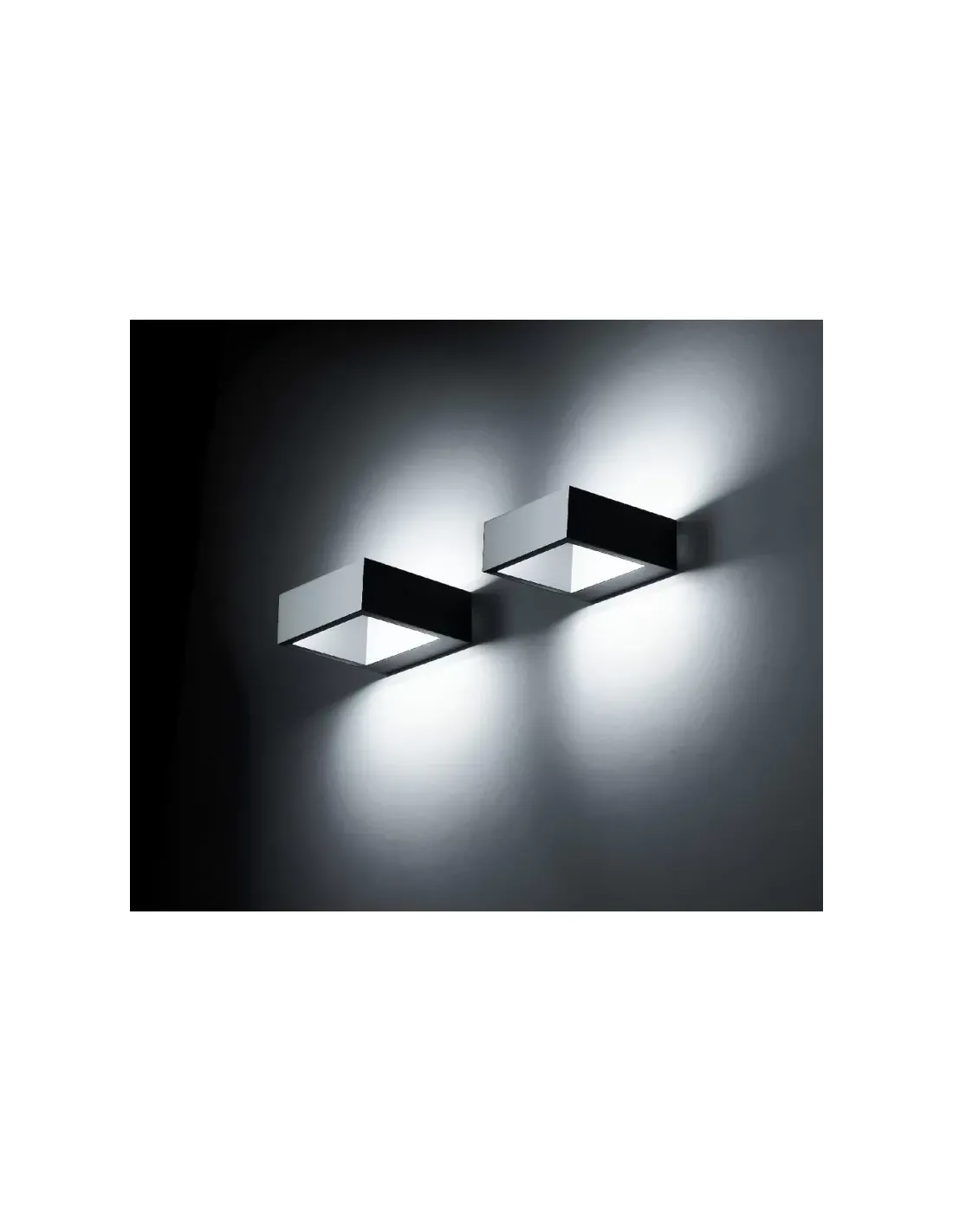

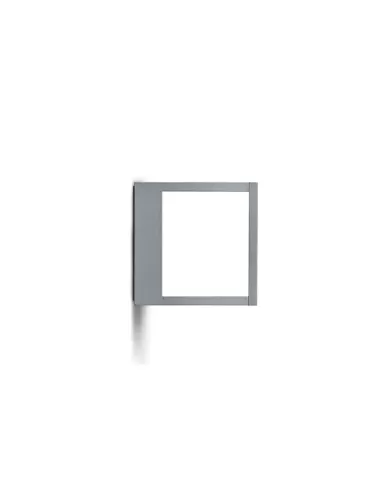

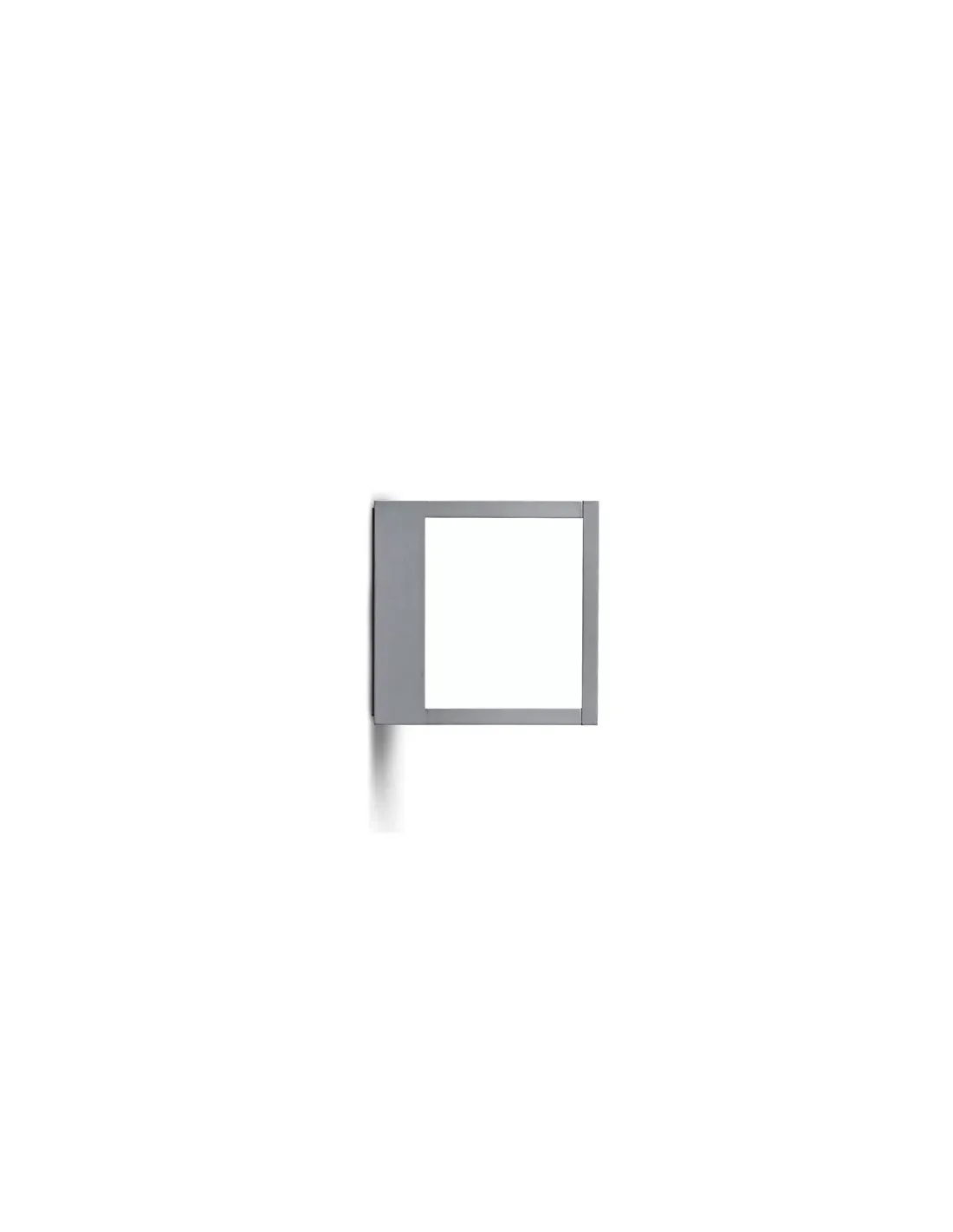

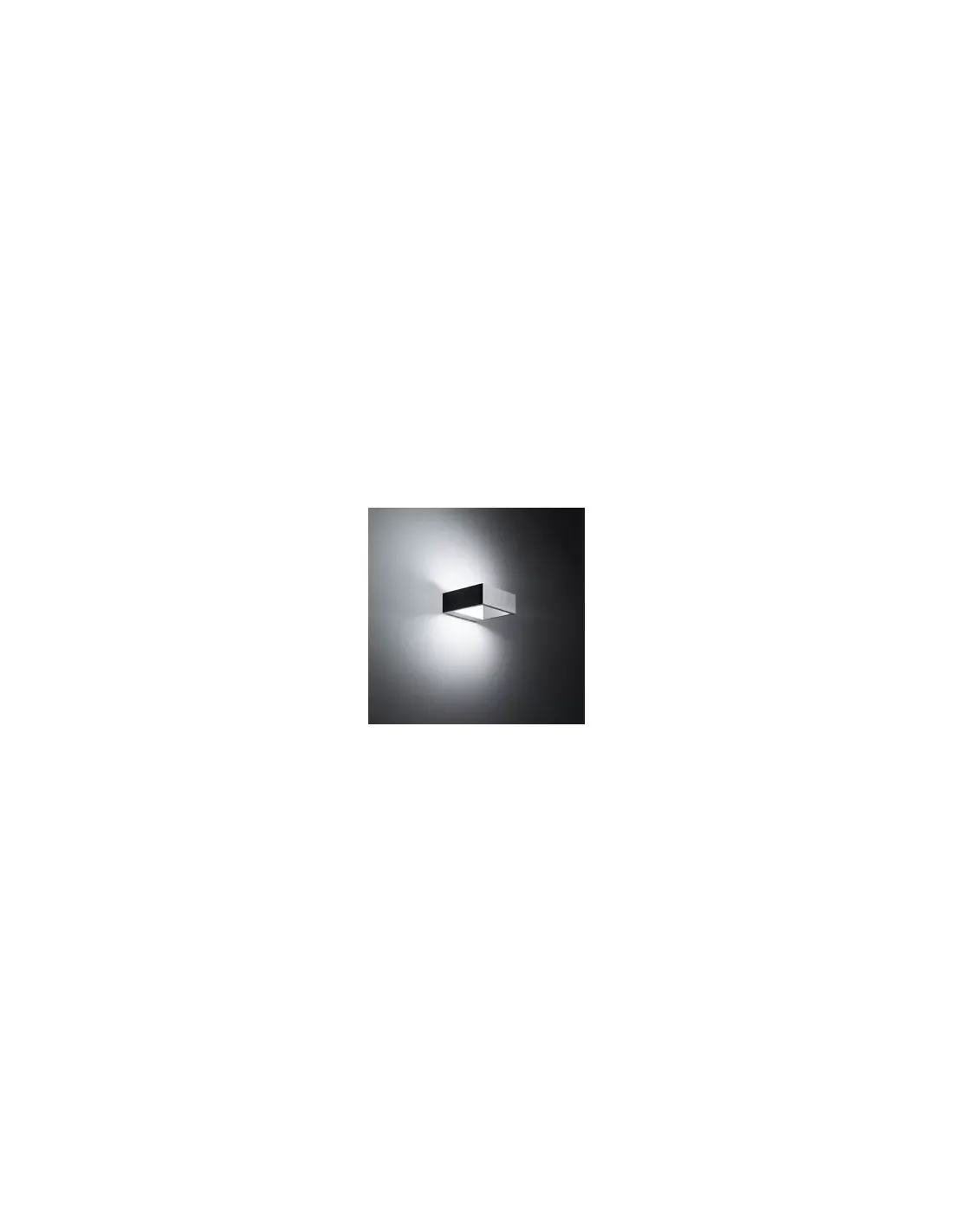

Simes s 7280w 01 cool quad wall light led930 230v white

TYPE
Luminaire for wall installation or Bollard for ground installation (bollard version). IP 54 protection rating

CHARACTERISTICS OF THE MATERIALS
EN AB-47100 die-cast aluminum body with high resistance to oxidation. Structure for bollard in EN AW-6060 extruded aluminum with high resistance to oxidation.  Tumbling process to prepare for the painting phase. A4 stainless steel screws with a high molybdenum content of 2.5-3%. Annealed silicone gaskets.
Extra-resistant double painting carried out in 3 phases:
1) BONDERITE treatment with chemical protection of metal-free fluozirconic material containing ceramic nanoparticles that create a cohesive, inorganic, high density layer. 2) PRE-POLYMERISATION cycle with application of the epoxy primer with characteristics of overpainting on the device and high resistance to oxidation thanks to the presence of zinc. 3) POLYMERIZATION cycle with the application of polyester powder with high characteristics of resistance to UV rays and atmospheric agents, with resistance to the salt spray test of 1200h. Mechanical resistance IK 06

LIGHTING PERFORMANCE
Diffuser in tempered and speckled glass. Light source, with fixed lamp position. Yield --. Color rendering CRI 90, Color stability step 3.

INSTALLATION AND MAINTENANCE
The garden products are to be used with plastic stake accessories or flange to be cemented. They cannot be installed directly on the ground or directly on concrete plinths without accessories because the contact between the two materials can create an inconvenient accelerated oxidation of the appliance. The wiring of the products must strictly comply with the specifications. Loop in/loop out wiring, where not foreseen by the appliance, creates humidity infiltrations which, in contact with the electrical cables, can accelerate the oxidation process.

WIRING
Luminaire wired with 1.5m cable @@ {TipoCavo} @@ for SQUARE MICRO-COOL. Single entry for power cables with grommet for MINICOOL and COOL SQUARE.
Insulation class: CLASS I
Available colors: White (cod.01),
