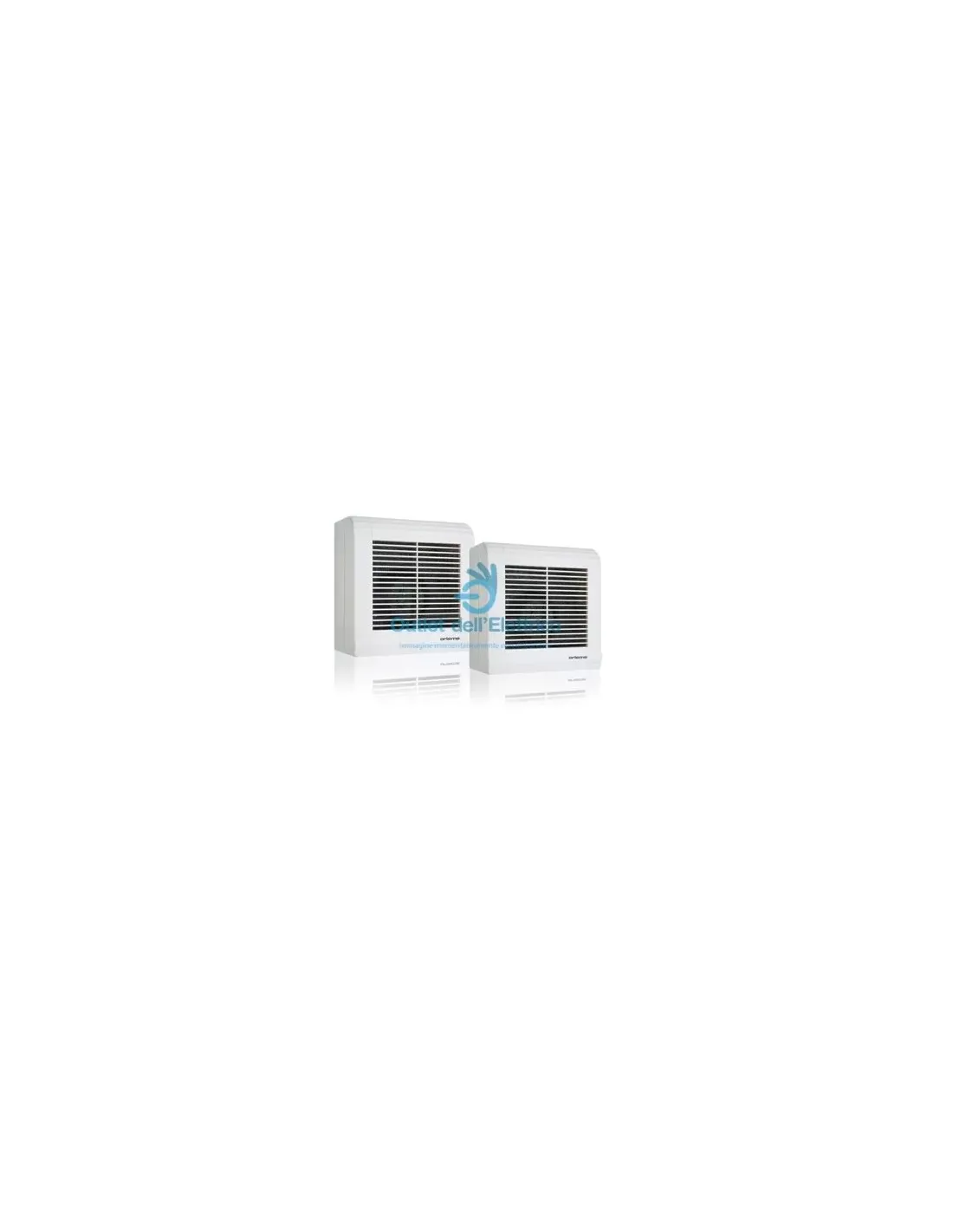

Orieme OC 200 CS Centrifugal false ceiling fan 170 m3/h

Orieme OC 200 CS Centrifugal Fan for False Ceilings: Optimal Performance for Small Spaces

The Orieme OC 200 CS Centrifugal Fan for False Ceilings represents the ideal solution to ensure correct ventilation in small environments, such as bathrooms, kitchens or utility rooms. Here is a detailed description of this efficient device:

High Extraction Capacity: With a flow rate of 170 cubic meters per hour (m³/h), the Orieme OC 200 CS Centrifugal Extractor ensures rapid and effective extraction of stale and humid air, guaranteeing a fresh and healthy environment.

Compact and Slim Design: The compact and slim design of the OC 200 CS makes it perfect for installation in false ceilings, ensuring effective ventilation without compromising the aesthetic appearance of the environment.

High Quality Materials: Made with high quality materials, this centrifugal vacuum cleaner is designed to last over time and ensure long-term reliable performance.

Low Noise Emission: Thanks to its construction and silent motor, the OC 200 CS offers discreet operation, ensuring maximum acoustic comfort in the environments in which it is installed.

Easy Installation and Maintenance: Equipped with clear and intuitive instructions, the centrifugal aspirator is easy to install and requires minimal maintenance, ensuring simple and uncomplicated management.

Suitable for Various Environments: Ideal for bathrooms, kitchens, laundries and other small domestic or commercial environments, the OC 200 CS is the perfect choice to ensure optimal ventilation in limited spaces.

Reliable Brand: Orieme is a renowned brand in the ventilation industry, known for the quality and reliability of its products. With the OC 200 CS, Orieme offers an efficient and convenient solution to ensure a comfortable and healthy environment.

In conclusion, the Orieme OC 200 CS Centrifugal Fan for False Ceilings is the ideal choice for those looking for optimal performance in small environments. With its effectiveness, reliability and ease of installation, this centrifugal extractor offers an excellent solution for improving indoor air quality in a simple and convenient way.

Can be mounted on false ceilings with a maximum distance of 40 cm from the ceiling

load-bearing, with fixing system supplied

For false ceilings exceeding 40 cm up to a maximum of 1 meter,

use the OCS T kit (optional)

Maximum false ceiling thickness 4 cm

Pipe diameter 100 mm

Flow rate m3/h 170

Supply voltage at 50 Hz 230 V

Pressure at nominal flow rate mm H2O 2.75

MAX pressure (at zero flow) mm H2O 6.80

Power absorbed (W) 26

Sound pressure level at 3 m dB (A) 39

Declaration of conformity

Approvals

Insulation class I

Common degree of protection

Max. temperature operating temperature 40°C

Weight 1.8

Dimensions (LxHxD cm) 29.4x29.4x22.5
