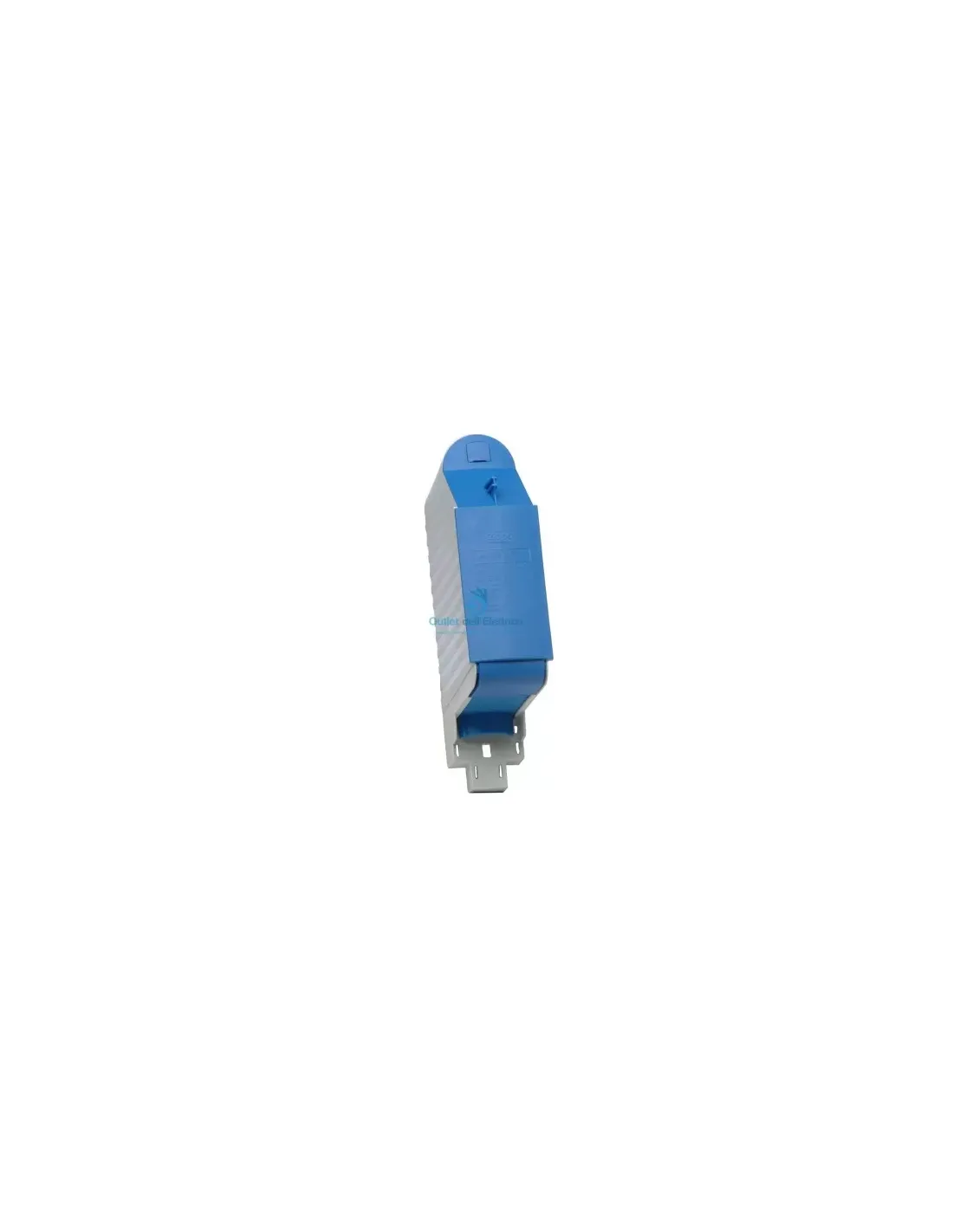

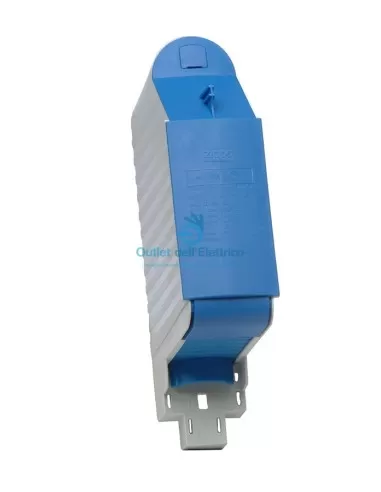

Zippo 9437 pole recessed terminal block 45x186mm
_1732199632.png){kind=icon}
Condizione prodotto:New
Secure Payments
Delivery times
Fedex Road Europe: 5-7 working days
Dhl Road Europe: 3-5 working days
DHL Express International: 2-3 working days
Legal guarantee of conformity
Payments Method
Class II terminal block (double insulation CEI EN 60439-1) in 45x186 mm slots. Equipped with terminal and sectionable fuse holder. Made of self-extinguishing polyamide 66, with RAL 5014 blue cover and RAL 7035 gray base. Closure between cover and base with through screw, protected by a cap (IP43). Closing of the cable entry area with adjustable shutter and protective plate that can be placed over the electrical cables (IP23). Cable tail equipped with a plurality of slots for the insertion of cable ties for groups of cables (entry - exit - lamp - shutter block). Clamp fixed on the internal bottom of the base, made of self-extinguishing polyamide 66 and brass contacts. Fuse holder fixed on the internal base of the cover, made of self-extinguishing polyamide 66 and phosphor bronze contacts.
| Clamp: | Brass |
| Fuse holder: | Sectionable with phosphor bronze contacts |
| Item | Pole slit mm. | Minimum pole Ø mm. | Clamp (No. of poles / Section / Volt/Amper) | Fuse holder (No. of fuses / Fuse type / Volt/Ampere) | Can be combined with hatches |
| 9437 | 45 x 186 | 102 | 4 poles/3 ways / 1.5 ÷ 16 mm2. / 450V./63A. | 1 / 8.5 x 31.5 / 400V./max 6A. | 9605 9645 9405-9406-9407 9455-9456-9457 9415 |
| 9437/2 | 45 x 186 | 102 | 4 poles/3 ways / 1.5 ÷ 16 mm2. / 450V./63A. | 2 / 8.5 x 31.5 / 400V./max 6A. | 9605 9645 9405-9406-9407 9455-9456-9457 9415 |
| 9437/2P | 45 x 186 | 102 | 2 poles/3 ways / 1.5 ÷ 16 mm2. / 450V./63A. | 1 / 8.5 x 31.5 / 400V./max 6A. | 9605 9645 9405-9406-9407 9455-9456-9457 9415 |
| 9437/2P/2 | 45 x 186 | 102 | 2 poles/3 ways / 1.5 ÷ 16 mm2. / 450V./63A. | 2 / 8.5 x 31.5 / 400V. / max 6A. | 9605 9645 9405-9406-9407 9455-9456-9457 9415 |
| 9438 | 45 x 186 | 102 | 4 poles/3 ways / 1.5 ÷ 16 mm2. / 450V./63A. | 1 / 5 x 20 / 250V./max 6A. | 9605 9645 9405-9406-9407 9455-9456-9457 9415 |
| 9439 | 45 x 186 | 102 | 4 poles/3 ways / 1.5 ÷ 16 mm2. / 450V./63A. | 2/5 x 20/250V. / max 6A. | 9605 9645 9405-9406-9407 9455-9456-9457 9415 |
New
60
8033745671206
9437
