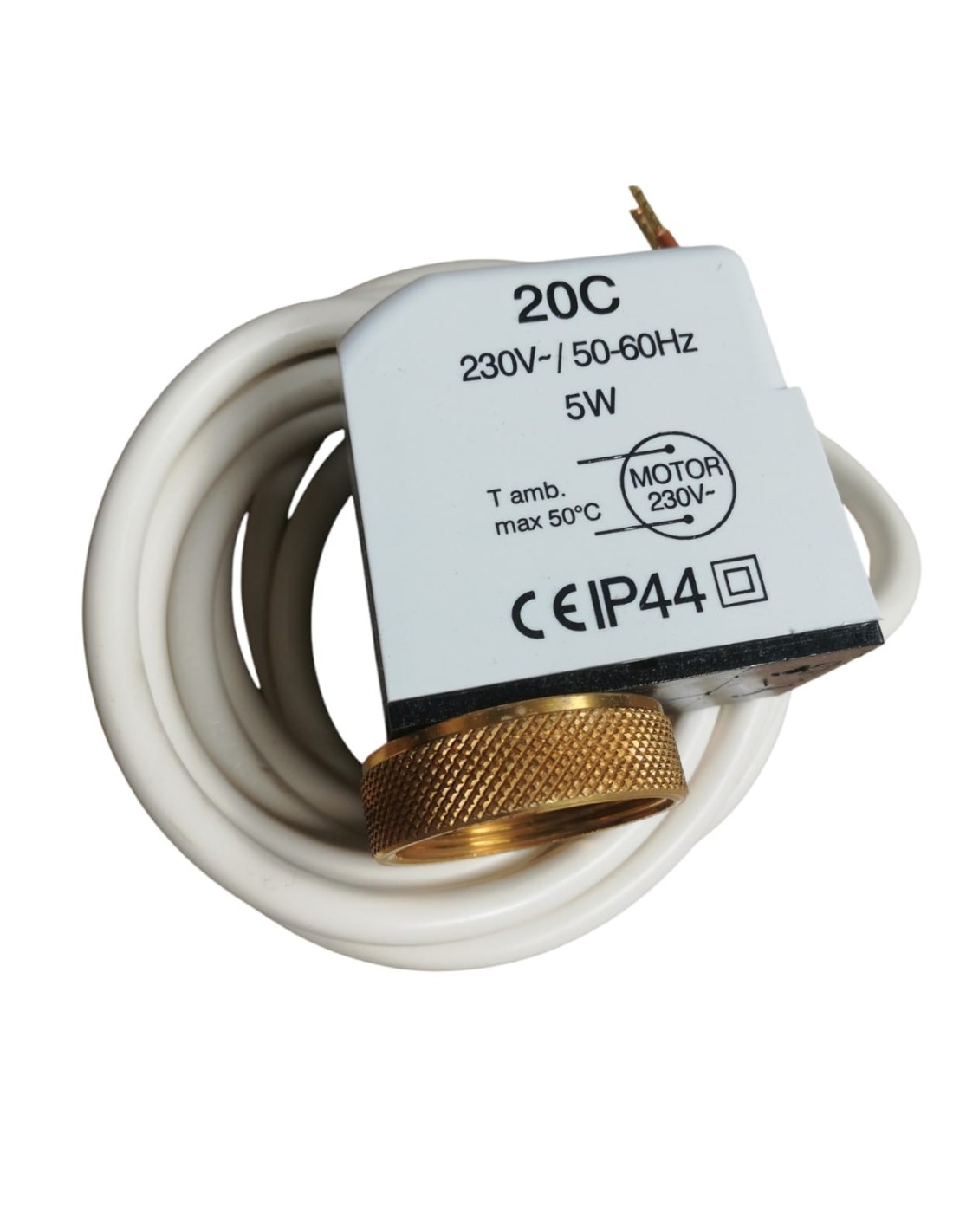

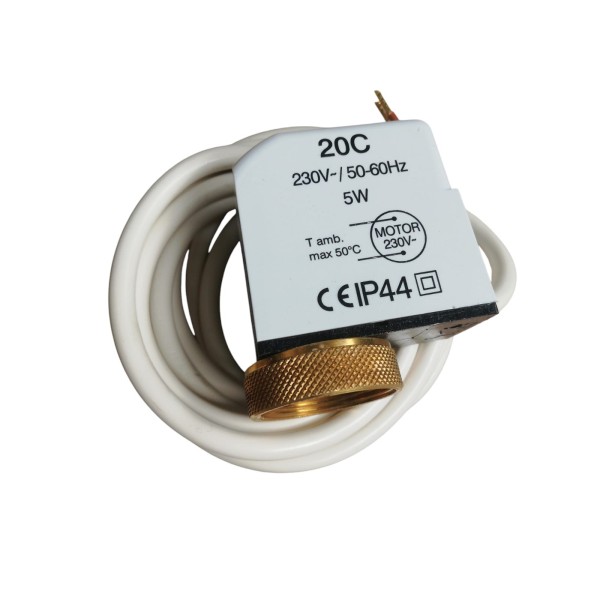

Watts e20c-220vfc thermally driven electric actuator

The Watts actuator is a thermoelectric actuator for opening and closing valves and is ideal for use in heating, underfloor heating, ventilation and air conditioning technology Reliability and easy handling characterize this actuator Low power consumption of 1.8 W The scope Main application is single-room control of water-based underfloor heating systems in combination with room thermostats Easy to mount with connection nut M30 x 1.5 On/off function Supply voltage: 230 V AC ( 10 %-15% ) Frequency: 50-60 Hz Power consumption (normal operation): 1.8 W Duration: 230 V AC Output value: 75 s Final value: 3 minutes Actuator input: max 3.5 mm Valve stroke : 2.5 mm Degree of protection: IP54 - EN60529 Protection class: II Cable length: 1 m 2 pins, 2 x 0.5 mm2 Operating temperature: 0-50 °C Storage temperature: -25 to 60 ° C Average temperature: max 110 °C Nominal closing force (current off) (NC) 100 N (±10%) Plastic housing, polyamide 30 FG Colour: RAL 9016 Valve connection, threaded ring nut: M30 x 1, 5
