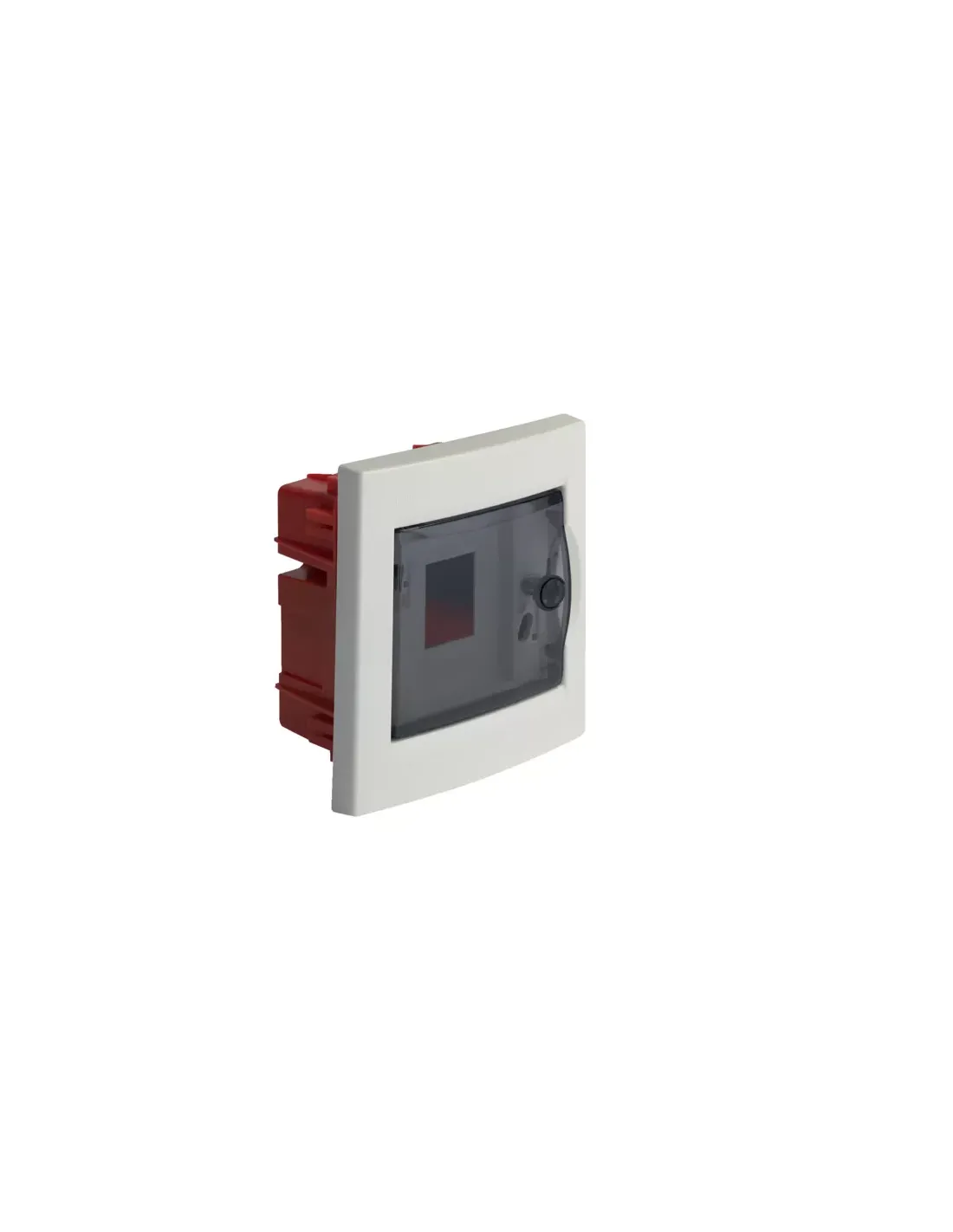

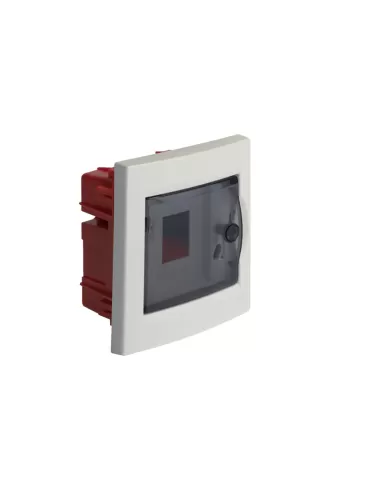

Bocchiotti b04100 built-in IP40 switchboard with 4 switchboard modules

IP40 INC 04 W0 4-module switchboard with smoked door Pablo IP40 Recessed WHITE Design Recessed fixing method Compatibility Compatible with mounting on DIN Rail yes Current Nominal current in A 125 A Cover Type of door closing without locking Type of cover Blank door Lock without Type of cover Door Transparent cover or door yes Materials Color RAL9016 Color white RAL color White RAL 9016 Material plastic Dimensions Recess depth 74 mm Depth of installed product 99 mm Internal depth 99 mm Height of installed product 180 mm Width of installed product 169 mm Width in units division 4 Accessories included Mounting plate included no With lock no Equipment Quantity of rows in the casing 1 Number of buttons 1 Standards, Approvals Reference standards EN 60670-24 European Directive WEEE not affected Safety Degree of impact resistance 09 Degree of protection of the casing IP40 Insulation protection class class II Degree of resistance to glow wire according to EN 60695-2-11: 960°C Halogen-free yes Resistant to ultraviolet yes Conditions of use Operating temperature -25…60 °C
