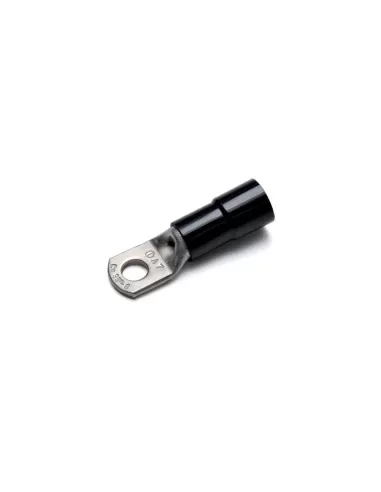

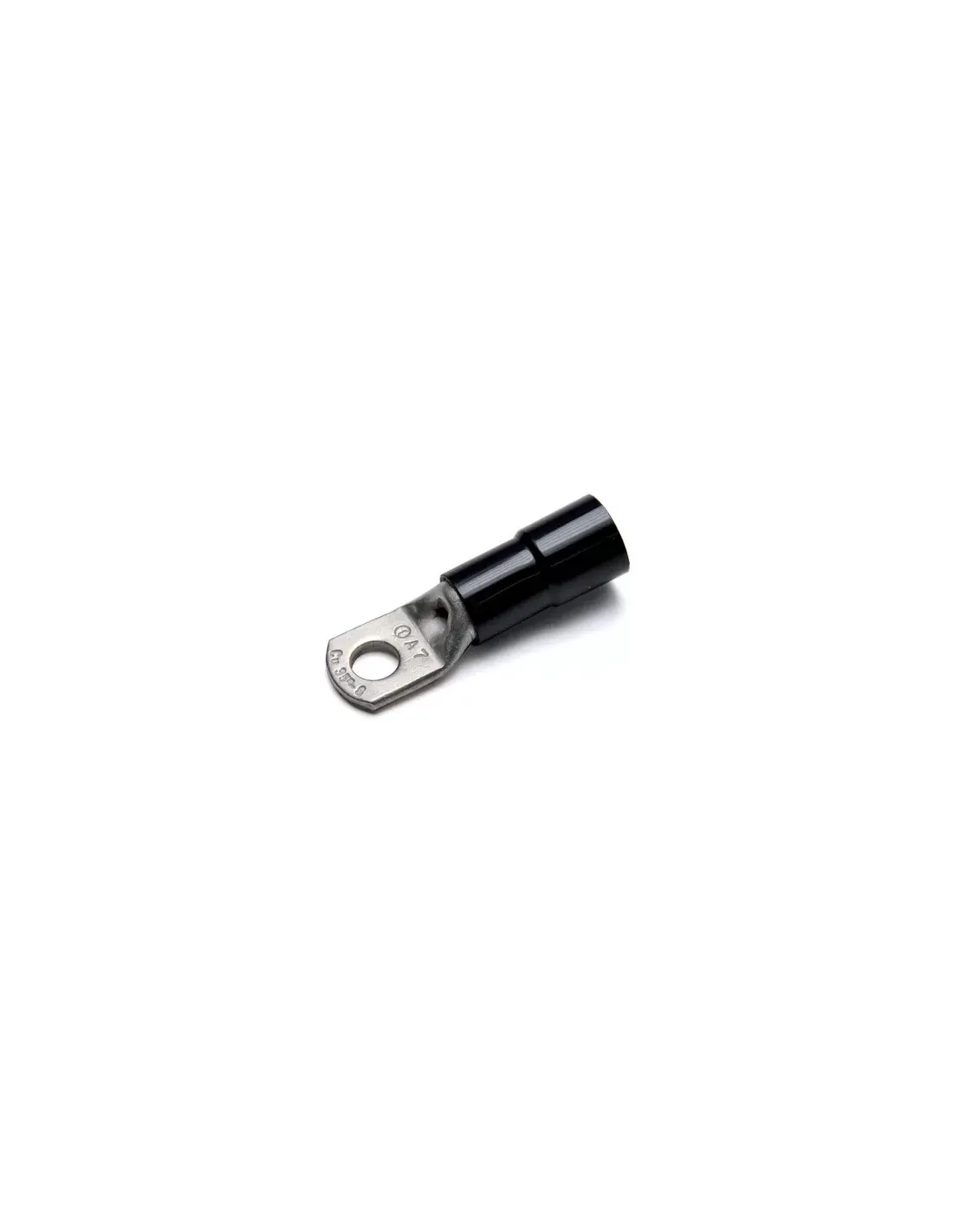

Cembre ane2-m12 insulated cable lug section 10mm2 flex screw hole 12mm

The ANE-M series cable lugs are designed for wiring electrical power panels, where flexible cables are used. They are made from electrolytic copper tube with a section such as to guarantee both a good electrical connection and adequate mechanical resistance to traction; they are annealed and superficially protected by electrolytic tinning. The insulating coating in PA 6 6 simplifies the installation and restoration operations of the cable insulation; furthermore, internally it is shaped like a funnel to ensure easy and complete insertion of the conductor into the collar of the cable lug. The ANE 2, ANE 3, ANE 5 type cable lugs can also be used on rigid cables if compressed with the radial containment matrices of the series MN RF-C They are obtained from Cu-OF CW008A electrolytic copper tube according to UNI EN 13600
