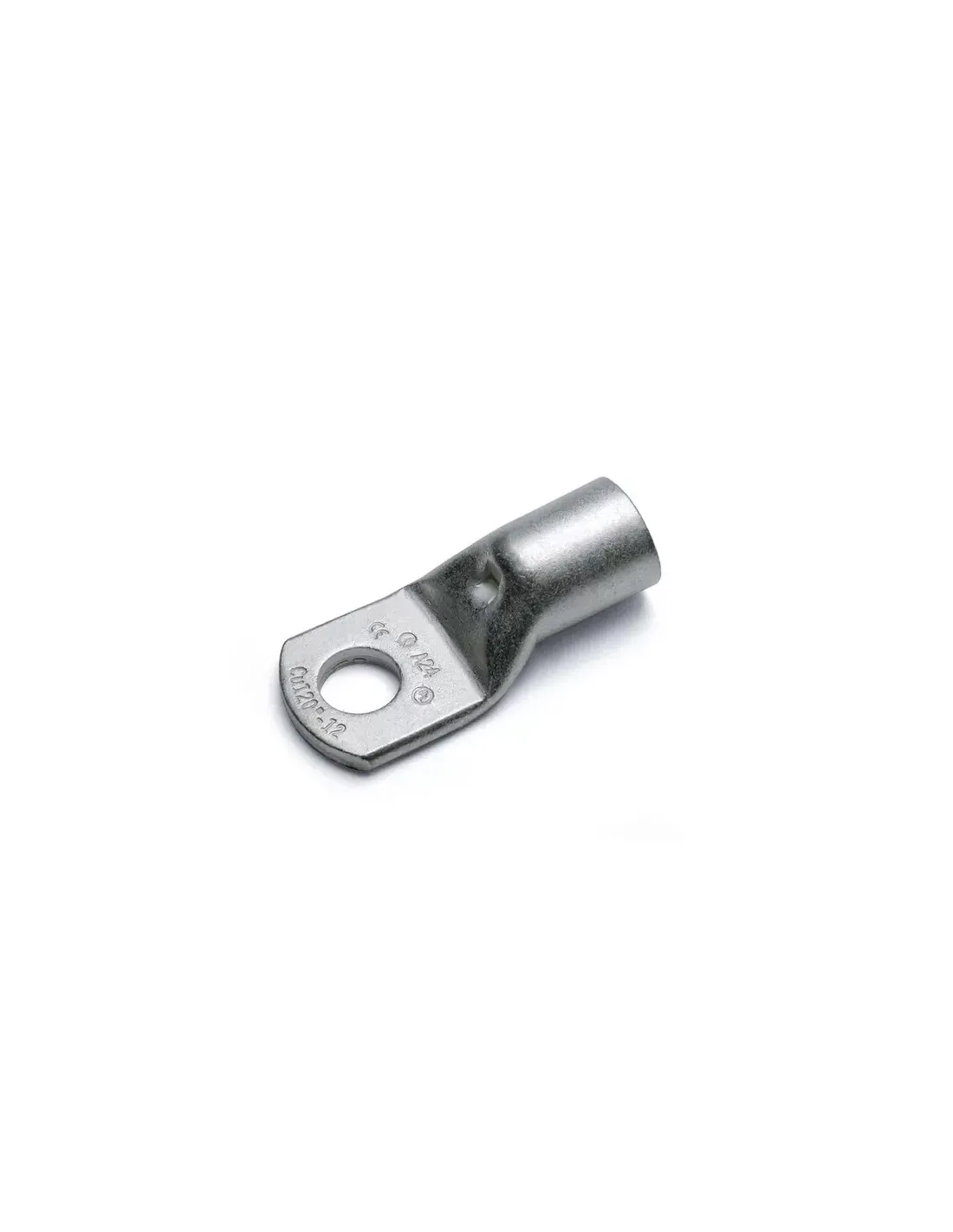

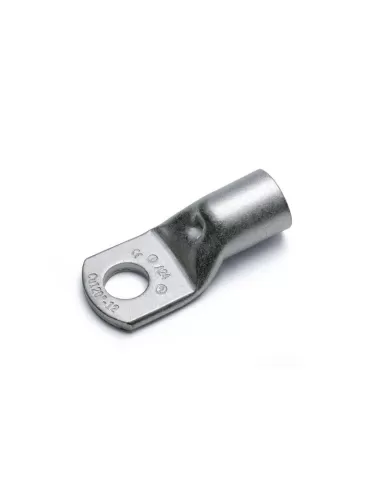

Cembre a1-m6 cable lug section 4-6 mm2 screw hole 6mm

The AM series cable lugs are made from electrolytic copper tube with a section such as to guarantee both a good electrical connection and adequate tensile strength. They are annealed and superficially protected by electrolytic tinning. They are made from electrolytic copper tube Cu-OF CW008A according to UNI EN 13600 The annealing process optimizes the structural characteristics of the material, therefore allows easier compression and guarantees the use of the cable lug in the presence of mechanical stresses of various kinds. The collar is provided with a chamfer and inspection hole for easy and correct introduction of the host; Furthermore, its length is such as to make positioning inside the tool matrices easy and precise. Each cable lug is engraved with: Cembre trademark and catalog number nature and section of the conductor (mm2) Ø of the screw (mm)
