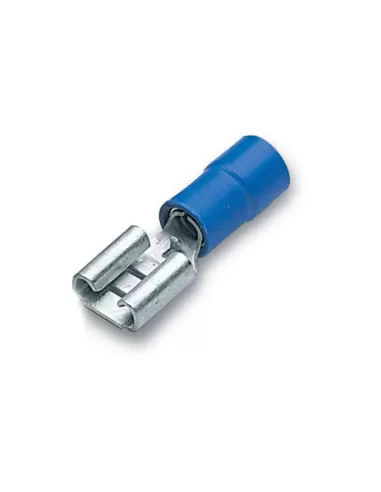

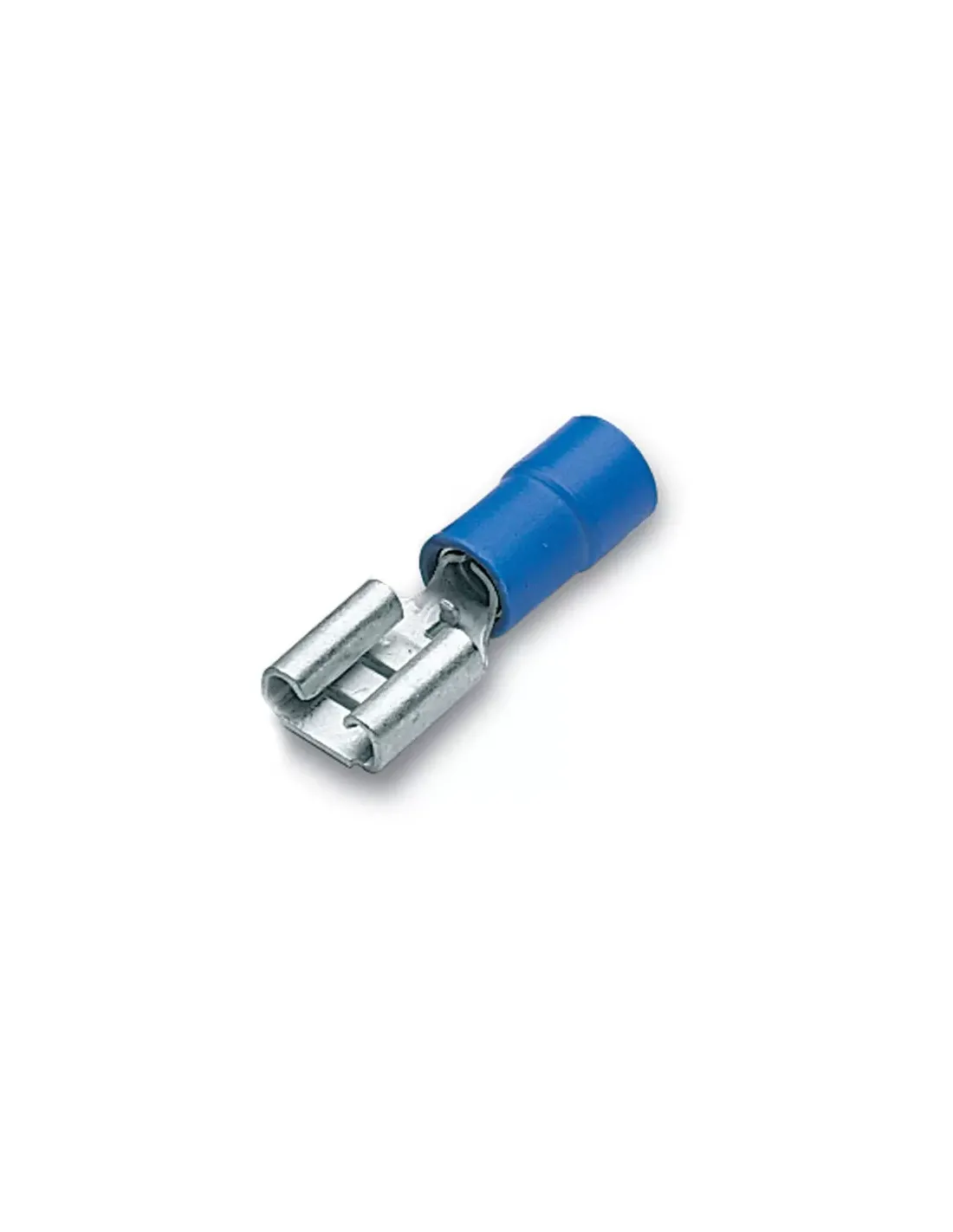

Cembre bf-f405 blue female plug-in cable lug 4.8x0.5

The connectors are made of P-Cu Zn 30 UNI EN 1652 brass (corresponding to: Cu Zn 30 DIN 17660//1974; Cu Zn 30 NF A51-101//1977) and comply with the IEC 61210 Standard. The reinforcement tube is made of Copper SF Cu DIN 1787//1973, F25 The insulating jackets are instead made of PC (PC10500AC), a halogen-free material characterized by high toughness: DIELECTRIC STRENGTH (KV//mm): 30 SPECIFIC VOLUME RESISTANCE (O //cm): 1016 MAXIMUM OPERATING TEMP (°C): 115÷130 FLAMMABILITY (UL-94): V0 DENSITY (g//cm3): 1.2 H2O ABSORPTION (%): 0.15 BREAK STRENGTH (N//mm2): 65 Certifications: cULus According to the UL 310 standard (file E212000) Fire and Smoke Certification according to UNI CEI EN 45545-2 for risk levels HL1 - HL2, set of R22 requirements and risk levels HL1 - HL2 - HL3, R23 requirement set
