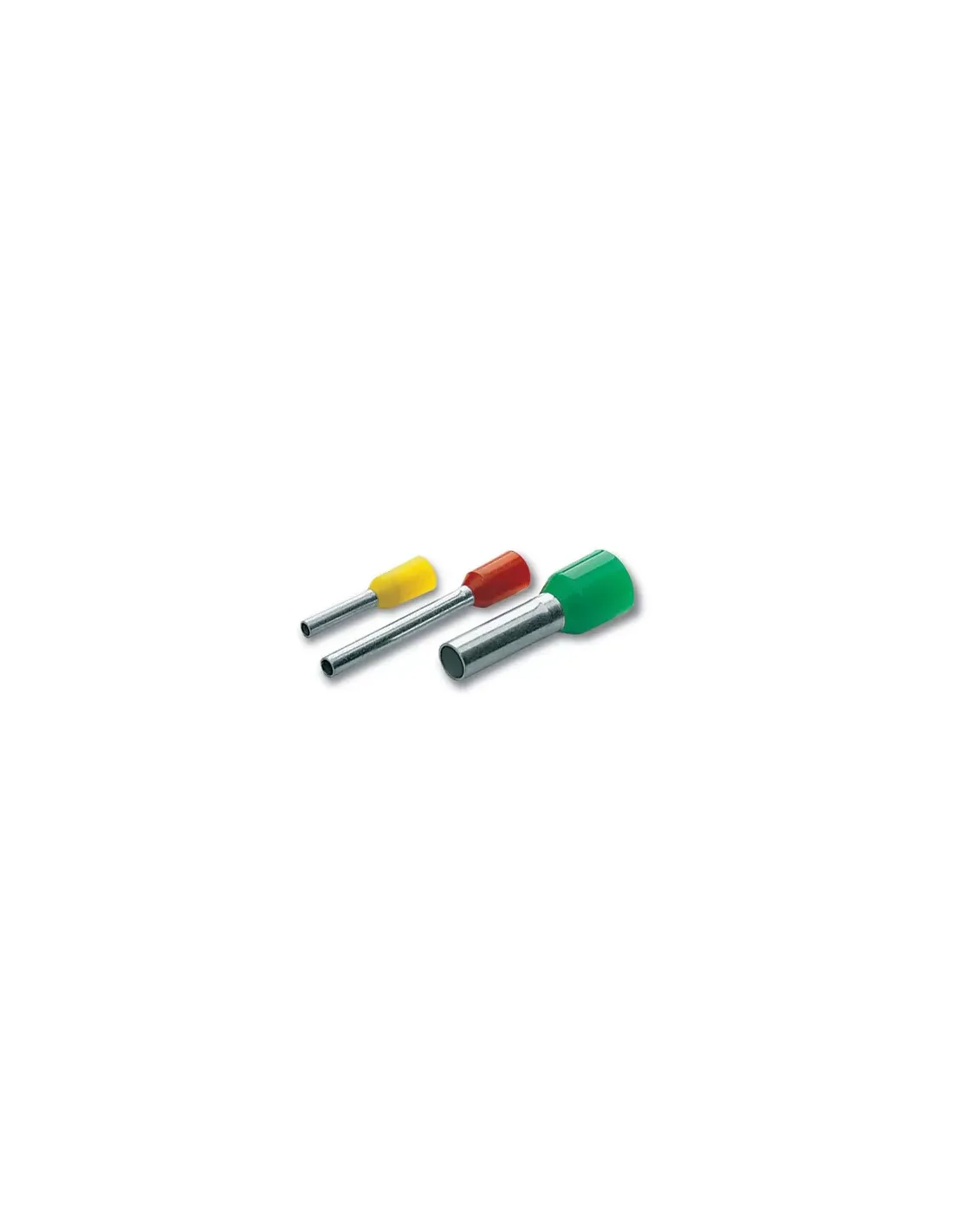

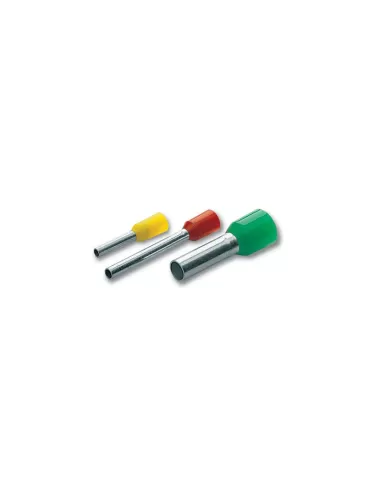

Cembre pkc7508 pre-insulated tube section 0.75mm2 p 8mm for copper cables
Condizione prodotto:New
Secure Payments
Delivery times
Fedex Road Europe: 5-7 working days
Dhl Road Europe: 3-5 working days
DHL Express International: 2-3 working days
Legal guarantee of conformity
Payments Method
The connectors are made of electrolytic copper Cu DHP UNI 5649//1988 (corresponding to: SF-Cu DIN 1787//1973 Cu//b1 NF A 51-050) Electrolytically tinned, min thickness 3µm Main characteristics of the insulating jackets in Polyamide 6 (PA6): DIELECTRIC STRENGTH (KV//mm) : 16.5 VOLUME RESISTIVITY (O • cm) : 1013 MAXIMUM OPERATING TEMP (°C) : 115-130 FLAMMABILITY (UL94) : V2 DENSITY ( g//cm3) : 1.14 H2O ABSORPTION (%) : 1.5 BREAKAGE RESISTANCE (N//mm2) : 77 The connectors can also be stored at a minimum temperature not lower than - 40°C
New
50
8016692035352
PKC7508
