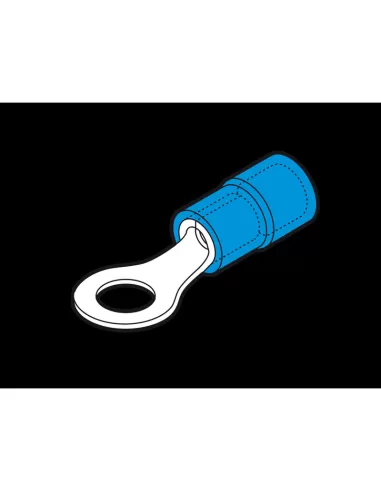

Cembre bf-m3.5 blue cable lug with 3.5mm screw eye

Article title: Cembre BF-M3.5 Blue Eyelet Terminal Screw 3.5mm

Description:

Increase your efficiency and safety with Cembre BF-M3.5 cable lugs. These blue eyelet lugs are designed to provide reliable, long-lasting performance in a wide range of electrical applications.

Made with Cu-ETP CWOO4A electrolytic copper compliant with the UNI EN 13599 standard, the cable lugs are characterized by a robust construction and surface protection by electrolytic tinning with a minimum thickness of 3µm. This ensures optimal corrosion resistance and excellent electrical conductivity.

PVC insulation jackets accompany the cable lugs, offering a number of key safety and durability benefits. With a dielectric strength of 35 KV//mm and a specific volume resistance of 1015 O//cm, the insulating jackets ensure reliable protection against short circuits and other possible risk situations.

The main features of insulation blouses include:

• Maximum operating temperature: 80°C, allowing reliable operation even in demanding thermal conditions.
• Flammability (UL-94): Class V0, ensuring superior fire resistance and greater safety.
• Density: 1.4 g//cm3, offering structural strength and reliable protection against physical damage.
• Water absorption (%): 0.1÷0.6, maintaining performance even in humid or humid environments.
• Breaking strength (N//mm2): 45÷50, ensuring optimal durability and resistance to mechanical stress.

These connectors can be safely stored even at extreme temperatures, with a minimum storage temperature of no lower than -40°C. This ensures that they are ready for use in any environmental conditions.

Choose Cembre BF-M3.5 cable lugs for a reliable and safe solution for your electrical connection needs.
