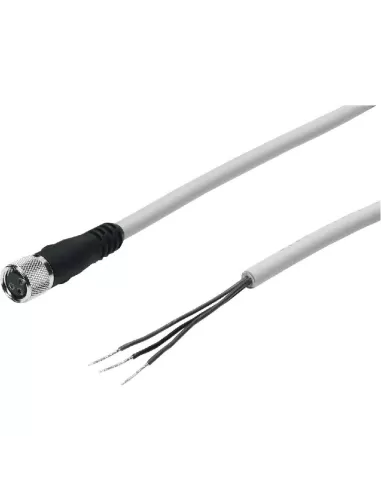

Festo 159421 connection cable sim-m8-3gd-5-pu

Complies with standard EN 61076-2-104 EN 61984 Electrical connection 3-pole//3-wire Female connector straight//open end M8x1//- Symbol 00991871 Operating voltage range DC 0 V 60 V Operating voltage range AC 0 V 60 V Rated current at 40°C 4 A Surge immunity 1 5 kV Cable length 5 m Cable characteristics Standard Cable test conditions Flexural strength: according to Festo standard Test conditions on request Cable carrier: 5 million cycles, bending radius 75 mm Cable diameter 3 8 mm Cable structure 3 x 0.25 mm² Nominal conductor cross-section 0 25 mm² Color code of wire insulation Blue Brown Black Degree of protection IP65 IP68 Ambient temperature -25 °C 80 ° C Ambient temperature with moving cable -5 °C 80 °C CE marking (see declaration of conformity) Compliant EU Low Voltage Directive Compliant with EU RoHS Directive Note on materials Compliant with EU Directive 2002//95 (RoHS) Halogen-free Free of ester phosphoric acid Pollution degree 3 Corrosion resistance class CRC 2 - Moderate corrosion stress Cable sheath material TPE-U(PU) Cable sheath color gray Body material TPE-U(PU) Body color Black Ferrule material Brass Nickel-plated brass Seal material NBR Electrical contact material Gold-plated brass Insulating sheath material PP
